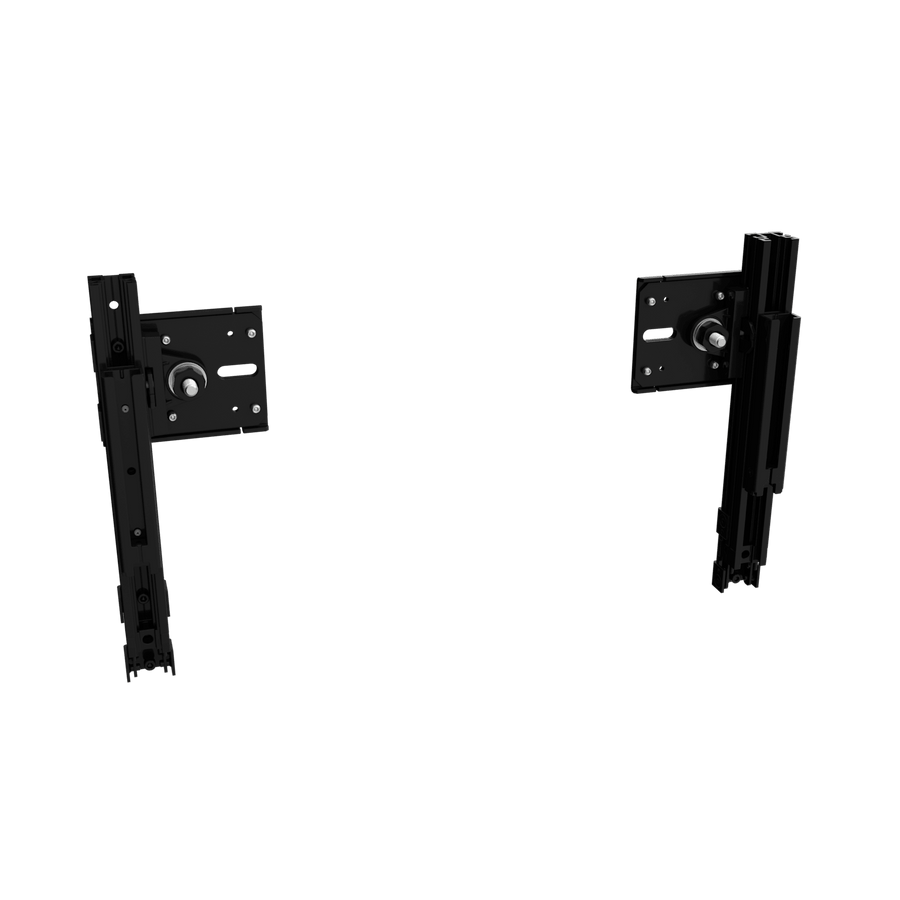

Chief DVM0250U1E TiLED® dvLED Universal 250mm, 1 High Extender
Universal extender for 250mm-tall dvLED panels, featuring full X-Y-Z axis adjustability for precision alignment
The Chief DVM0250U1E is a TiLED® dvLED Universal Extender designed to facilitate the scalable construction of modular video walls. This single-panel extender is engineered for use with 250mm-tall dvLED panels, serving as a critical component for building the vertical height of a display system. It integrates into the TiLED® series to allow installers to achieve a perfectly flat, level surface, even when working with uneven installation surfaces. Using patented floating button-capture technology and universal mounting hardware, this extender provides precision alignment through full X-Y-Z axis adjustability, including macro and micro-adjustments. This capability is essential for maintaining pixel-perfect uniformity in high-resolution displays with pixel pitches below 1 mm. The DVM0250U1E is TAA compliant and designed for use in both landscape and portrait orientations. To build a complete vertical wall, this extender is used in conjunction with starter mounts which form the base of the installation.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Lateral Shift | 0.68 in (1.7 cm) |
| Manual Height Adjustment | 2 in (50.8 mm) |
| Minimum Depth | 2 in (5.1 cm) |
| Number of Panels | 1 |
| Size | 250/500/750/1000mm Class |
| Typical Screen Size | 250mm-tall dvLED Panels |
| Wall Stud Compatibility | Meant for plywood-reinforced walls |
| Weight Capacity | 250 lbs (113.4 kg) |
All other specifications 12
| Accessory Type | InstallationMounting Brackets |
| Adjustability | FixedHeight AdjustableLateral ShiftMicro-Adjustable |
| Adjustments | .625" |
| Application | Wall |
| Color | Black |
| Orientation | Landscape or Portrait |
| Product Type | Extender |
| Solution Type | Universal |
| Special Features | LED Video WallModularMulti-DisplaySecurityStacked |
| TAA Compliant | Yes |
| UPC | 841872178660 |
| Certifications | TAA |
Resources
You'll need these with it
Select Series PDU with RackLink™, 2 Outlet
RLNK-215$429.30
TiLED® dvLED Universal Installation Spacer Tool
DVA700$200.00
TiLED® dvLED Universal M12 Mounting Button Kit, 25 panels
DVAM12-25$380.00
TiLED® dvLED Universal Capture H-Block Kit, Pair
DVAHBKITComing soon
TiLED® dvLED Universal M6 Mounting Button Kit, 1 panel
DVAM6-1$15.20
TiLED® dvLED Universal M12 Mounting Button Kit, 1 panel
DVAM12-1$15.20
TiLED® dvLED Universal M8 Mounting Button Kit, 10 panels
DVAM8-10$152.00
TiLED® dvLED Universal M6 Mounting Button Kit, 25 panels
DVAM6-25$380.00
TiLED® dvLED Universal M6 Mounting Button Kit, 10 panels
DVAM6-10$152.00
TiLED® dvLED Universal M12 Mounting Button Kit, 10 panels
DVAM12-10$152.00
TiLED® dvLED Universal M8 Mounting Button Kit, 25 panels
DVAM8-25$380.00
TiLED® dvLED Universal M8 Mounting Button Kit, 1 panel
DVAM8-1$15.20
Verified fitment
Questions about this part
Will the DVM0250U1E fit my dvLED panels?
Yes, this extender is verified against 121 display models from 5 manufacturers, including Absen K V3 Series, Philips 22BDL7219L, and Unilumin Umate LM Series.
What is required to start a new video wall installation?
You must start with Chief TiLED starter mounts to form the base, then add extenders like the DVM0250U1E to reach your required height.
How does this mount handle uneven wall surfaces?
It features 3-axis adjustability (X, Y, and Z) and double-depth adjustments, including micro-adjustments, to ensure a perfectly flat video wall.
What other accessories are needed for installation?
Installation may require TiLED® dvLED Universal M12, M10, M8, M6, or M5 Mounting Button Kits depending on the specific panel requirements.
Is this mount suitable for portrait orientation?
Yes, the DVM0250U1E is designed to support both landscape and portrait orientations for modular dvLED displays.
