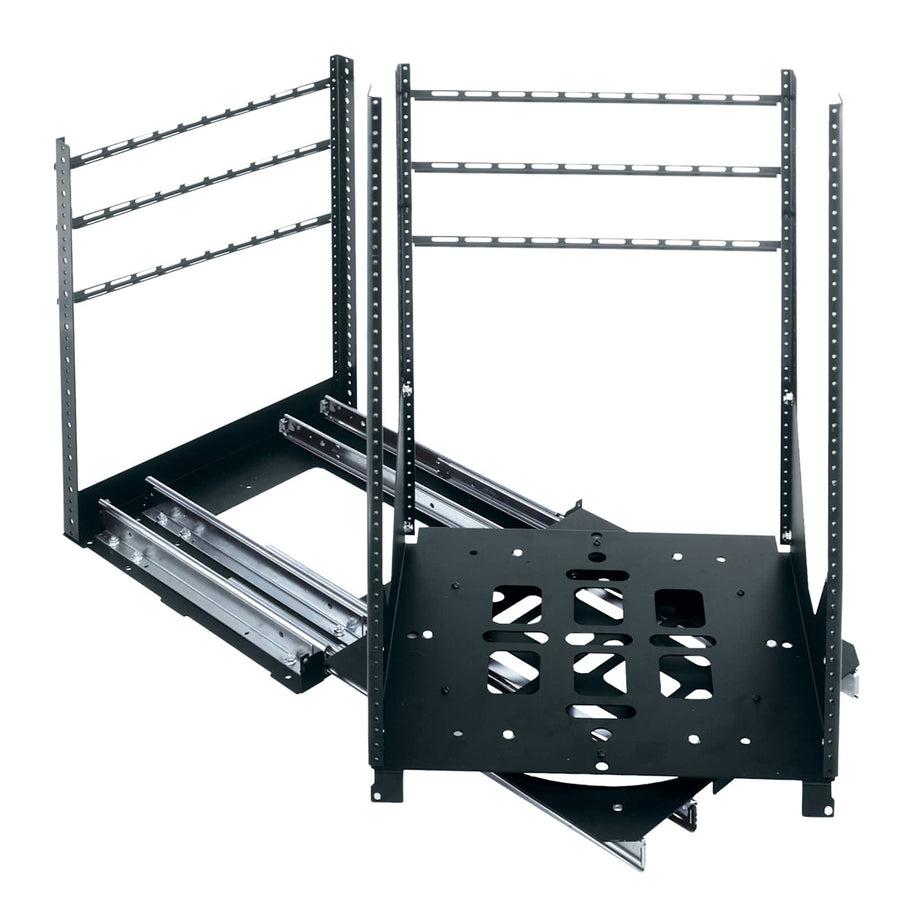

SRSR Series Slide Out Rotating Rail System Rack - SRSR-4-28
28 RU rotating rack system with 90-degree rotation for easy rear access in millwork or cabinets
The Middle Atlantic SRSR-4-28 is a 28 RU slide-out rotating rack system designed to provide easy rear access to equipment connections within millwork, cabinets, and flush in-wall installations. This system is particularly effective for smaller installations where space is limited, as the equipment bay rotates 90 degrees in either direction to allow technicians to service connections without removing the hardware from the enclosure. The SRSR-4-28 features a 19.13" width and a total height of 52", offering a usable height of 49" and a usable depth of 17.25". The rack is constructed with a black flat powder coat finish and includes standard 10-32 threaded front and rear rackrails with marked spaces. For secure installation, the rotating equipment bay can lock at 0°, 60°, and 90° angles, and the bay itself locks in the extended position. This TAA-compliant system has a weight capacity of 250 lbs (113.4 kg). To facilitate integration, the removable rack frame allows for in-shop assembly before the final on-site installation.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 19.14 in (48.6 cm) |
| Height | 52 in (132.1 cm) |
| Rack Units | 28 RU |
| Usable Depth | 17.25 in (43.8 cm) |
| Usable Height | 49 in (124.5 cm) |
| Weight Capacity | 250 lbs (113.4 kg) |
| Width | 19.13 in (48.6 cm) |
| Color | Black |
All other specifications 7
| Federal Ops Country of Origin | USA |
| Finish | Flat Powder Coat |
| Rack Rail Type | 10-32 |
| Rack Type | In-Cabinet |
| TAA Compliant | YesYes |
| UPC | 656747069253 |
| Certifications | TAA |
Resources
You'll need these with it
Select Series PDU with RackLink™, 2 Outlet
RLNK-215$429.30
USC Universal Sequencing Controller 1 Space Sequencing Controller
USC-6R$1,044.90
Select Series UPS Backup Power Systems - UPS-SRBP-500
UPS-SRBP-500$351.00
MPR Module 15A, Controlled Stand-Alone
RLM-15-1CA$288.00
MPR Power Module 30A, L5-30R Twistlock
RLM30-L530-1$763.20
MPR Power Module 20A, L5-20R Twistlock
RLM30-L520-1$716.40
MPR Module 20A, Controlled Stand-Alone
RLM-20-1CA$306.00
Rackmount Power, 6 Outlet Control, 9 Outlet, 15A, & 2-Stage Surge Protection
PDC-915R-6$462.60
Rackmount Power, 2 Outlet Control, 9 Outlet, 15A, & 2-Stage Surge Protection
PDC-915R-2$462.60
35 RU to 40 RU Forward Full Height Utility Light, White with Dimmer & IR Sensor - 1 Pair
FWD-LT-UTL-35-40-D$450.90
3 RU Rack Vent Panel, Slotted with 20% Open Area
VTP-3$69.30
Questions about this part
Will the SRSR-4-28 fit in a standard cabinet or wall installation?
Yes, this in-cabinet rack system is designed for millwork, cabinets, and flush in-wall installations. Its 19.13" width and 52" height accommodate various enclosure types.
How much weight can I mount in the SRSR-4-28?
The SRSR-4-28 has a total weight capacity of 250 lbs (113.4 kg). A rear cable support works with the rear rackrail to assist with cable management for these loads.
What is the difference between the SRSR series and a fixed rack?
The SRSR series provides a rotating equipment bay that can lock at 0°, 60°, and 90° for easy servicing. This provides rear access to connections that is otherwise impossible in flush-mounted cabinets.
Which accessories are compatible with this 28 RU rack?
Compatible accessories include the Select Series PDU with RackLink™ (RLNK-215), various Vent Panels like the VTF1 or VTP-1, and Wide Unit Shelf Systems like the WUSS11-5.
Is the SRSR-4-28 TAA compliant?
Yes, the SRSR-4-28 is TAA compliant and is manufactured in the USA.
