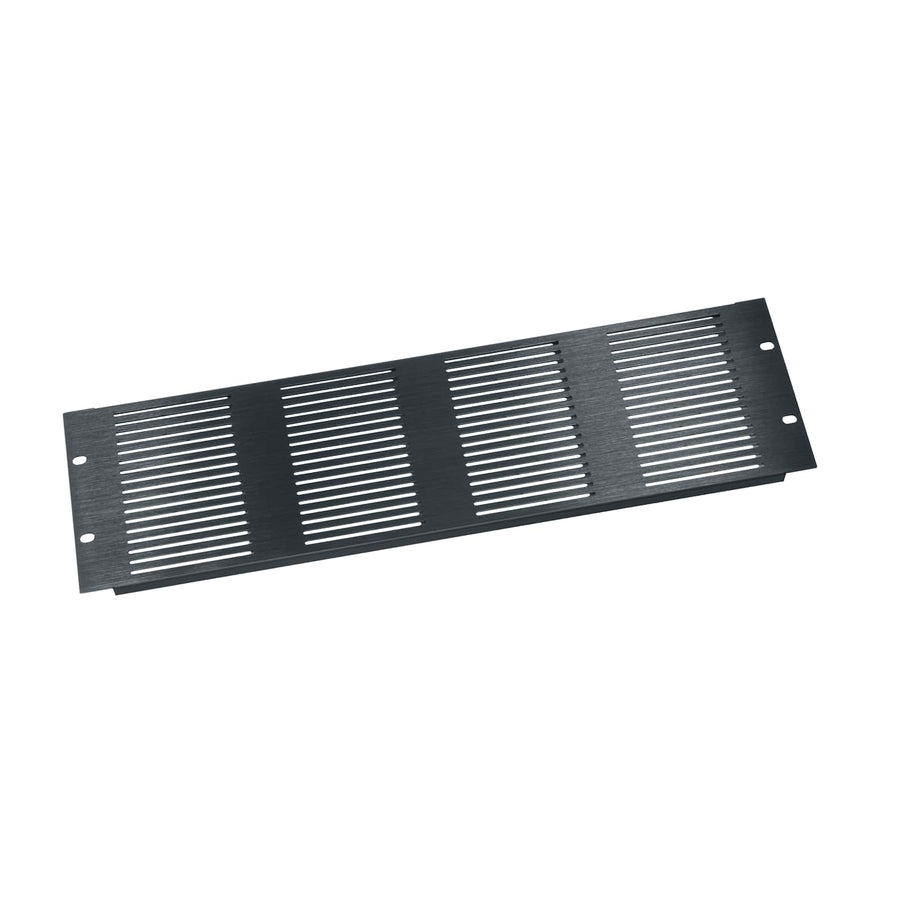

3 RU Rack Vent Panel, Slotted with 20% Open Area
3 RU vented rack panel with a 20% open area and black brushed and anodized finish
The Middle Atlantic VTP-3 is a 3 RU vented rack panel designed to facilitate airflow within a rack enclosure. This flanged panel features a horizontal slotted design with a 20% open area to assist in heat dissipation for mounted equipment. Constructed from aluminum, the panel is finished in black brushed and anodized, allowing it to complement RSH Series rackshelves and other anodized accessories within a professional installation. The 19 in (48.3 cm) panel width and 5.25 in (13.3 cm) height allow for standard integration into 19-inch rack systems. This specific VTP-3 model is a non-hinged panel with two mounting points, providing a stable solution for thermal management in high-density equipment environments.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 0.51 in (1.3 cm) |
| Height | 5.25 in (13.3 cm) |
| Package Count | 1 |
| Panel Width | 19 in (48.3 cm) |
| Rack Units | 3 RU |
| Shipping Weight | 0.55 lbs (0.3 kg) |
| Vent Open Area Percentage | 20 % |
| Width | 19 in (48.3 cm) |
All other specifications 6
| Finish | Brushed and Anodized |
| Hinged | No |
| Light Blocking | No |
| Mounting Points | 2 |
| Style | Flanged |
| UPC | 656747023866 |
Resources
Questions about this part
What is the airflow capacity of the VTP-3?
The VTP-3 features a slotted vent design that provides a 20% open area to assist with equipment cooling.
Will this panel match my existing RSH Series shelves?
Yes, this panel features a black brushed and anodized finish intended to complement RSH Series rackshelves and other anodized accessories.
Is the VTP-3 suitable for TAA compliant projects?
Yes, this product is TAA compliant.
Does this panel include a hinge mechanism?
No, the VTP-3 is a fixed flanged panel and is not hinged.
How many RU does this panel occupy in a rack?
This panel is designed to occupy 3 RU of vertical rack space.
