35 RU to 40 RU Forward Full Height Utility Light, White with Dimmer & IR Sensor - 1 Pair
Full-height white utility lighting pair for 35–40 RU enclosures, featuring integrated IR sensors and dimming control

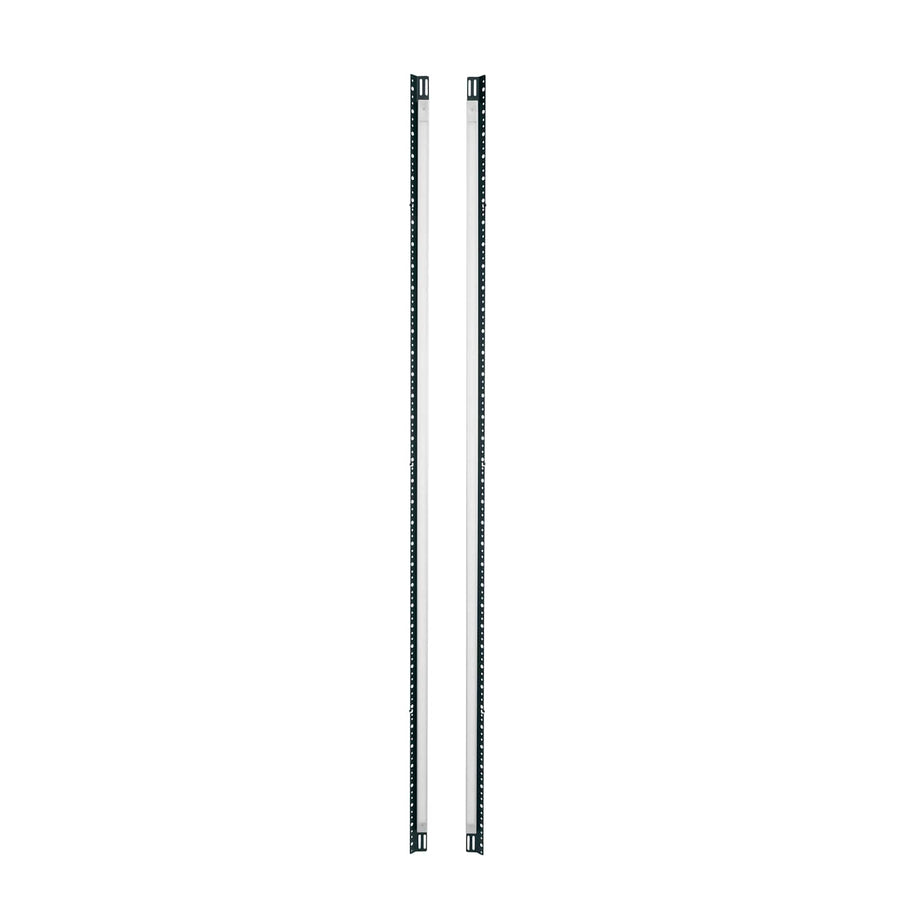

The FWD-LT-UTL-35-40-D provides full-height illumination for 35 RU to 40 RU enclosures, ensuring high visibility for technicians working inside dark racks. This pair of bright white lights is fixed at a 45º angle to face into the enclosure, providing optimal light distribution. Installation is streamlined for BGR Series enclosures using Lever Lock™ compatible rackrail brackets for tool-free mounting. For automated operation, the set includes an IR sensor that triggers the lights when the enclosure door is opened. Users can also adjust the light intensity via the included dimmer. This kit is TAA compliant and includes a UP1 panel for mounting the IR/dimming module on the rackrail, alongside all necessary hardware for installation in other Middle Atlantic enclosures.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Depth | 1.46 in (3.7 cm) |
| Height | 63.5 in (161.3 cm) |
| Product Weight | 18 lbs (8.2 kg) |
| Rack Units | 37 RU |
| Shipping Weight | 15 lbs (6.8 kg) |
| Width | 23 in (58.4 cm) |
| Color | Black and Silver |
| Mounting Hardware Included | Yes |
| Special Features | ForwardInstallation Time Savers |
| UPC | 656747384462 |
Resources
Questions about this part
How do I install these lights in a BGR Series enclosure?
In a BGR Series enclosure, you can use the Lever Lock™ compatible rackrail brackets for a quick, tool-free installation.
What is included in the FWD-LT-UTL-35-40-D kit?
This kit includes two full-height lights, an IR sensor, a dimmer, a UP1 panel for mounting the module, and all necessary hardware.
Can I control the brightness of the utility lights?
Yes, the kit includes an integrated dimmer that allows you to set the light brightness to your preference.
Does this lighting kit support automatic operation?
Yes, the included IR sensor allows for automatic on/off operation whenever the enclosure door is opened.
Which Middle Atlantic documents are available for submittals?
You can access the A&E Specification Sheet, CAD Technical Specification Drawings, and the Instruction Sheet via the Resources tab.
