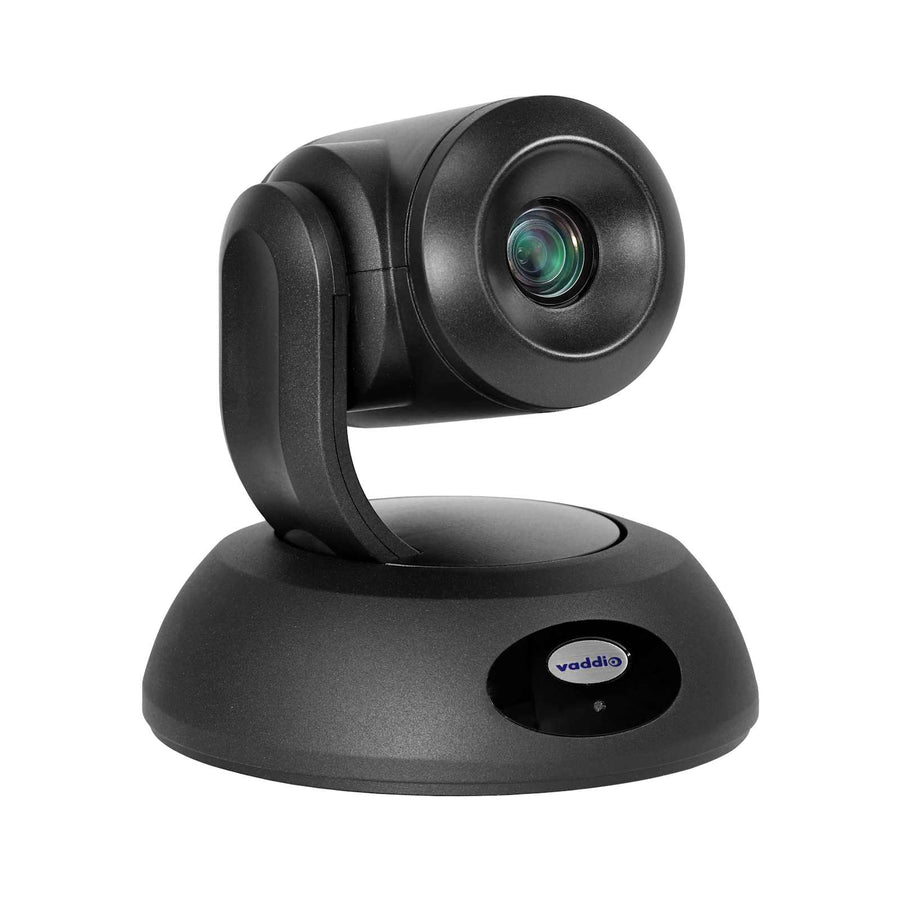

RoboSHOT 30E USB PTZ Camera
High-performance PTZ camera with 30x total zoom, 1080p/60 resolution, and simultaneous USB, HDMI, and IP streaming outputs
The RoboSHOT 30E USB PTZ Camera is engineered to provide high-definition video for large conference rooms, lecture halls, and houses of worship. Featuring an 1/2.5-type Exmor R CMOS sensor, this camera produces striking 1080p at 60 fps even in low-light environments. Its advanced image signal processing delivers enhanced wide dynamic range to maintain detail in uneven lighting. The 30x total zoom includes a 20x optical zoom paired with Vaddio's IntelliZoom technology, which uses pattern recognition to maintain high resolution even at extreme digital magnification. For versatile deployment, the RoboSHOT 30E offers simultaneous outputs via HDMI, IP streaming (H.264 via RTSP or RTMP), and USB 3.0. This allows for immediate plug-and-play use with platforms like Microsoft Teams, Zoom Rooms, and Google Meet via a USB 3.0 connection. Remote management is facilitated through a built-in web-based user interface, supporting IP control via Telnet or RS232. This camera is TAA compliant and is certified for use with Barco ClickShare Conference systems.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 6.75 in (17.1 cm) |
| Height | 6.94 in (17.6 cm) |
| Operating Temperature | 32° to 104°F (0° to 40°C) |
| Product Weight | 4.85 lbs (2.2 kg) |
| Shipping Dimensions | 14" x 14" x 18" (355.6 x 355.6 x 457.2 mm) |
| Shipping Weight | 13 lbs (5.9 kg) |
| Width | 7.05 in (17.9 cm) |
| 3rd Party Control | RS232Telnet |
All other specifications 36
| Browser-based User Interface for Remote Control | Built-in |
| Camera Type | PTZ |
| Color | Black |
| Compatible With | Vaddio |
| Control Method | IR RemoteJoystickRS232TelnetTriggerWeb UI |
| Estimated Room Size | Large RoomMedium Room |
| Field of View | 70.2° Wide End to 4.1° Tele End |
| Field of View Wide | Greater than 70 |
| Focus System | AutoManual |
| Gain | AutoManual |
| Image Sensor Type | 1/2.5-type Exmor R CMOS sensor |
| Invertible | Yes |
| Manufacturer | Vaddio |
| Max Resolution | 1080p 60 |
| Minimum Illumination | 1 Lux (F1.6) |
| OneLINK Compatibility | No |
| Output Ports | HDMIIP StreamingUSB 3.0 Type B |
| Pan and Tilt Range | Pan: ±150°Tilt: +90° to -30° |
| Pan and Tilt Speed | 0.35°/sec - 120°/sec |
| Pixels | 8.51 Megapixel |
| Power Cord | US Cord |
| Power Supply | PoE+ Midspan Power Injector |
| Power Type | PoE+ |
| Preset Positions | 16 Custom Home Position |
| PTZ Motors | Silent BLDC Direct Drive Motors |
| Quick-Connect Compatibility | No |
| Signal Type | HDMIIP StreamingRS 232USB 3.0 |
| Solution Type | Camera Only |
| Special Features | Vaddio Special Offer |
| TAA Compliant | Yes |
| Tri-Sync Motion | Yes |
| UPC | 840077503246 |
| White Balance | AutoManualOne Push |
| Zoom | 30x zoom, 20x optical zoom + 10x IntelliZoom |
| Certifications | CECertified for Barco ClickShare ConferenceFCCTAA |
| Warranty | 3 years |
Resources
You'll need these with it
Superbooster® 4-Port USB over Cat6a Extender Kit - USB 3.2 Gen1 (5Gbps)
C2G54265$766.99
PoE+ Midspan Power Injector
451-0400-055$187.20
DomeVIEW HD Indoor Flush Dome Enclosure for RoboSHOT and HD-Series PTZ Cameras
998-9000-200$1,002.60
DomeVIEW HD Outdoor Pendant Dome Enclosure for RoboSHOT and HD-Series PTZ Cameras
998-9200-200$1,205.10
DomeVIEW HD Indoor Pendant Dome Enclosure for RoboSHOT and HD-Series PTZ Cameras
998-9100-200$1,002.60
Offset Drop-Down Mount for RoboSHOT and HD-Series PTZ Cameras
535-2000-296$443.70
Superbooster® 1-Port USB over Cat6a Box to Box Extender Kit - USB 3.2 Gen1 (5Gbps)
C2G54266$681.99
Superbooster® 1-Port USB over Cat6a Wall Plate to Box Extender Kit - USB 3.2 Gen1 (5Gbps)
C2G54267$681.99
Superbooster® 1-Port USB over Cat6a Wall Plate to Wall Plate Extender Kit - USB 3.2 Gen1 (5Gbps)
C2G54268$681.99
RoboSHOT 12E USB HD PTZ Camera
999-99200-000$3,150.00
Suspended Ceiling Mount for Vaddio Cameras
535-2000-206$141.30
Vaddio Device Controller
999-42300-000$855.00
Questions about this part
Will the RoboSHOT 30E work with my conferencing software?
Yes, it offers plug-and-play simplicity with popular platforms including Zoom Rooms, Microsoft Teams, and Google Meet via the USB 3.0 connection.
What video outputs are available on the RoboSHOT 30E?
The camera provides simultaneous outputs through HDMI, IP streaming (H.264 format), and USB 3.0 Type B for versatile signal routing.
Does this camera include a mounting solution and power supply?
The package includes a thin profile black wall mount with hardware and a PoE+ Midspan Power Injector.
How can I control the camera remotely?
You can manage the camera via a built-in web-based user interface over an IP network, or through RS232, Telnet, or the included IR Remote Commander.
What is the difference between optical and IntelliZoom?
The unit features a 20x optical zoom for traditional magnification and an additional 10x IntelliZoom to enhance digital zoom without losing image resolution.
