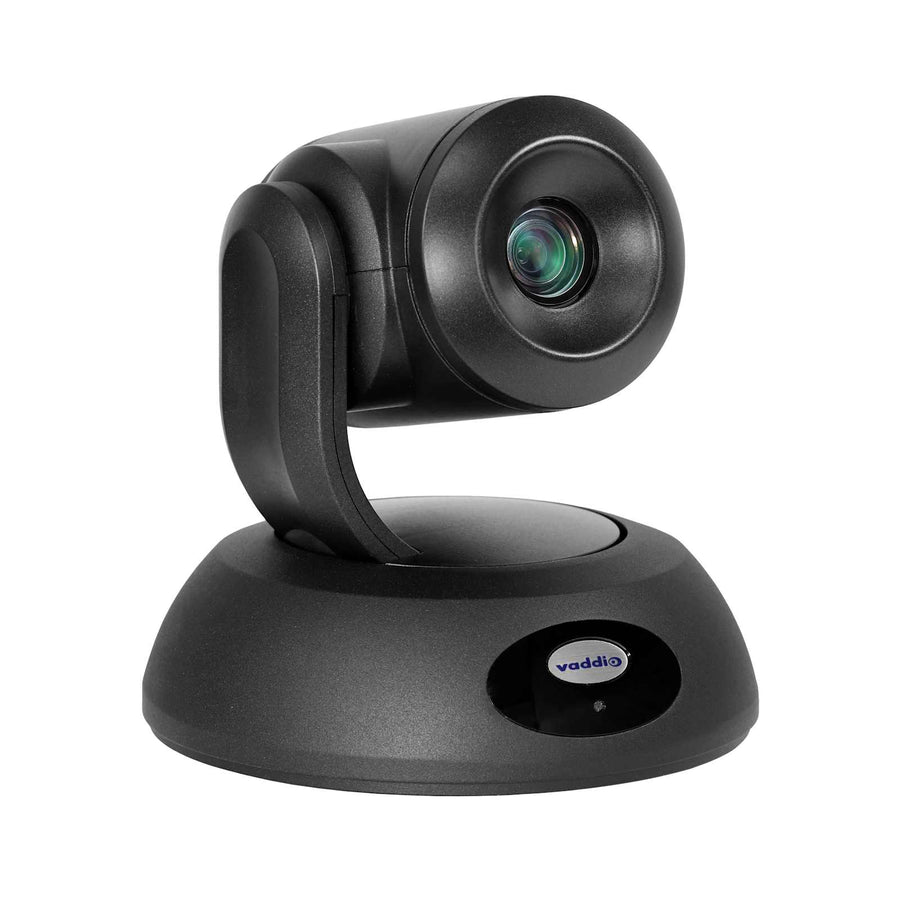

RoboSHOT 12E USB HD PTZ Camera
12x PTZ camera featuring simultaneous USB 3.0, HDMI, and IP H.264 streaming for small to medium conference or classroom environments
The RoboSHOT 12E USB HD PTZ Camera is a professional-grade solution engineered for small to medium rooms, such as conference rooms, classrooms, and training spaces. It utilizes an 1/2.5-type Exmor R CMOS sensor to deliver high-definition 1080p at 60 fps video, even in challenging lighting conditions with a minimum illumination requirement of 1 Lux (F1.6). This Elite Series model provides incredible versatility by supporting simultaneous outputs via HDMI, IP streaming (H.264 via RTSP or RTMP), and uncompressed USB 3.0. This unit features 12x optical zoom and a wide-angle field of view starting at 70.2°. Movement is handled by silent BLDC direct drive motors, supporting a pan range of ±150° and a tilt range from +90° to -30°. The camera incorporates Vaddio's Tri-Sync Motion technology, ensuring all three axes move simultaneously for fluid, natural motion. For remote deployment, the integrated web-based user interface allows for management over an IP network. This TAA-compliant camera is also certified for use with Barco ClickShare Conference systems.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 6.75 in (17.1 cm) |
| Height | 6.94 in (17.6 cm) |
| Operating Temperature | 32° to 104°F (0° to 40°C) |
| Product Weight | 4.85 lbs (2.2 kg) |
| Shipping Dimensions | 14" x 14" x 18" (355.6 x 355.6 x 457.2 mm) |
| Shipping Weight | 13 lbs (5.9 kg) |
| Width | 7.05 in (17.9 cm) |
| 3rd Party Control | RS232Telnet |
All other specifications 36
| Browser-based User Interface for Remote Control | Built-in |
| Camera Type | PTZ |
| Color | Black |
| Compatible With | Vaddio |
| Control Method | IR RemoteJoystickRS232TelnetTriggerWeb UI |
| Estimated Room Size | Medium RoomSmall Room |
| Field of View | 70.2° Wide End to 4.1° Tele End |
| Field of View Wide | Greater than 70 |
| Focus System | AutoManual |
| Gain | AutoManual |
| Image Sensor Type | 1/2.5-type Exmor R CMOS sensor |
| Invertible | Yes |
| Manufacturer | Vaddio |
| Max Resolution | 1080p 60 |
| Minimum Illumination | 1 Lux (F1.6) |
| OneLINK Compatibility | No |
| Output Ports | HDMIIP StreamingUSB 3.0 Type B |
| Pan and Tilt Range | Pan: ±150°Tilt: +90° to -30° |
| Pan and Tilt Speed | 0.35°/sec - 120°/sec |
| Pixels | 8.51 Megapixel |
| Power Cord | US Cord |
| Power Supply | PoE+ Midspan Power Injector |
| Power Type | PoE+ |
| Preset Positions | 16 Custom Home Position |
| PTZ Motors | Silent BLDC Direct Drive Motors |
| Quick-Connect Compatibility | No |
| Signal Type | HDMIIP StreamingRS 232USB 3.0 |
| Solution Type | Camera Only |
| Special Features | Vaddio Special Offer |
| TAA Compliant | Yes |
| Tri-Sync Motion | Yes |
| UPC | 840077506131 |
| White Balance | AutoManualOne Push |
| Zoom | 12x |
| Certifications | CECertified for Barco ClickShare ConferenceFCCTAA |
| Warranty | 3 years |
Resources
You'll need these with it
PoE+ Midspan Power Injector
451-0400-055$187.20
DomeVIEW HD Indoor Flush Dome Enclosure for RoboSHOT and HD-Series PTZ Cameras
998-9000-200$1,002.60
DomeVIEW HD Outdoor Pendant Dome Enclosure for RoboSHOT and HD-Series PTZ Cameras
998-9200-200$1,205.10
DomeVIEW HD Indoor Pendant Dome Enclosure for RoboSHOT and HD-Series PTZ Cameras
998-9100-200$1,002.60
Offset Drop-Down Mount for RoboSHOT and HD-Series PTZ Cameras
535-2000-296$443.70
Superbooster® 1-Port USB over Cat6a Box to Box Extender Kit - USB 3.2 Gen1 (5Gbps)
C2G54266$681.99

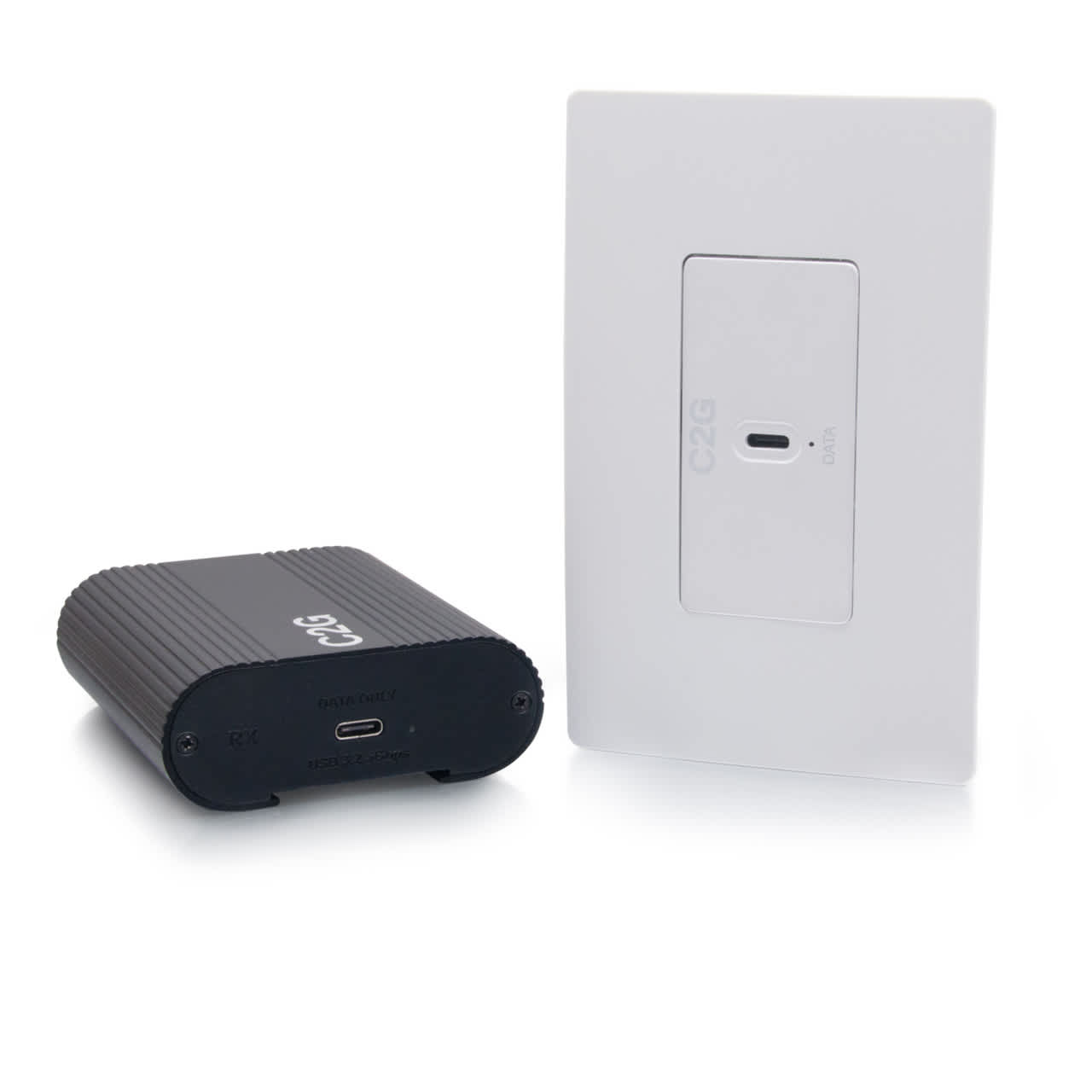

Superbooster® 1-Port USB over Cat6a Wall Plate to Box Extender Kit - USB 3.2 Gen1 (5Gbps)
C2G54267$681.99
Superbooster® 1-Port USB over Cat6a Wall Plate to Wall Plate Extender Kit - USB 3.2 Gen1 (5Gbps)
C2G54268$681.99
Superbooster® 4-Port USB over Cat6a Extender Kit - USB 3.2 Gen1 (5Gbps)
C2G54265$766.99
Suspended Ceiling Mount for Vaddio Cameras
535-2000-206$141.30
Vaddio Device Controller
999-42300-000$855.00
IN-Wall Enclosure for RoboSHOT PTZ Cameras
999-2225-118$351.90
Questions about this part
Does the RoboSHOT 12E support simultaneous streaming?
Yes, it supports simultaneous HDMI, IP streaming (H.264), and USB 3.0 Type B streaming.
What is the field of view for the RoboSHOT 12E?
The camera features a 70.2° wide end to a 4.1° tele end field of view.
What mounting and power options are available?
This SKU includes a PoE+ Midspan Power Injector and a thin profile wall mount.
Is the RoboSHOT 12E TAA compliant?
Yes, this camera is TAA compliant and certified for Barco ClickShare Conference.
How can I remotely control the camera settings?
Control is available via an IR Remote, Joystick, RS232, Telnet, Trigger, or the built-in Web UI.
