Offset Drop-Down Mount for RoboSHOT and HD-Series PTZ Cameras
Ceiling-mounted offset drop-down for Vaddio RoboSHOT and HD-Series PTZ cameras, extending 24 inches below the ceiling
The Vaddio 535-2000-296 is an offset drop-down mount designed specifically for professional ceiling installations. This heavy gauge steel construction allows an installer to position PTZ cameras away from the ceiling surface to achieve a better field of view. The mount extends approximately 24 in (61 cm) below the ceiling, providing significant vertical clearance for the camera. It is specifically compatible with the Vaddio RoboSHOT 12/12E and 30/30E series, ConferenceSHOT AV, ConferenceSHOT FX, ConferenceSHOT 10, and EasyIP 10 and 2 models. It is also compatible with various Vaddio HD-series PTZ cameras. This TAA compliant mounting solution is a 9 lbs (4.1 kg) component that requires a ceiling application for secure installation. For complex residential or specialized commercial installs, other mounting options exist, such as the 535-2020-230 Thin Profile Wall Mount Bracket or the 999-2225-050 In-Ceiling Half Recessed Enclosure.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 9.5 in (24.1 cm) |
| Height | 24 in (61 cm) |
| Product Weight | 9 lbs (4.1 kg) |
| Shipping Dimensions | 28" x 14" x 10" (711.2 x 355.6 x 254 mm) |
| Shipping Weight | 14 lbs (6.4 kg) |
| Width | 6.75 in (17.1 cm) |
| Application | Ceiling |
| Color | Black |
All other specifications 5
| Compatible With | Vaddio |
| TAA Compliant | Yes |
| UPC | 840077500450 |
| Certifications | CEFCCTAA |
| Warranty | 3 years |
Resources
You'll need these with it
Suspended Ceiling Mount for Vaddio Cameras
535-2000-206$141.30

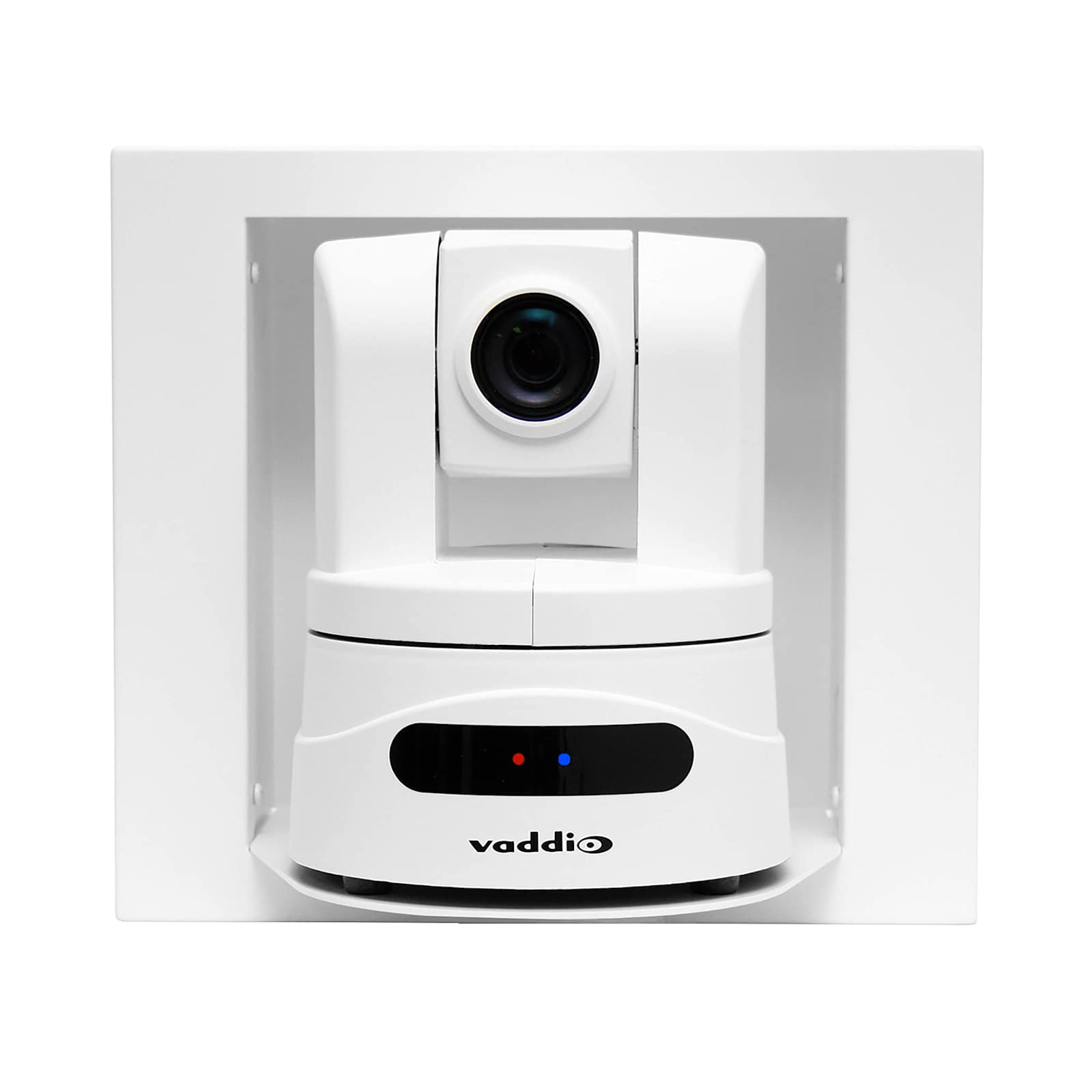

IN-Wall Enclosure for ClearVIEW/PowerVIEW HD-Series Cameras
999-2225-018$351.90
Thin Profile Wall Mount Bracket for Vaddio HD-Series Cameras
535-2020-230$177.30
IN-Ceiling Half Recessed Enclosure for Vaddio HD-Series PTZ Cameras
999-2225-050Discontinued
Verified fitment
Questions about this part
Which Vaddio cameras will this mount fit?
This mount is compatible with RoboSHOT 12/12E and 30/30E, ConferenceSHOT AV, ConferenceSHOT FX, ConferenceSHOT 10, EasyIP 10 and 2, and Vaddio HD-series PTZ cameras.
How far down does the camera drop from the ceiling?
The offset drop-down extends approximately 24 in (61 cm) below the ceiling line.
Is this mount TAA compliant?
Yes, this mount is TAA compliant and carries CE and FCC certifications.
What is the difference between this and a wall mount?
While this is a ceiling application mount, Vaddio also offers the 535-2020-230 Thin Profile Wall Mount Bracket for wall-based installations.
What do I need for submittals regarding this mount?
You can download the Vaddio Drop-Down Mount Installation Guide (PDF) or the technical specification PDF for your project submittals.
