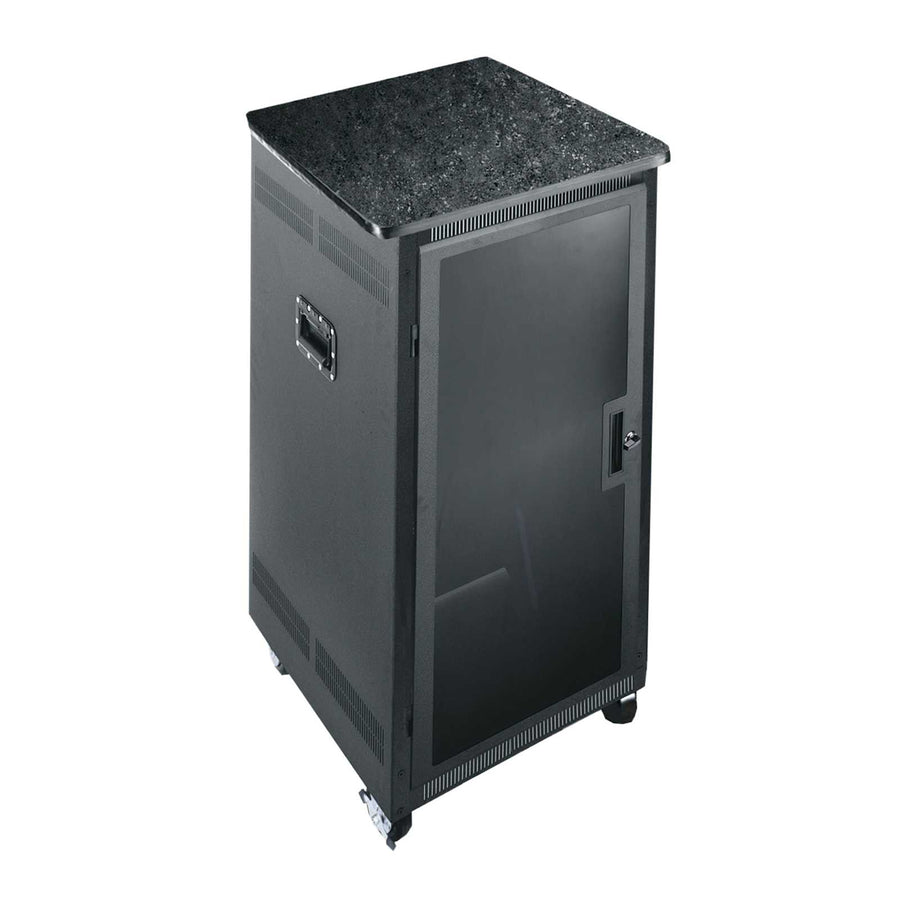

PTRK Series Portable Rolling Rack - PTRK-2726MDK
27 RU portable rolling rack with 500 lbs capacity, keylocked security doors, and a graphite-marbled laminate top
The PTRK-2726MDK is a 27 RU portable rolling rack designed for environments where rugged mobility and equipment security are required. This unit features a fully welded steel construction that supports a weight capacity of 500 lbs (226.8 kg). For transport, it is equipped with heavy-duty commercial grade locking casters and spring-loaded recessed side handles. Security is managed through standard keylocked front and rear doors, and the front door features a plexiglass panel. The rack includes a graphite-marbled wood laminate top and is built with vented side panels for passive thermal management. The rear door contains laser knockouts to accommodate fans, such as the KO-WSB3 blank panel kit or the KO-AWFP2 rear door fan kit. For cable management, the bottom of the rack includes slots for strain relief and securing equipment. This TAA compliant, USA-made rack utilizes standard 10-32 threaded rackrails for front adjustable mounting.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 27.91 in (70.9 cm) |
| Height | 57.52 in (146.1 cm) |
| Rack Units | 27 RU |
| Usable Depth | 24.5 in (62.2 cm) |
| Usable Height | 47.25 in (120 cm) |
| Weight Capacity | 500 lbs (226.8 kg) |
| Width | 27.91 in (70.9 cm) |
| Federal Ops Country of Origin | USA |
All other specifications 6
| Monitor Mounting | Yes |
| Rack Rail Type | 10-32 |
| TAA Compliant | Yes |
| UPC | 656747071454 |
| Wood Laminate Top | Yes |
| Certifications | TAA |
Resources
You'll need these with it
100 CFM Fan Panel, Textured
QTFP-2$243.00
1 RU BlowerPanel, 100 CFM, 32dB
QBP-2$581.40
Select Series PDU with RackLink™, 2 Outlet
RLNK-215$429.30
KO Series Rear Door Fan Kit, 190 CFM
KO-AWFP2$252.90

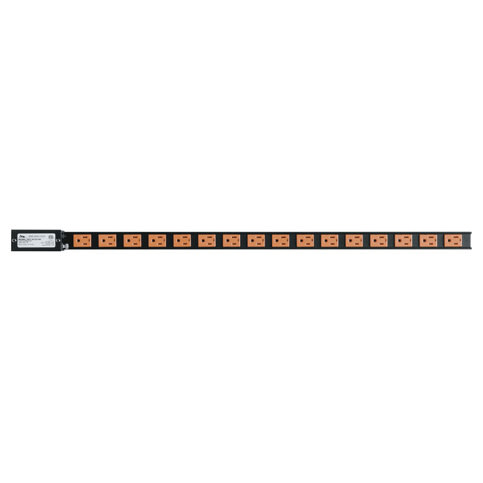

PDT Low Profile Vertical Power Strip, 16 Outlet, 15A
PDT-1615C-NS$308.70
Rackmount Power, 9 Outlet, 15A, Basic Surge Protection - 20 ft Cord
PD-915RC-20$264.60
PDT Low Profile Vertical Power Strip, 10 Outlet, 15A
PDT-1015C-NS$253.80

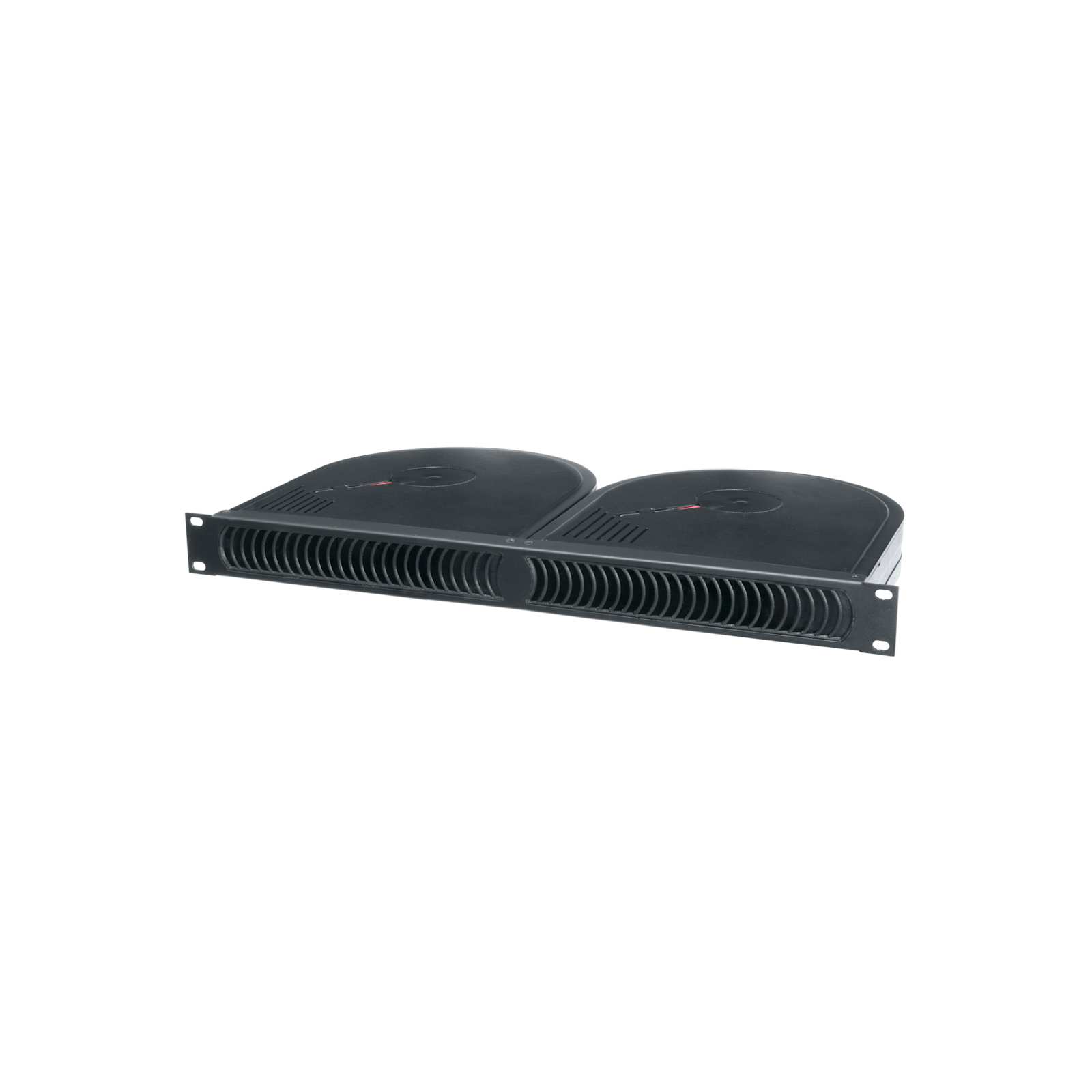

1 RU BlowerPanel, 100 CFM, 32dB & Anodized
QBP-2A$640.80
27 RU Rackrail 10-32 for PTRK Series
PTRK-RR27$105.30
3 RU Rackmount Drawer, Black Brushed and Anodized with Lock
D3LK$365.40
KO Series Rear Door Blank Panel Kit
KO-WSB3$61.20
Select Series PDT Low Profile Vertical Power Strip with Dual Circuit, 10 Outlet, 20A Hardwired
PDT-2X520$418.50
Questions about this part
What is the usable space inside the PTRK-2726MDK?
This 27 RU rack provides a usable height of 47.25 in (120 cm) and a usable depth of 24.5 in (62.2 cm).
Can I install cooling fans in this rack?
Yes, the rear door features laser knockouts that accept fan kits, such as the KO-WSB3 rear door blank panel kit or the KO-AWFP2 190 CFM fan kit.
What accessories are needed for power and cable management?
You can add power via the PD-915RC-20 or PDT-1015C-NS, and manage cables using LACE-23-OWP or LACE-23-OP lace strips.
How secure is the equipment inside the rack?
The rack includes standard keylocked front and rear doors to secure your hardware during transport and storage.
Is this rack TAA compliant for government contracts?
Yes, the PTRK-2726MDK is TAA compliant and is manufactured in the USA.
