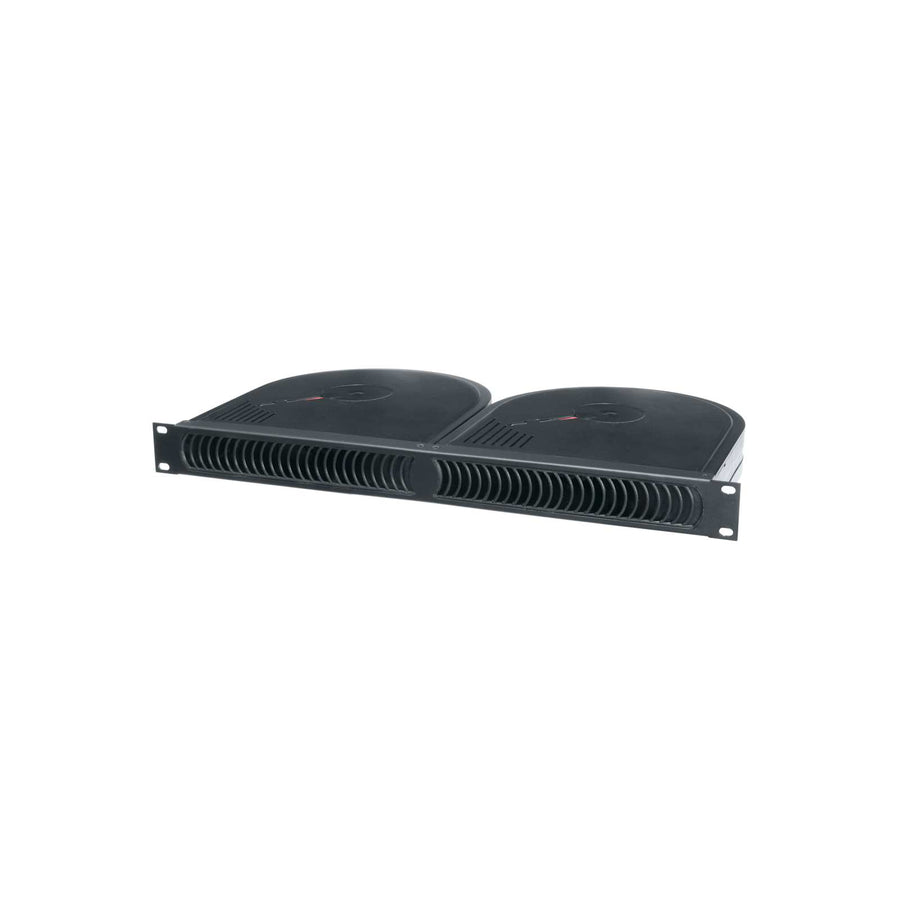

1 RU BlowerPanel, 100 CFM, 32dB & Anodized
1 RU active blower panel providing 100 CFM of airflow with 32dB quiet operation and proportional thermostatic control
The Middle Atlantic QBP-2A is a 1 RU active blower panel designed to provide efficient thermal management within a rack enclosure. This component type is an active solution that moves 100 CFM of air to prevent equipment overheating. It features a compact design that occupies only one rack unit in height, with a depth of 10.1 in (25.7 cm) and a width of 19 in (48.3 cm). The unit is UL Listed and features a brushed and anodized finish. To manage heat efficiently, the QBP-2A utilizes proportional thermostatic control, ensuring the blowers only run when needed to maintain optimal temperatures. The proprietary blowers are engineered with high static pressure to maintain consistent airflow across the equipment. This 120V AC input unit operates at 12 VDC to drive the cooling components, providing a quiet solution for high-density rack environments, producing only 32 dB at maximum output.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| AC Voltage Input | 120 |
| CFM | 100 |
| Depth | 10.1 in (25.7 cm) |
| Height | 1.75 in (4.4 cm) |
| Rack Units | 1 RU |
| Shipping Weight | 5.2 lbs (2.4 kg) |
| Volts DC | 12 VDC |
| Width | 19 in (48.3 cm) |
All other specifications 9
| Available Internationally | No |
| Component Type | Active |
| Finish | Brushed and Anodized |
| Manufacturer | Middle Atlantic |
| Mounting Points | 2 |
| Power Type | DC |
| TAA Compliant | No |
| UPC | 656747182235 |
| Certifications | UL Listed |
Resources
Questions about this part
How does the thermostatic control work on the QBP-2A?
The QBP-2A uses proportional thermostatic control, which means the blowers only run when the internal temperature requires it, optimizing power and noise levels.
Is the QBP-2A suitable for quiet environments like lecture halls or offices?
Yes, this blower panel is designed for quiet operation, producing only 32 dB at its maximum airflow of 100 CFM.
What are the physical dimensions of this 1 RU blower panel?
The unit has a width of 19 in (48.3 cm), a height of 1.75 in (4.4 cm), and a depth of 10.1 in (25.7 cm).
What power requirements are needed for the QBP-2A?
The unit requires a 120V AC input and operates using 12 VDC for the blower components.
What documentation is available for the QBP-2A for submittals?
You can access the QBP Series Instruction Sheet for installation or the QBP Series Quiet Blower Panel CAD Technical Specification Drawings for submittal packages.
