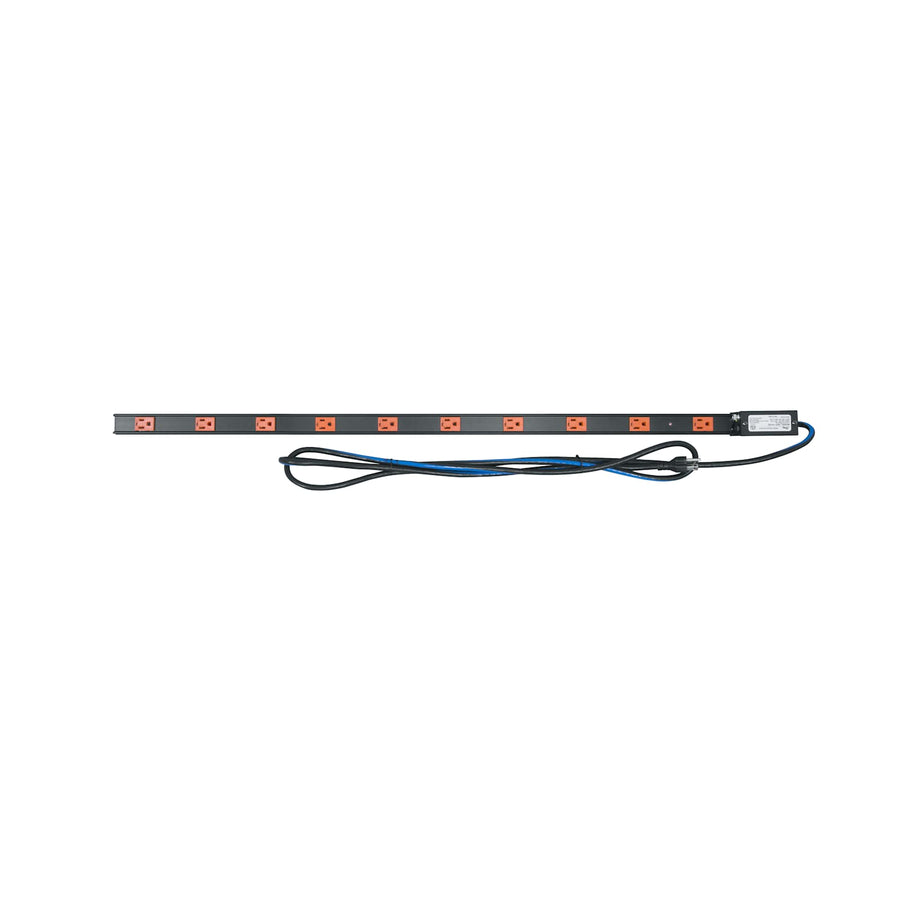

PDT Low Profile Vertical Power Strip, 10 Outlet, 15A
10-outlet vertical power strip with a slim 1.58" width and 9 ft SignalSAFE corded cable
The PDT-1015C-NS is a low-profile vertical power strip designed to increase outlet density in racks without consuming valuable rack units. This 15 Amp, 120 VAC unit features a thin chassis with a width of 1.58 in (4 cm) and a depth of 2.1 in (5.3 cm), allowing it to be mounted unobtrusively in the rear of a rack. This placement ensures power is accessible immediately adjacent to the equipment requiring it. This corded model utilizes a SignalSAFE wire to help minimize potential interference from AC magnetic fields generated by other equipment within the rack. Installation is efficient using the included mounting hardware that allows the PDU to snap directly into place on any style of Middle Atlantic rack rail brackets. This ETL Listed strip features 10 outlets on a single circuit and arrives with a 9 ft (2.7 m) 5-15P plug cord.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Amps | 15 Amp |
| Cord Length | 9 ft (2.7 m) |
| Depth | 2.1 in (5.3 cm) |
| Height | 38.09 in (96.8 cm) |
| Shipping Weight | 3.6 lbs (1.6 kg) |
| Volts AC | 120 VAC |
| Width | 1.58 in (4 cm) |
| Cable Type | Corded |
All other specifications 7
| Finish | Black Anodized |
| Local Meter | No |
| Number of Circuits | 1 |
| Outlet Count | 10 |
| Plug Type | 5-15P |
| UPC | 656747065354 |
| Certifications | ETL Listed |
Resources
Questions about this part
What is the mounting requirement for the PDT-1015C-NS?
This unit is designed to snap into any style of Middle Atlantic rack rail brackets using the included hardware.
How does the SignalSAFE wire help with interference?
The corded 9 ft (2.7 m) model uses SignalSAFE wire to help minimize potential interference from AC magnetic fields produced by other equipment in the rack.
Will this power strip fit in a tight rack space?
Yes, the slim chassis is only 1.58 in (4 cm) wide and 2.1 in (5.3 cm) deep, making it ideal for high-density vertical mounting.
Is there documentation available for submittals?
Yes, the PDT Series Instruction Sheet and 3 Part Specification documents are available for technical review.
What is the plug type for this power strip?
The PDT-1015C-NS features a standard 5-15P plug type on its 9 ft (2.7 m) cord.
