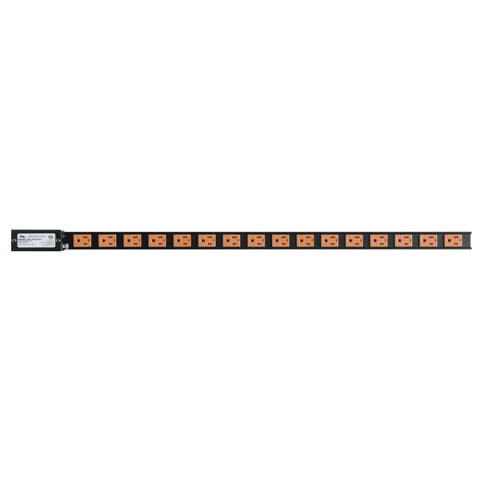

PDT Low Profile Vertical Power Strip, 16 Outlet, 15A
Low profile 16-outlet vertical power strip with a 9 ft corded SignalSAFE wire for space-saving rack mounting
The PDT-1615C-NS provides 16 outlets in a highly compact footprint, designed to expand power capacity without consuming valuable rack space. This low-profile vertical power strip features a thin 2.1 in (5.3 cm) depth and a 1.58 in (4 cm) width, allowing it to mount unobtrusively in the rear of a rack. This proximity ensures power outlets are located directly next to the equipment requiring them. This corded model utilizes SignalSAFE™ wire technology, which is engineered to minimize potential interference from AC magnetic fields generated by other equipment in the rack. The unit includes mounting hardware that allows it to snap into place quickly, and the reusable clips facilitate an efficient installation. The 15 Amp, 120 VAC strip features a 5-15P plug and a 9 ft (2.7 m) cord length for flexible placement.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Amps | 15 Amp |
| Cord Length | 9 ft (2.7 m) |
| Depth | 2.1 in (5.3 cm) |
| Height | 33.88 in (86.1 cm) |
| Volts AC | 120 VAC |
| Width | 1.58 in (4 cm) |
| Cable Type | Corded |
| Finish | Black Anodized |
All other specifications 6
| Local Meter | No |
| Number of Circuits | 1 |
| Outlet Count | 16 |
| Plug Type | 5-15P |
| UPC | 656747118487 |
| Certifications | ETL Listed |
Resources
Questions about this part
Will the PDT-1615C-NS fit in my existing Middle Atlantic rack?
Yes, this PDT series strip is designed to mount to every style of Middle Atlantic rack rail brackets using the included snap-in hardware.
How do I install the PDT-1615C-NS in my rack?
Installation is quick using the included mounting hardware; the PDU snaps onto the rails and uses reusable clips for easy attachment.
Does this power strip help reduce electromagnetic interference?
This corded model features SignalSAFE™ wire, which helps minimize potential interference from AC magnetic fields within the rack.
What is the power capacity of the PDT-1615C-NS?
This 120 VAC unit provides 16 outlets and is rated for 15 Amps on a single circuit.
Which document should I use for a submittal?
For technical submittals, you can refer to the PDT Series Thin Power Distribution A&E Specification Sheet or the CAD Technical Specification Drawings available in the resources.
