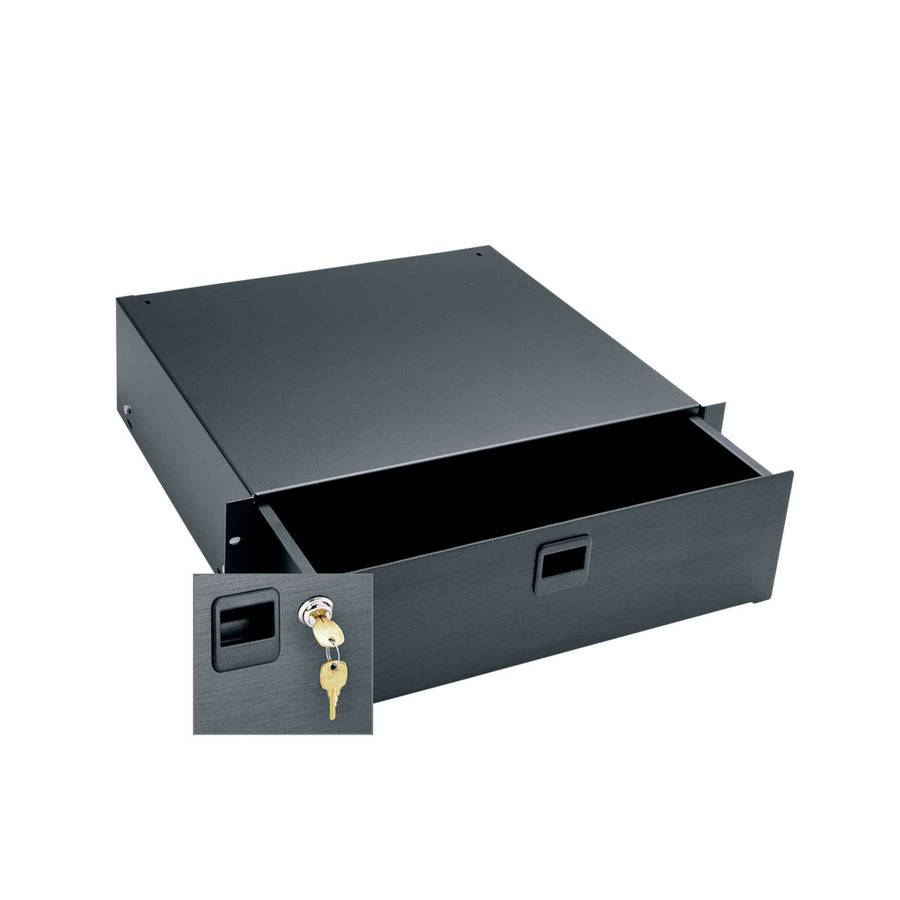

3 RU Rackmount Drawer, Black Brushed and Anodized with Lock
3 RU heavy-duty steel storage drawer with black brushed and anodized finish and integrated keylock
The Middle Atlantic D3LK is a 3 RU rackmount drawer from the D-TD Heavy Duty Series designed for secure equipment organization. This rugged steel storage solution features a black brushed and anodized face finish and comes equipped with a spring-loaded latch and an installed keylock for controlled access. It is constructed with a 15-5/8" width and 14-1/2" depth to maximize internal usable space. For cable management, the unit includes a rear cable grommet. This drawer carries a 50 lb. (22.7 kg) UL load capacity. To protect sensitive components, it ships with a drawer mat included. For those requiring additional cushioning, the FI-3 3 RU Foam Drawer Insert is a compatible accessory.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Depth | 15.56 in (39.5 cm) |
| Height | 5.25 in (13.3 cm) |
| Product Weight | 12.37 lbs (5.6 kg) |
| Rack Units | 3 RU |
| Shipping Weight | 17.94 lbs (8.1 kg) |
| UL Load Capacity | 50 lbs (22.7 kg) |
| Width | 19 in (48.3 cm) |
| Finish | Brushed and Anodized |
| Lock | Yes |
| Material | Steel |
| Mounting Points | 2 |
| UPC | 656747004483 |
Resources
You'll need these with it
Questions about this part
What is the weight capacity of the D3LK drawer?
The D3LK has a UL load capacity of 50 lbs (22.7 kg).
Does this drawer include a way to secure the contents?
Yes, the D3LK features a spring-loaded latch with an installed keylock for secure access.
What are the internal dimensions for cable management?
The drawer is 15-5/8" wide by 14-1/2" deep and includes a rear cable grommet for routing wires.
Can I add foam protection to the interior?
Yes, the FI-3 3 RU Foam Drawer Insert is designed to be used with this drawer.
What is the difference between this and the textured black version?
This SKU features a brushed and anodized finish, whereas other versions in the series may feature a textured black powder coat.
