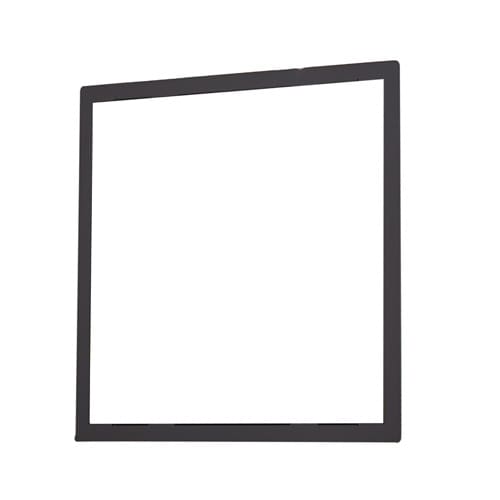

Proximity® Black Flange Kit for PAC526
Black flange kit for PAC526 Proximity in-wall storage boxes, providing a trimmed finish for drywall mounting applications
The Chief PAC526F-KIT is a black flange kit designed to provide an aesthetic, trimmed appearance for existing PAC526 in-wall box installations. This accessory enables drywall mounting capability, ensuring a professional finish that sits flush with the wall surface. The kit is engineered for both pre-construction and post-construction installation scenarios. It features a universal hole pattern and patented Lever Lock™ plates to simplify the mounting of small devices. For increased flexibility, additional PACL2 Lever Lock™ plates can be purchased separately. The black zinc-plated Lever Lock™ plates are designed to be grounded to the in-wall box via the spring-loaded lever for electrical safety. This kit is UL 2416 Listed for installing AV, IT, and Communication Technology Equipment and is TAA compliant.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 0.49 in (1.2 cm) |
| Height | 15.51 in (39.4 cm) |
| Overall Dimensions | 15.51" x 15.4" x .49" (394 x 391 x 12 mm) |
| Shipping Weight | 2.86 lbs (1.3 kg) |
| Weight Capacity | 10 lbs (4.5 kg) |
| Width | 15.4 in (39.1 cm) |
| Accessory Type | In-Wall |
| Application | In-Wall |
All other specifications 6
| Color | Black |
| Flange Color | Black |
| Special Features | Flanges |
| TAA Compliant | Yes |
| UPC | 841872161457 |
| Certifications | TAAUL Listed |
Resources
You'll need these with it
Medium Thinstall™ Dual Swing Arm Wall Display Mount - 25 Inch Extension
TS325TU$519.20
Large Thinstall™ Dual Swing Arm Wall Display Mount - 25 Inch Extension
TS525TU$649.60
Large Fusion® Micro-Adjustable Fixed Wall Display Mount
LSM1U$247.20
Large Fusion® Fixed Wall Display Mount
LSA1U$186.40
Medium Thinstall™ Single Swing Arm Wall Display Mount - 18 Inch Extension
TS318SU$388.80
Medium Thinstall™ Dual Swing Arm Wall Display Mount - 18 Inch Extension
TS318TU$456.00
Medium Fusion® Micro-Adjustable Fixed Wall Mount
MSM1U$186.40
PNR2000B, Large Flat Panel Swing Arm Wall Mount - 25 Inch (without interface)
PNR2000B$756.80
Proximity® Lever Lock™ Plate for PAC526/PAC527L In-Wall Storage Box
PACL2$72.80
PNRUB, Large Flat Panel Swing Arm Wall Display Mount - 25 Inch Extension
PNRUB$886.40

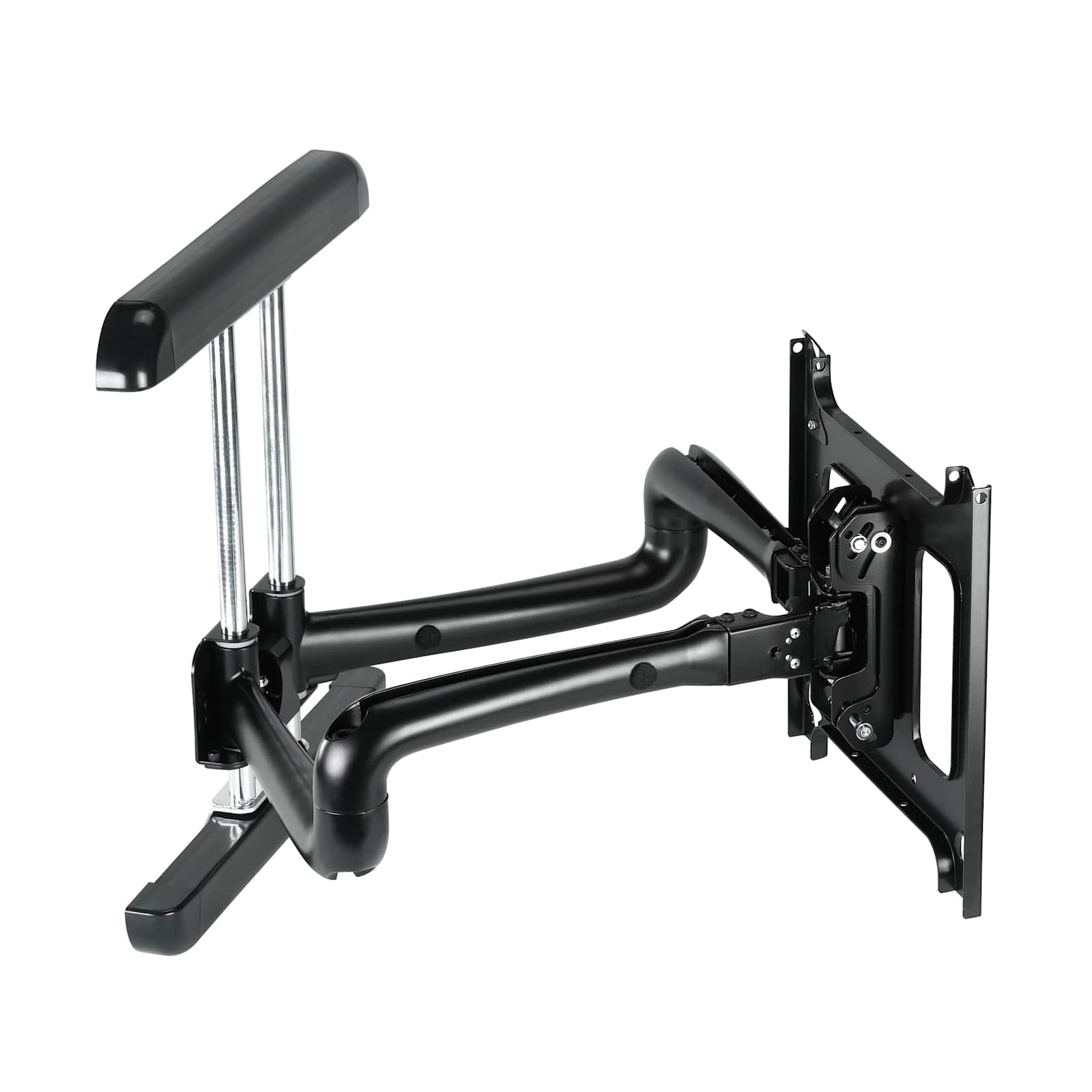

Large Flat Panel Swing Arm Wall Mount - 37 Inch (without interface)
PDR2000B$886.40
Large Flat Panel Swing Arm Wall Mount (Metal Studs)- 25 Inch -PWRSKUB
PWRSKUB$821.60
Questions about this part
Will this kit fit my existing PAC526 box?
Yes, the PAC526F-KIT is specifically designed to add a trimmed flange to an existing PAC526 in-wall box installation.
What mounting options are available for small devices?
The kit uses a patented universal hole pattern and Lever Lock™ plates. You can also purchase PACL2 Lever Lock™ plates separately for expanded mounting flexibility.
How do I ground the device within the wall box?
For electrical safety, the black zinc-plated Lever Lock™ plates can be grounded to the in-wall box through the spring-loaded lever.
What is the difference between the black and white flange kits?
This SKU is the black finish; for a white finish to blend into different environments, you would require the PAC527CVRW-KIT cover.
Does this kit include the conduit knockouts?
Yes, the enclosure includes knockouts for 1/2", 1", and 1 1/4" conduit, along with knockouts for single gang outlets.
