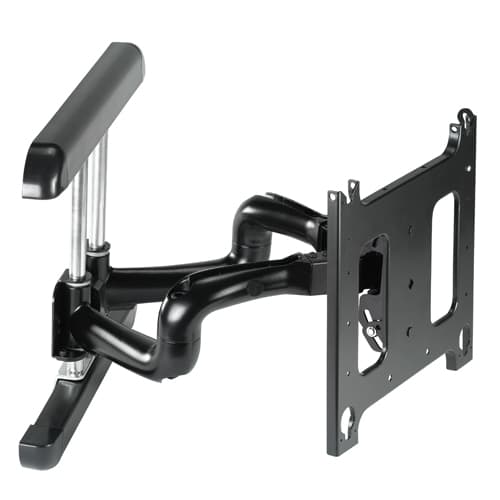

PNR2000B, Large Flat Panel Swing Arm Wall Mount - 25 Inch (without interface)
Large flat panel swing arm wall mount for 42"–86" displays, 200 lbs capacity, with 25" extension and lateral shift
The Chief PNR2000B is a large flat panel swing arm wall mount designed to provide high-degree adjustability for large-format displays. This mount supports a typical screen size range of 42"–86" (1067–2184 mm) and has a weight capacity of 200 lbs (90.7 kg). It features a 25" (635 mm) extension and a 9" (228.6 mm) lateral shift to ensure displays can be positioned at any angle. The Centris Fingertip Tilt mechanism allows installers to select the ideal tension for the screen's center of gravity, facilitating easier positioning. Integrated CableTrac System provides channeled management for routing cables, while the Q-Latch Mounting System enables quick, tool-free connection and disconnection of the flat panel. This model is UL Listed and supports both landscape and portrait orientations. Note that depth and extension measurements do not include the interface bracket, which adds an additional 0.5" to 1.5" to the total depth.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 3.3 in (8.4 cm) |
| Height | 21.2 in (53.9 cm) |
| Lateral Shift | 9 in (228.6 mm) |
| Minimum Depth | 3.25 in (8.3 cm) |
| Shipping Dimensions | 43" x 25.75" x 6.25" (109.2 x 65.4 x 15.9 cm) |
| Shipping Weight | 52-52 lbs (23.59-23.59 kg) |
| Typical Screen Size | 42"- 86" (1067mm - 2184mm) |
| Wall Stud Compatibility | 16" (406mm) |
All other specifications 13
| Weight Capacity | 200 lbs (90.7 kg) |
| Width | 27.1 in (68.8 cm) |
| Adjustability | Extension, Swivel, Tilt, Micro-Adjustable, Height Adjustable, Lateral Shift |
| Application | Wall |
| Color | Black |
| Orientation | LandscapePortrait |
| Post-Installation Leveling Roll | Yes |
| Solution Type | Custom |
| TAA Compliant | No |
| Tilt | +5° / -15° |
| UPC | 841872046396 |
| VESA Mounting Pattern | 200 x 200mm - 862 x 517mm |
| Certifications | UL Listed |
Resources
You'll need these with it
P-Series CPU/DVD/Media Player Adapter-PAC253
PAC253$272.00
P-Series CPU/DVD/Media Player Adapter-PAC252
PAC252$347.20
P-Series CPU/DVD/Media Player Adapter-PAC251
PAC251$309.60
PAC526, Large In-Wall Storage Box
PAC526$116.80
Proximity™ Component Storage Panel, Interface
CSMP9X12$52.00
PAC525, In-Wall Storage Box
PAC525$79.20
Center Channel Speaker Adapter-PACCC2
PACCC2$262.40
Video Conferencing Camera Shelf - 14 Inch
PAC716$179.20
P-Series Rotation Adapter
PAC400$320.80
Video Conferencing Camera Shelf – 9", for Extra-Large Displays
PAC810$190.40
Center Channel Speaker Adapter-PACCC1
PACCC1$153.60
Freestyle Flat Panel Rotation Adapter
FRA$341.60
Verified fitment
Questions about this part
Does the PNR2000B include the interface bracket?
No, the PNR2000B requires a PSB custom or universal interface purchased separately to function. The listed depth and extension values do not include the interface bracket, which adds 0.5" to 1.5".
Will this mount work with my specific display?
The PNR2000B is verified against 3,487 display models from 147 manufacturers. Examples include Samsung 320MP, Sony FWD32LX1, LG 32LC50C, and Panasonic EJMLA32EW.
Can I rotate the display from landscape to portrait?
Yes, the mount supports both orientations. To rotate the screen without removing it from the mount, you can use the PAC400 P-Series Rotation Adapter.
What mounting requirements are needed for installation?
This mount is designed for wall application and is compatible with 16" (406mm) wall stud spacing. It features a VESA mounting pattern ranging from 200 x 200mm to 862 x 517mm.
What tools are required for the installation process?
The PNR2000B features a Q-Latch Mounting System for easy, tool-free connection and disconnection of the display once the mount is installed.
