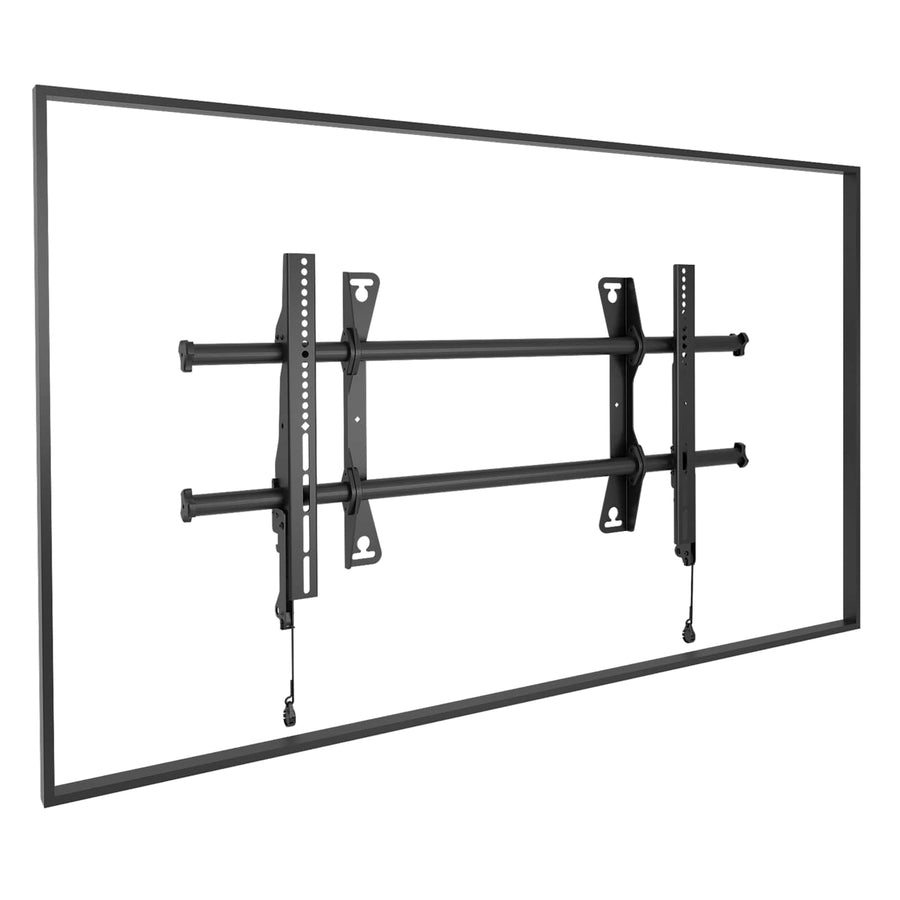

Large Fusion® Fixed Wall Display Mount
Universal fixed wall mount for 42"- 86" displays, 200 lbs capacity, with lateral shift and ClickConnect technology
The Chief LSA1U is a Large Fusion® Fixed Wall Display Mount engineered to provide a stable, low-profile installation for large-format displays. Designed for professional installers, this series features an upgraded design based on field observations to solve common installation challenges. The LSA1U supports displays from 42" to 86" (1067mm to 2184mm) with a weight capacity of 200 lbs (90.7 kg). Key installation features include an integrated teardrop design that allows for the pre-installation of bolts to the wall, and ClickConnect technology, which provides an audible click to confirm the screen is safely engaged. For post-installation adjustments, the Centerless Shift provides limitless lateral centering. The mount accommodates VESA patterns from 100 x 100mm up to 870 x 500mm and is compatible with wall stud spacing of 16" to 32" (406mm to 813mm). This unit is UL Listed and carries OSHPD pre-approval documentation. For enhanced cable management, a built-in cable stand provides easy access underneath the display.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 2 in (5.1 cm) |
| Height | 20.5 in (52.1 cm) |
| Overall Dimensions | 20.50 x 34.75 x 2" (521 x 883 x 51 mm) |
| Shipping Weight | 18.44 lbs (8.4 kg) |
| Typical Screen Size | 42"- 86" (1067mm - 2184mm) |
| Wall Stud Compatibility | 16" - 32" (406mm - 813mm) |
| Weight Capacity | 200 lbs (90.7 kg) |
| Width | 34.75 in (88.3 cm) |
All other specifications 9
| Adjustability | Fixed, Lateral Shift |
| Application | Wall |
| Color | Black |
| Orientation | Landscape |
| Solution Type | Universal |
| TAA Compliant | No |
| UPC | 841872163710 |
| VESA Mounting Pattern | 100 x 100mm - 870 x 500mm |
| Certifications | OSHPDUL Listed |
Resources
You'll need these with it
Fusion® 8 Inch Above/Below Shelf for Extra-Large Displays
FCA810$152.80
Fusion® Display Mount Accessory for Logitech® Rally Bar, Rally Bar Mini and Rally Bar Huddle
FCALRB1$233.60
Select Series PDU with RackLink™, 2 Outlet
RLNK-215$429.30
Proximity® In-wall Storage Box with 2 Receptacle Filter & Surge-PAC526FWP2
PAC526FWP2$397.60
FCA113 Fusion® CPU Extender Accessory
FCA113$239.20
PAC525FC, In-Wall Storage Box with Flange and Cover
PAC525FC$140.00
FCK008, Fusion® Connector Kit - 8 Inch
FCK008$50.40
FCK000, Fusion® Connector Union
FCK000$30.40
FCK016, Fusion® Connector Kit - 16 Inch
FCK016$63.20
Proximity™ Component Storage Panel, Interface
CSMP9X12$52.00
PAC526FC, Large In-Wall Storage Box with Flange and Cover
PAC526FC$200.80
Proximity® Component Storage Slide-Lock Panel
CSSLP15X10$195.20
Verified fitment
Questions about this part
Will the Chief LSA1U fit my display?
The LSA1U is verified against 6,908 display models from 345 manufacturers, including Samsung, LG, Sony, Panasonic, Philips, and Sharp, with a typical screen size of 42"- 86".
What tools are needed for the LSA1U installation?
Installers should refer to the LSA1U Installation Manual for the specific list of tools required to complete the mounting process.
What accessories can I add to the LSA1U mount?
You can install a full line of accessories, such as the FCA820 Fusion® Center Camera Shelf or the FCA810 8 Inch Above/Below Shelf, and the entire unit can be adjusted together.
How is the display adjusted once it is mounted?
The LSA1U provides lateral shift through its Centerless Shift feature and allows for easy cable access via a built-in cable stand.
Does this mount require specific wall backing?
The mount is compatible with wall stud spacing between 16" and 32" (406mm to 813mm).
