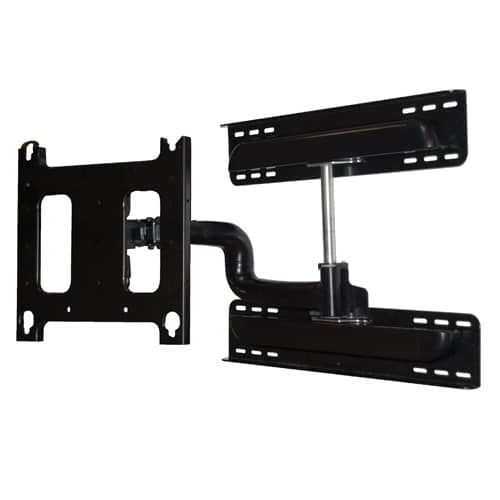

Large Flat Panel Swing Arm Wall Mount (Metal Studs)- 25 Inch -PWRSKUB
Large flat panel swing arm mount for 32"–65" displays, 100 lbs capacity, featuring a 25 inch extension and metal stud compatibility
The Chief PWRSKUB is a large flat panel swing arm wall mount specifically engineered for installations requiring metal studs. This mount supports displays from 32" to 65" (813mm - 1651mm) with a weight capacity of 100 lbs (45.4 kg). It provides a significant 25 inch extension from the wall, allowing the screen to be pulled forward for easy access, while maintaining a low profile in its home position. This SKU is part of the PWRSK series and is specifically designed for 16" (406mm) or 24" (610mm) metal stud spacing. Installation is simplified through the use of mounting guides and the Q-Latch Mounting System, which secures the flat panel to the mount using a latching flag. For cable management, the integrated CableTrac System facilitates efficient routing. Users can achieve precise positioning via integrated lateral shift (6" left and right, shipping shifted 2.5" to the left), swivel (up to 90° depending on screen size), and fingertip tilt adjustments of +5° / -15°. This TAA compliant solution allows for both landscape and portrait orientations. Note that depth and extension measurements do not include the interface bracket, which adds 0.5" to 1.5".
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 3.5 in (8.9 cm) |
| Height | 21.2 in (53.9 cm) |
| Minimum Depth | 3.38 in (8.6 cm) |
| Overall Dimensions | 21.2" x 27.0" x 3.5" (538 x 686 x 89mm) |
| Shipping Dimensions | 35" x 23.75" x 7.25" (889 x 603.3 x 184.2 mm) |
| Shipping Weight | 62 lbs (28.1 kg) |
| Typical Screen Size | 32" - 65" (813mm - 1651mm) |
| Wall Stud Compatibility | 16" (406mm)24" (610mm)Metal Studs |
All other specifications 13
| Weight Capacity | 100 lbs (45.4 kg) |
| Width | 27 in (68.6 cm) |
| Adjustability | ExtensionSwivelTilt |
| Application | Wall |
| Color | Black |
| Orientation | LandscapePortrait |
| Post-Installation Leveling Roll | Yes |
| Solution Type | Universal |
| TAA Compliant | Yes |
| Tilt | +5° / -15° |
| UPC | 841872104058 |
| VESA Mounting Pattern | 200 x 200mm - 862 x 517mm |
| Certifications | TAA |
Resources
You'll need these with it
P-Series CPU/DVD/Media Player Adapter-PAC253
PAC253$272.00
P-Series CPU/DVD/Media Player Adapter-PAC252
PAC252$347.20
P-Series CPU/DVD/Media Player Adapter-PAC251
PAC251$309.60
PAC526, Large In-Wall Storage Box
PAC526$116.80
PSBUB, P-Series Universal Interface Bracket
PSBUB$177.60
Proximity™ Component Storage Panel, Interface
CSMP9X12$52.00
900x600 VESA Interface Adapter Bracket
PSB2104$273.60
PAC525, In-Wall Storage Box
PAC525$79.20
Center Channel Speaker Adapter-PACCC2
PACCC2$262.40
Video Conferencing Camera Shelf - 14 Inch
PAC716$179.20
ClickConnect Padlock
PAC138$37.60
P-Series Rotation Adapter
PAC400$320.80
Verified fitment
Questions about this part
Will the Chief PWRSKUB fit my display?
This mount is verified against 4,172 display models from 169 manufacturers, including Samsung 460DRNS, Sony FW65BZ35F, LG 39LY560H, Philips 37HF7444, and TCL 48FD2700.
Can I use this mount in portrait orientation?
Yes, the mount supports both landscape and portrait orientations. For rotating a screen without removing it from the mount, you can use the PAC400 P-Series Rotation Adapter.
What extra hardware is needed for installation?
The PWRSKUB requires a P-Series Universal Interface Bracket, such as the PSBUB, to facilitate mounting the display to the arm.
How much clearance do I need for the swing arm?
The mount extends 25 inches from the wall, but the actual depth and extension measurements do not include the interface bracket, which adds between 0.5" and 1.5" to the total depth.
Is this mount suitable for metal stud construction?
Yes, the PWRSKUB is specifically designed for metal studs with either 16" (406mm) or 24" (610mm) spacing.
