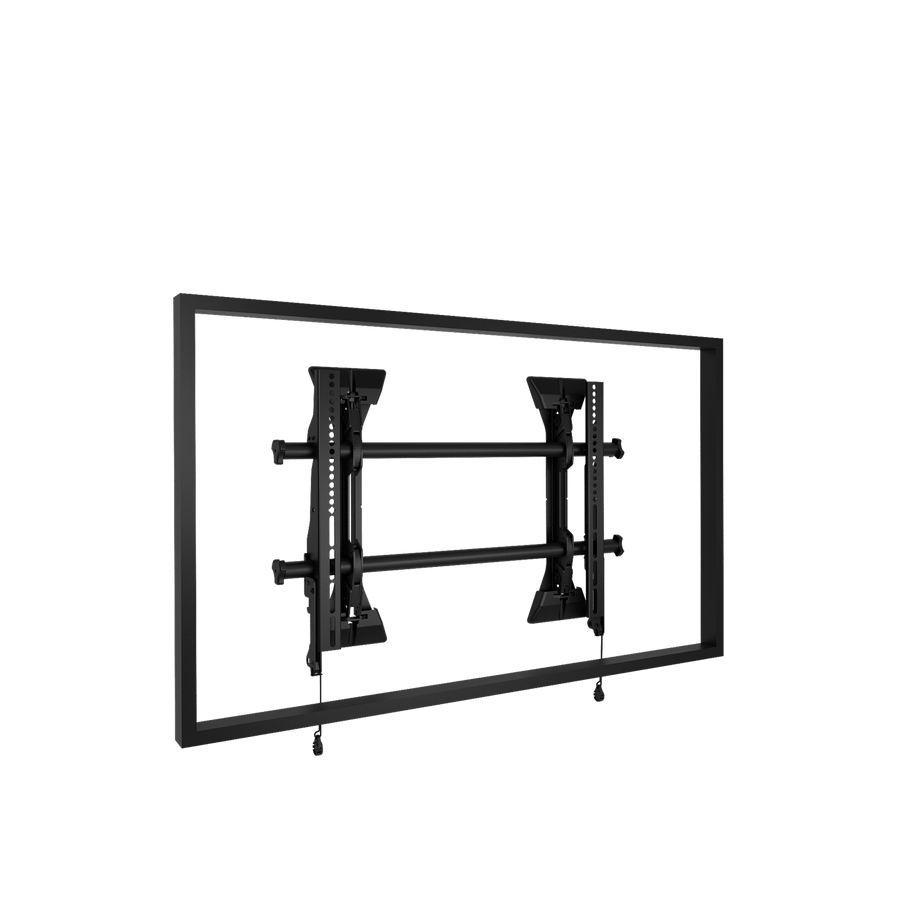

Medium Fusion® Micro-Adjustable Fixed Wall Mount
Medium fixed wall mount for 32"-65" displays, 125 lbs capacity, featuring micro-adjustability and lateral shift
The Chief MSM1U is a medium-profile Fusion® series fixed wall mount designed to solve common installation challenges for large-format displays. This universal solution supports a screen size range of 32" to 65" (813mm to 1651mm) and accommodates a VESA mounting pattern from 100 x 100mm to 642 x 400mm. With a 125 lbs (56.7 kg) weight capacity, it provides a stable, low-profile mounting solution for professional environments. The integrated teardrop design allows for faster installation by enabling the pre-installation of bolts to the wall, while the ClickConnect Latching system provides an audible click to confirm the screen is safely engaged. For post-installation precision, the mount features Centerless Shift for limitless lateral movement up to 12.9 in (32.8 cm) and Micro-Adjustable height settings. This mount is UL Listed and OSHPD certified. For enhanced security, set screws maintain rigidity throughout the installation lifecycle, and a built-in cable stand ensures easy access for cable management under the screen.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 2 in (5.1 cm) |
| Height | 17 in (43.2 cm) |
| Lateral Shift | 12.9 in (32.8 cm) |
| Shipping Dimensions | 31.1" x 18.63" x 2.86" (790 x 473.3 x 72.7 mm) |
| Shipping Weight | 16.75 lbs (7.6 kg) |
| Typical Screen Size | 32" - 65" (813mm - 1651mm) |
| Wall Stud Compatibility | 16" - 24" (406mm - 610mm) |
| Weight Capacity | 125 lbs (56.7 kg) |
All other specifications 10
| Width | 25.85 in (65.7 cm) |
| Adjustability | Fixed, Micro-Adjustable, Height Adjustable, Lateral Shift |
| Application | Wall |
| Color | Black |
| Orientation | Landscape |
| Solution Type | Universal |
| TAA Compliant | No |
| UPC | 841872163284 |
| VESA Mounting Pattern | 100 x 100mm - 642 x 400mm |
| Certifications | OSHPDUL Listed |
Resources
You'll need these with it
Proximity™ Component Storage Panel, Interface
CSMP9X12$52.00
Select Series PDU with RackLink™, 2 Outlet
RLNK-215$429.30
Fusion® Pull Out Accessory
FCAV1U$412.00
Proximity® Component Storage Slide-Lock Panel
CSSLP15X10$195.20
Fusion® Display Mount Accessory for Logitech® Rally Bar, Rally Bar Mini and Rally Bar Huddle
FCALRB1$233.60
FCA113 Fusion® CPU Extender Accessory
FCA113$239.20
FCA110 Fusion® CAT5/Surge/CPU Adapter
FCA110$27.20
PAC525FC, In-Wall Storage Box with Flange and Cover
PAC525FC$140.00
FCA112 Fusion® Secure CPU/Media Player Adapter
FCA112$111.20
Fusion® Side Cover Accessory
FCA106$130.40
FCK016, Fusion® Connector Kit - 16 Inch
FCK016$63.20
Proximity® In-wall Storage Box with 2 Receptacle Filter & Surge-PAC526FWP2
PAC526FWP2$397.60
Verified fitment
Questions about this part
Will the MSM1U fit my specific display?
The MSM1U is verified against 7,406 display models from 312 manufacturers. Examples of compatible models include Samsung 320MP, LG 26LC2, Panasonic EB8325, Toshiba 26A3000P, and Sharp 2T-C40FD2KF1FB.
How much lateral adjustment does the MSM1U offer?
This mount features Centerless Shift, which provides lateral shift of up to 12.9 in (32.8 cm) to allow for limitless centering after the display is mounted.
What installation tools are required for the MSM1U?
The MSM1U features a teardrop design for pre-installing bolts, but installers should ensure they have the necessary tools listed in the MSM1U installation manual for the specific wall type.
What accessories are compatible with the Fusion MSM1U?
You can enhance the mount with accessories like the FCA850 Side Camera Shelf, FCA870 Stackable Component Shelf, or the FCA112 Secure CPU/Media Player Adapter.
How does the MSM1U differ from other Fusion mounts?
As part of the Fusion® Wall-Fixed series, the MSM1U is a medium-sized variant specifically designed for the 32"-65" screen range, offering specific lateral shift and height adjustment capabilities.
