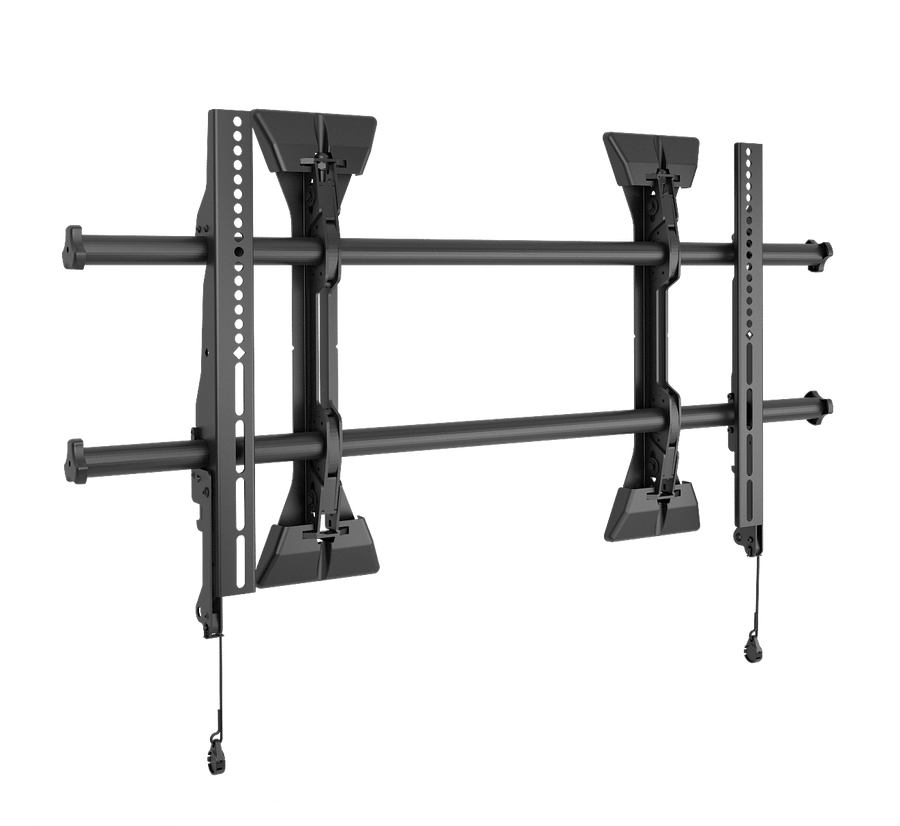

Large Fusion® Micro-Adjustable Fixed Wall Display Mount
Large fixed wall mount for 42"-86" displays with micro-adjustment, lateral shift, and 200 lbs capacity
The Chief LSM1U is a large-format, fixed wall mount designed for professional display installations requiring a low-profile aesthetic. It is engineered to support displays ranging from 42" to 86" with a weight capacity of 200 lbs (90.7 kg). This mount utilizes Centerless Shift technology, which allows for limitless lateral centering of the screen after it has been mounted to the wall. The integration of ClickConnect Latching provides an audible confirmation when the display is safely engaged, while ControlZone leveling adjustment ensures a perfectly straight installation. For installers, the integrated teardrop design facilitates faster installation by allowing bolts to be pre-installed to the wall. The LSM1U accommodates wall stud spacing of 16" to 32" (406mm - 813mm) and uses set screws to maintain a rigid, secure connection throughout the life of the installation. A built-in cable stand provides necessary access to connections located under the screen.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 2 in (5.1 cm) |
| Height | 18.25 in (46.4 cm) |
| Shipping Dimensions | 37.21" x 18.5" x 2.84" (945.2 x 469.9 x 72.2 mm) |
| Shipping Weight | 19.44 lbs (8.8 kg) |
| Typical Screen Size | 42"- 86" (1067mm - 2184mm) |
| Wall Stud Compatibility | 16" - 32" (406mm - 813mm) |
| Weight Capacity | 200 lbs (90.7 kg) |
| Width | 25.75 in (65.4 cm) |
All other specifications 9
| Adjustability | Fixed, Micro-Adjustable, Height Adjustable, Lateral Shift |
| Application | Wall |
| Color | Black |
| Orientation | Landscape |
| Solution Type | Universal |
| TAA Compliant | No |
| UPC | 841872163260 |
| VESA Mounting Pattern | 100 x 100mm - 800 x 500mm |
| Certifications | OSHPDUL Listed |
