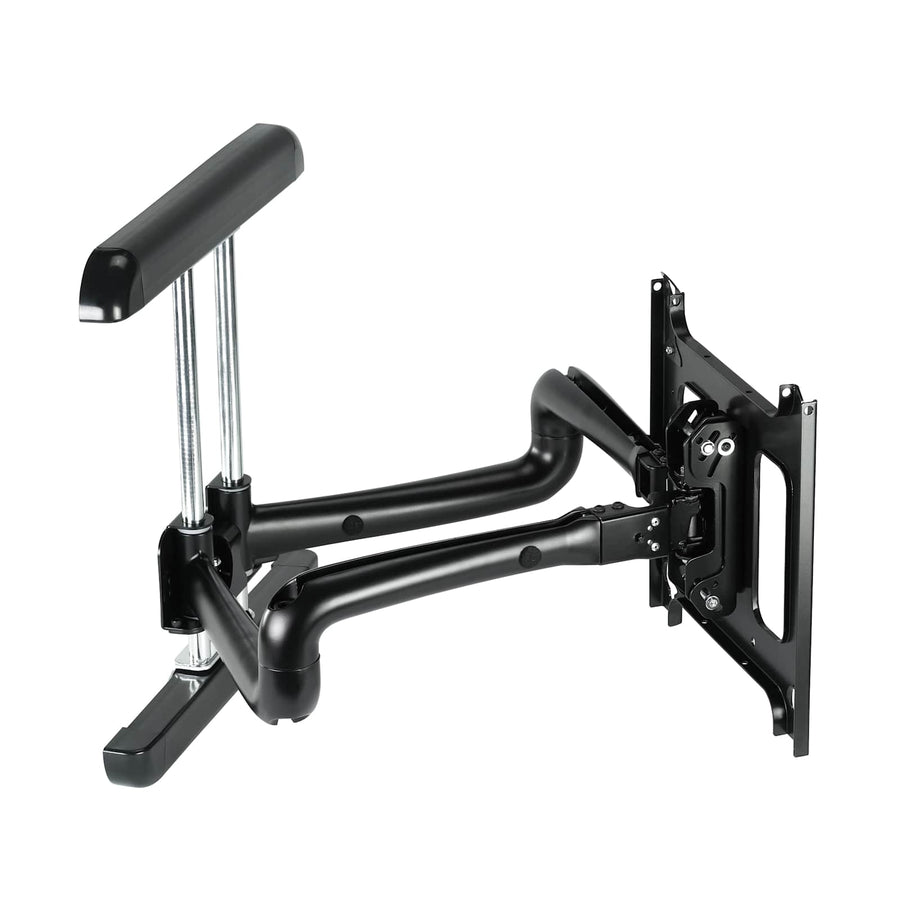

Large Flat Panel Swing Arm Wall Mount - 37 Inch (without interface)
Large flat panel swing arm mount for 42"- 86" displays, 200 lbs capacity, with 37" extension and tilt
The Chief PDR2000B is a large flat panel swing arm wall mount designed to provide ideal viewing angles for displays in various environments. This mount features a 37" (93.98 cm) extension, allowing the screen to be pulled away from the wall for easy access or repositioned for different viewing perspectives, while maintaining a low profile when in the home position. It is compatible with displays ranging from 42" to 86" (1067mm - 2184mm) and supports a weight capacity of 200 lbs (90.7 kg). Integrated CableTrac System channels keep cabling organized and hidden within the arms. For installation flexibility, the mount offers post-installation height adjustment of up to 1" (25 mm) and includes a post-installation leveling roll. This SKU is the black finish variant. Note that this model is a swing arm mount only and requires a separate interface bracket, such as the PSBUB, which is not included.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 3.4 in (8.6 cm) |
| Height | 22 in (55.9 cm) |
| Overall Dimensions | 22.0" x 39.5" x 3.4" (560 x 1003 x 86mm) |
| Shipping Weight | 63 lbs (28.6 kg) |
| Typical Screen Size | 42"- 86" (1067mm - 2184mm) |
| Wall Stud Compatibility | 16" (406mm) |
| Weight Capacity | 200 lbs (90.7 kg) |
| Width | 39.5 in (100.3 cm) |
All other specifications 11
| Adjustability | ExtensionHeight AdjustableLateral ShiftMicro-AdjustableSwivelTilt |
| Application | Wall |
| Color | Black |
| Orientation | LandscapePortrait |
| Post-Installation Leveling Roll | Yes |
| Solution Type | Custom |
| TAA Compliant | No |
| Tilt | +5° / -16° |
| UPC | 841872045368 |
| VESA Mounting Pattern | 200 x 200mm - 862 x 517mm |
| Certifications | UL Listed |
Resources
You'll need these with it
Center Channel Speaker Adapter-PACCC1
PACCC1$153.60
P-Series CPU/DVD/Media Player Adapter-PAC253
PAC253$272.00
P-Series CPU/DVD/Media Player Adapter-PAC252
PAC252$347.20
P-Series CPU/DVD/Media Player Adapter-PAC251
PAC251$309.60
PAC526, Large In-Wall Storage Box
PAC526$116.80
PSBUB, P-Series Universal Interface Bracket
PSBUB$177.60
Proximity™ Component Storage Panel, Interface
CSMP9X12$52.00
900x600 VESA Interface Adapter Bracket
PSB2104$273.60
PAC525, In-Wall Storage Box
PAC525$79.20
Center Channel Speaker Adapter-PACCC2
PACCC2$262.40
Video Conferencing Camera Shelf - 14 Inch
PAC716$179.20
ClickConnect Padlock
PAC138$37.60
Verified fitment
Questions about this part
Will the Chief PDR2000B fit my display?
This mount is verified against 3,787 display models from 127 manufacturers, including Samsung 320MP, Sony FD55X8570C, LG 32LK610, and Panasonic EJMLA32EW.
What else do I need to purchase to install this mount?
The PDR2000B is a swing arm mount that requires a separate interface bracket, such as the PSBUB P-Series Universal Interface Bracket, to attach the display.
Can I use this mount in a portrait orientation?
Yes, the mount supports both landscape and portrait orientations. To rotate a screen without removing it from the mount, you can use the PAC400 P-Series Rotation Adapter.
How much can the display be adjusted after installation?
The mount features post-installation height adjustment of up to 1" (25 mm) and includes a post-installation leveling roll for fine-tuned positioning.
What is the VESA pattern for the PDR2000B?
The mounting pattern supports VESA patterns from 200 x 200mm up to 862 x 517mm.
