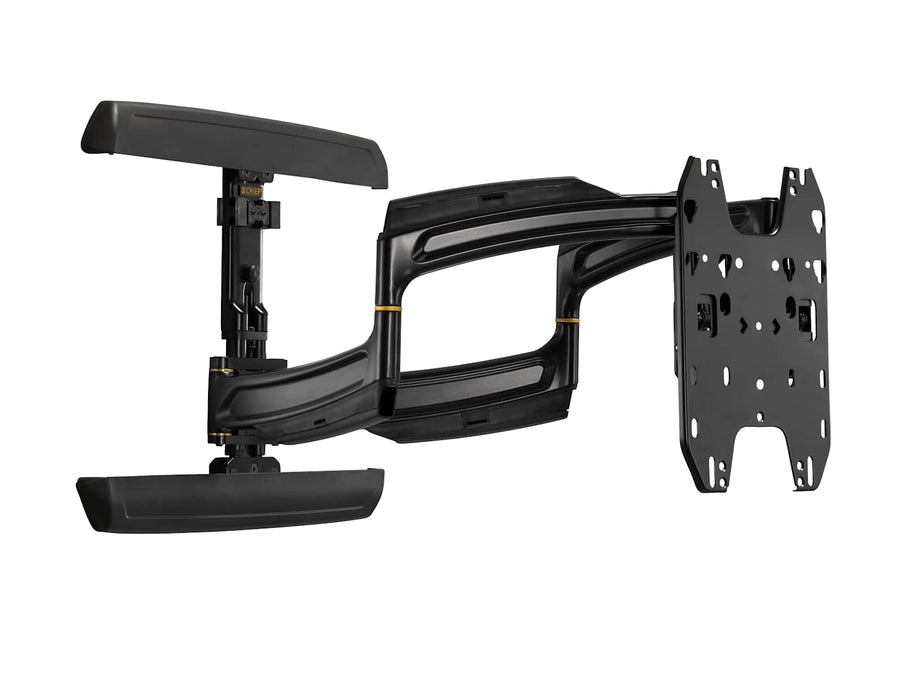

Medium Thinstall™ Dual Swing Arm Wall Display Mount - 25 Inch Extension
Full-motion swing arm mount for 32"-65" displays with 25 in (63.5 cm) maximum extension and lateral shift
The Chief TS325TU is a medium-profile, full-motion Thinstall™ swing arm wall mount designed to provide significant reach and flexibility for displays. This unit offers a maximum extension of 25 in (63.5 cm), allowing users to pull the display away from the wall for easy access or cabling. It is engineered for a quick, one-person installation by mounting the top rail first and then sliding the assembly into place. This SKU is the 25 in extension version of the Thinstall™ series; for in-wall installation capability, the TA500 Large Thinstall™ In-Wall Swing Arm Accessory must be purchased separately. This mount supports a variety of VESA patterns, including up to 600 x 400mm, and is rated for a weight capacity of 75 lbs (34 kg). The system features extensive adjustability, including tilt, swivel, lateral shift, and micro-adjustments, alongside a post-installation leveling roll to ensure a perfect fit. It is UL listed and OSHPD compliant.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 1.8 in (4.6 cm) |
| Height | 17.24 in (43.8 cm) |
| Lateral Shift | 7.5 in (19.1 cm) |
| Maximum Extension | 25 in (63.5 cm) |
| Minimum Depth | 1.8 in (4.6 cm) |
| Overall Dimensions | 17.24" x 29.56" x 1.8" (438 x 750.8 x 45.7 mm) |
| Shipping Dimensions | 24" x 3" x 33.25"(609.6 x 76.2 x 844.6 mm) |
| Shipping Weight | 30.91 lbs (14 kg) |
All other specifications 15
| Typical Screen Size | 32" - 65" (813mm - 1651mm) |
| Wall Stud Compatibility | Dual Stud |
| Weight Capacity | 75 lbs (34 kg) |
| Width | 29.56 in (75.1 cm) |
| Adjustability | Extension, Swivel, Tilt, Micro-Adjustable, Height Adjustable, Lateral Shift |
| Application | Wall |
| Color | Black |
| Orientation | Landscape |
| Post-Installation Leveling Roll | Yes |
| Solution Type | Universal |
| TAA Compliant | No |
| Tilt | -15° |
| UPC | 841872151120 |
| VESA Mounting Pattern | 100 x 100mm200 x 100mm200 x 200mm300 x 100mm300 x 200mm300 x 300mmup to 600 x 400mm |
| Certifications | OSHPDUL Listed |
Resources
You'll need these with it
Proximity™ Component Storage Panel, Interface
CSMP9X12$52.00
Thinstall™ Center Channel Speaker Adapter
TA350$130.40
PAC526, Large In-Wall Storage Box
PAC526$116.80
PAC525, In-Wall Storage Box
PAC525$79.20

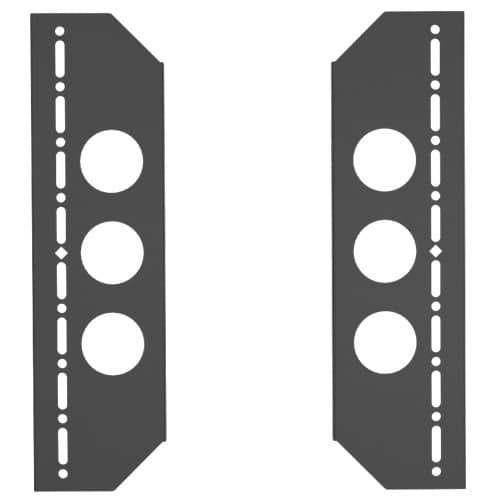

Interface Extender
FHB5050$48.80
Universal Flat Panel Mount Hardware kit
FHB5147$16.00

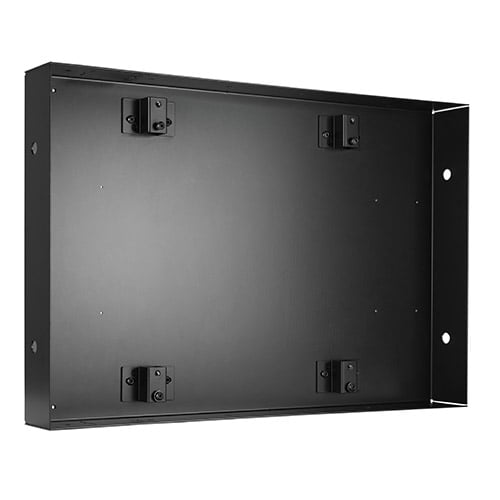

Large Thinstall™ In-Wall Swing Arm Accessory for TS525TU and TS325TU
TA500$349.60
Fusion® and Thinstall™ Hardware Kits
FHB5104$273.60
Fusion® and Thinstall™ Hardware Kits-FHB5062
FHB5062$11.20
Thinstall™ Component Shelf
TA100$125.60
Bracket for Outdoor Samsung 46 Inch Display
FHBO5169$956.00
Brackets for Outdoor 55 Inch Displays
FHBO5168$956.00
Verified fitment
Questions about this part
Will the Chief TS325TU fit my display?
It is verified against 4,062 display models from 112 manufacturers, including Samsung 43QN9*C, Sony 55BZ30P, and LG 32CS460.
How much extension does this mount provide?
The TS325TU provides a maximum extension of 25 in (63.5 cm) from the wall.
Can I install this mount inside the wall?
In-wall installation is possible if you purchase the TA500 Large Thinstall™ In-Wall Swing Arm Accessory with this mount.
What tools are needed for installation?
The installation manual lists the specific tools required to complete the mounting process.
Does this mount support portrait orientation?
This specific model is designed for landscape orientation.
