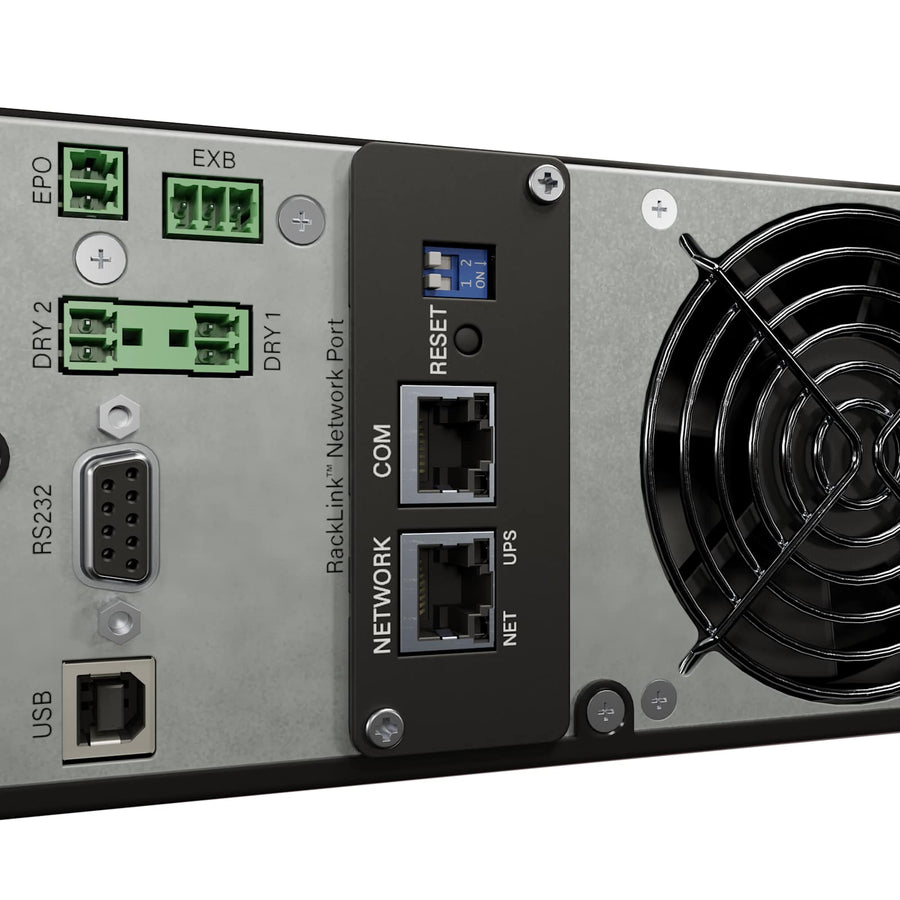

NEXSYS™ UPS RackLink™ Network Card
Network interface card for NEXSYS UPS systems providing remote management and monitoring capabilities
The UPX-RLNK-CARD is a NEXSYS™ UPS RackLink™ Network Card that enables professional remote management for your power backup systems. This network-enabled card allows you to monitor your UPS status and manage power remotely via the RackLink Discovery Tool, which is compatible with PC, Apple, and Android devices. For advanced integration, specific firmware versions are required to support the UPS QSC® Q-SYS™ Plugin and the UPS Crestron® Module. By installing this card, you add RackLink™ functionality to your existing NEXSYS UPS, transforming how you interact with your power infrastructure. This card is designed for operation in environments with temperatures ranging from 32°F to 104°F (0°C to 40°C).
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Operating Temperature | 32° to 104°F (0° to 40°C) |
| Shipping Weight | 0.4 lbs (0.2 kg) |
| Control Type | RackLink |
| Federal Ops Country of Origin | China |
| Network Enabled | Yes |
| Special Features | NEXSYS UPS |
| UPC | 656747395666 |
| Warranty | 3 years |
Resources
You'll need these with it
Select Series PDU with RackLink™, 2 Outlet
RLNK-215$429.30
2 RU Select Series UPS Backup Power, 1500VA
UPS-S1500R$1,598.40
NEXSYS™ 2000VA, 20 Amp UPS Backup Power System, Bank Outlet Control
UPX-2000R-2$3,079.80
Rackmount Power, 9 Outlet, 15A, Basic Surge Protection
PD-915R-PL$264.60
Compact Premium+ PDU With RackLink™, 4 Outlet 15A & 2-Stage Surge
RLNK-P415$1,360.80
1 RU Select Series UPS Backup Power, 1000VA
UPS-S1000R$1,377.00
Rackmount Power, 9 Outlet, 15A, Basic Surge Protection - 9 ft Cord
PD-915R$223.20
Premium+ PDU With RackLink™, 9 Outlet 15A Series Protection Surge
RLNK-P915R-SP$2,318.40
NEXSYS™ 1000VA, 15 Amp UPS Backup Power System, Bank Outlet Control
UPX-1000R-2$2,097.00
Select Series PDU with RackLink™, 9 Outlet
RLNK-915R$715.50
NEXSYS™ 1500VA, 15 Amp UPS Backup Power System, Bank Outlet Control
UPX-1500R-2$2,421.00
Premium+ PDU With RackLink™, 9 Outlet 20A Series Protection Surge
RLNK-P920R-SP$2,318.40
Questions about this part
How do I manage my UPS remotely with this card?
You can connect directly to the UPS using the RackLink Discovery Tool on any PC, Apple, or Android device.
Is the UPX-RLNK-CARD compatible with Q-SYS or Crestron?
Yes, it supports the UPS Crestron® Module and the UPS QSC® Q-SYS™ Plugin, provided the UPS is running firmware v1.10.08 or later.
What devices are required to use the RackLink Discovery Tool?
The tool is compatible with PC, Apple, and Android mobile devices to facilitate direct connection to the UPS.
What is the operating temperature range for this network card?
The card is designed to operate in temperatures between 32°F and 104°F (0°C to 40°C).
What documentation is available for submittals or installation?
Technical details are available in the NEXSYS™ UPS RackLink™ Network Card Quick Start Guide and the full User Manual.
