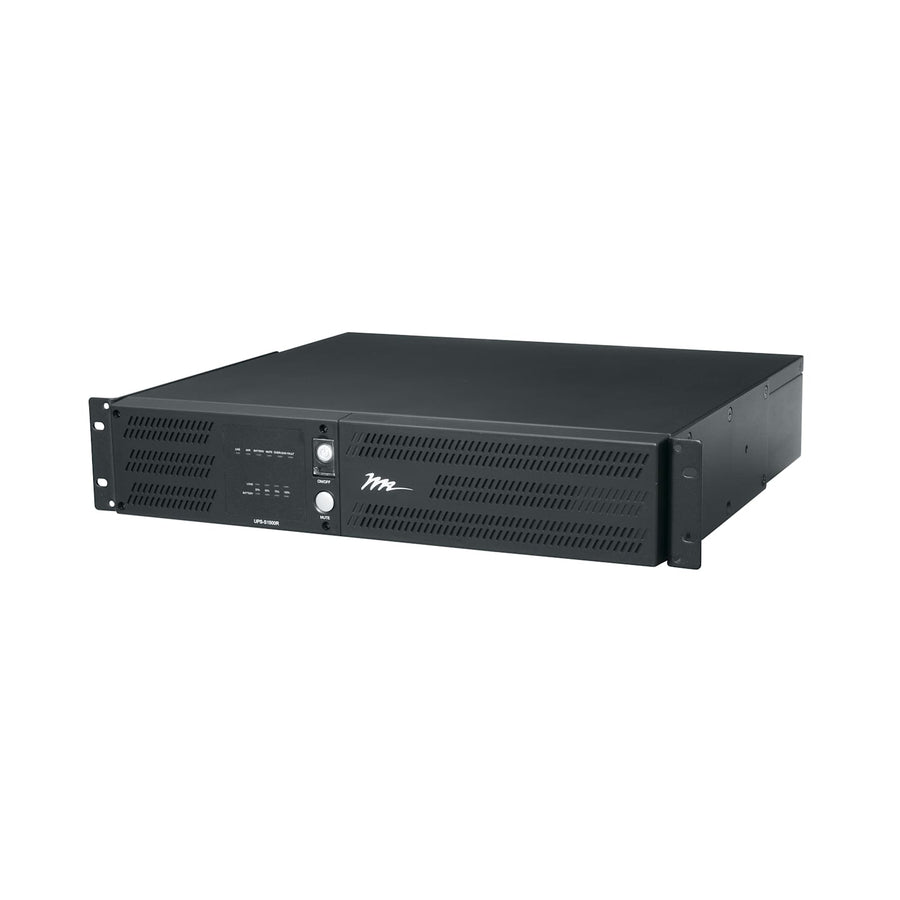

2 RU Select Series UPS Backup Power, 1500VA
2 RU 1500VA UPS backup system with 8 outlets and automatic voltage regulation for AV and security applications

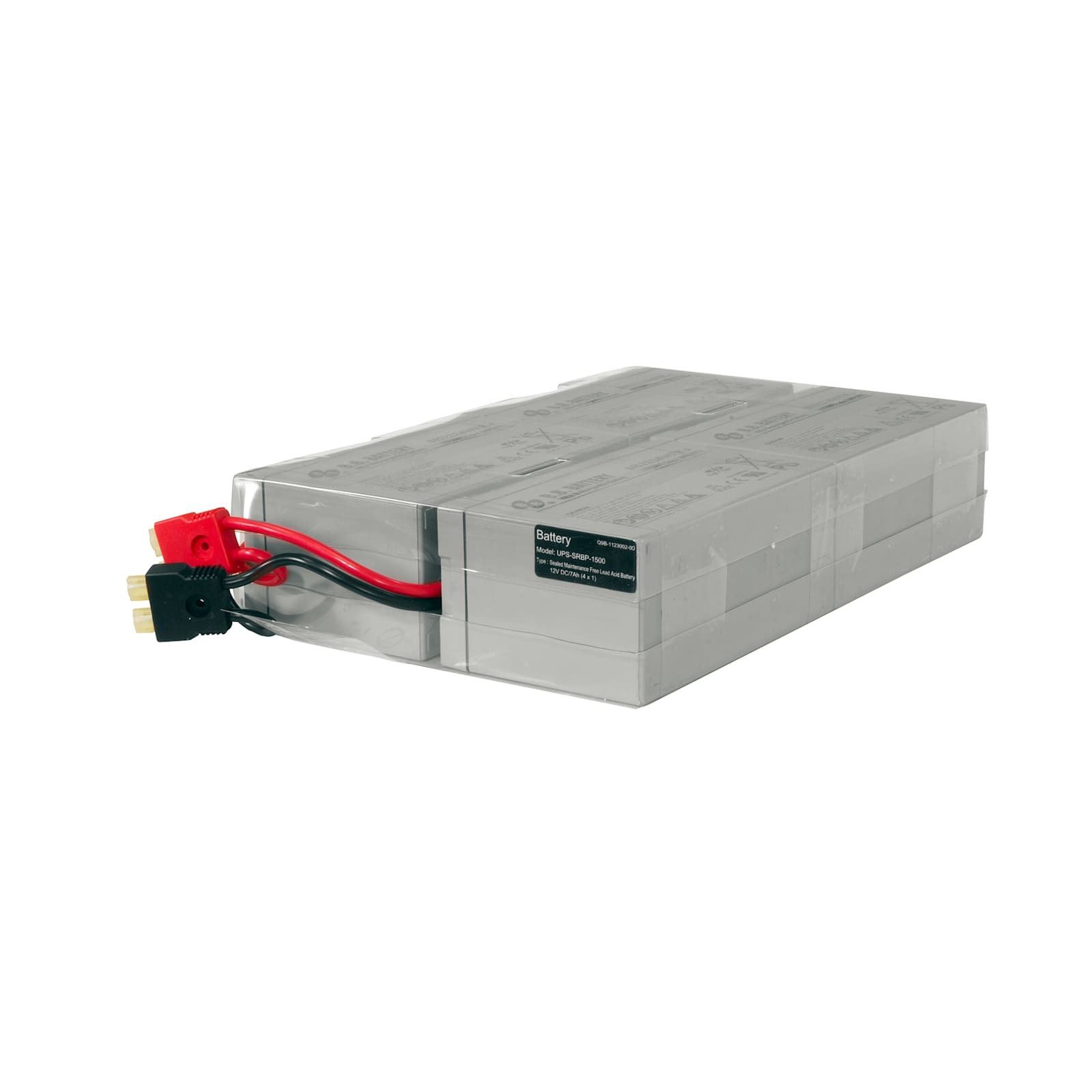

The Middle Atlantic UPS-S1500R is a 2 RU Select Series UPS backup power system designed to ensure equipment uptime during power outages or voltage anomalies. This unit provides 1500VA of capacity and includes 8 outlets to support critical AV and security components. It features automatic voltage regulation (AVR) to protect hardware from over and under voltage, switching to battery power within 8ms of an anomaly. The system utilizes a simulated sine wave to provide efficient protection and includes basic surge protection and EMI filtering. To assist with power management, the unit offers separate critical and non-critical outlet banks, allowing for load shedding to prioritize essential equipment during extended outages. An LED status indicator on the front panel communicates battery status, low battery levels, and overload conditions. For remote oversight, an optional UPS-OLIPCARD can be installed to enable network monitoring and control. Maintenance is simplified by a hot swappable battery pack that can be replaced via the front panel without disrupting system power.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cord Length | 10 ft (3.1 m) |
| Depth | 16.5 in (41.9 cm) |
| Height | 3.46 in (8.8 cm) |
| Mounting Depth Max | 32 in (81.3 cm) |
| Mounting Depth Min | 19 in |
| Rack Units | 2 RU |
| Shipping Weight | 54 lbs (24.5 kg) |
| VA Rating | 1500VA |
All other specifications 8
| Width | 19 in (48.3 cm) |
| Cable Type | Corded |
| Mounting Points | 2 |
| Outlet Count | 8 |
| Surge Protection Type | Basic |
| TAA Compliant | No |
| UPC | 656747237171 |
| Certifications | FCCUL Listed |
Resources
You'll need these with it
Questions about this part
Will the UPS-S1500R fit in my standard equipment rack?
Yes, this is a 2 RU unit that requires a mounting depth between 19 in and 32 in (48.3 cm to 81.3 cm).
Can I monitor this UPS remotely?
Remote monitoring and control can be achieved by installing the optional UPS-OLIPCARD network interface card.
How do I replace the batteries in the UPS-S1500R?
The battery pack is hot swappable and can be replaced through the front panel without powering down the system.
What is the benefit of the separate outlet banks?
The unit features separate critical and non-critical banks to allow for load shedding, which preserves battery life for essential equipment during long outages.
What do I need for submittals or runtime planning?
Installers can use the Select Series UPS User Manual for installation details or the UPS Runtime Calculator to plan load requirements.
