Rackmount Power, 9 Outlet, 15A, Basic Surge Protection
9-outlet 15A rackmount PDU with SignalSAFE™ power cord and basic surge protection for AV equipment

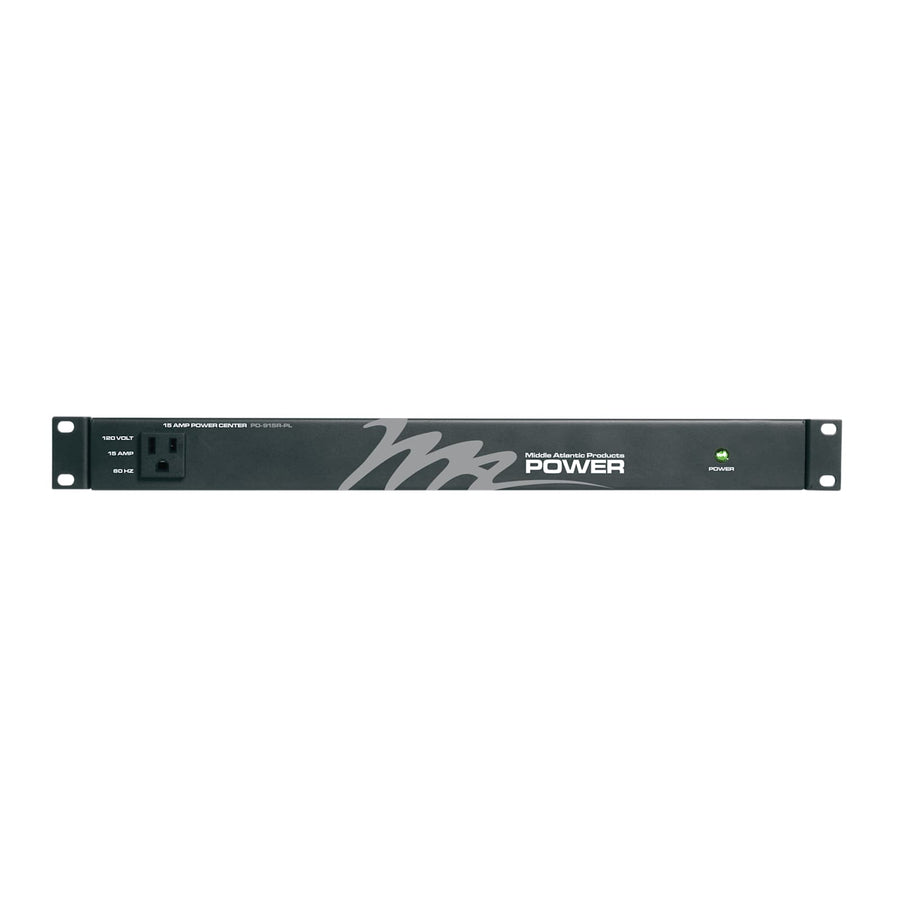

The Middle Atlantic PD-915R-PL provides reliable power distribution for AV racks, occupying only 1 RU of space. This 15A, 120 VAC PDU features 9 total outlets: 8 distribution outlets located on the rear for organized cable management, plus one front-facing convenience outlet for easy access. To reduce potential electromagnetic interference from other equipment in the rack, this unit is equipped with a 9 ft (2.7 m) SignalSAFE™ power cord. It includes basic surge protection and built-in EMI filtering to protect sensitive electronics, specifically utilizing line to neutral surge protection to ensure the ground remains uncontaminated. The chassis depth is 9.33 in (23.7 cm) to assist with plugging in equipment in deep racks. This model lacks a front-facing power switch, which helps prevent unauthorized tampering, and features an integrated light to indicate if the unit is receiving power.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Amps | 15 Amp |
| Cord Length | 9 ft (2.7 m) |
| Depth | 9.33 in (23.7 cm) |
| Height | 1.75 in (4.4 cm) |
| Rack Units | 1 RU |
| Shipping Weight | 9 lbs (4.1 kg) |
| Volts AC | 120 VAC |
| Width | 19 in (48.3 cm) |
All other specifications 12
| Cable Type | Corded |
| Color | Black |
| Finish | Flat Powder Coat |
| Mounting Points | 2 |
| Number of Circuits | 1 |
| Outlet Count | 9 |
| Plug Type | 5-15P |
| Power Switch | No |
| Surge Protection Type | Basic |
| TAA Compliant | No |
| UPC | 656747100284 |
| Certifications | ETL Listed |
Resources
Questions about this part
Will this PDU fit in a standard 19-inch rack?
Yes, the PD-915R-PL is a 19 in (48.3 cm) wide unit designed for 1 RU rack space.
How many outlets are available and where are they located?
This model features 9 total outlets, consisting of 8 rear distribution outlets for cable management and 1 front convenience outlet.
What is the difference between this and the 8-outlet version?
This specific SKU provides 9 total outlets, whereas other variants in this series offer 8 outlets.
Does this PDU include a power switch on the front?
No, this unit does not have a power switch on the front to prevent tampering in shared environments.
Which documents should I use for submittals?
For technical drawings, use the PD Rackmount 3D CAD (zip) file, or refer to the PD Series Rackmount Power Strips A&E Specification Sheet for technical details.
