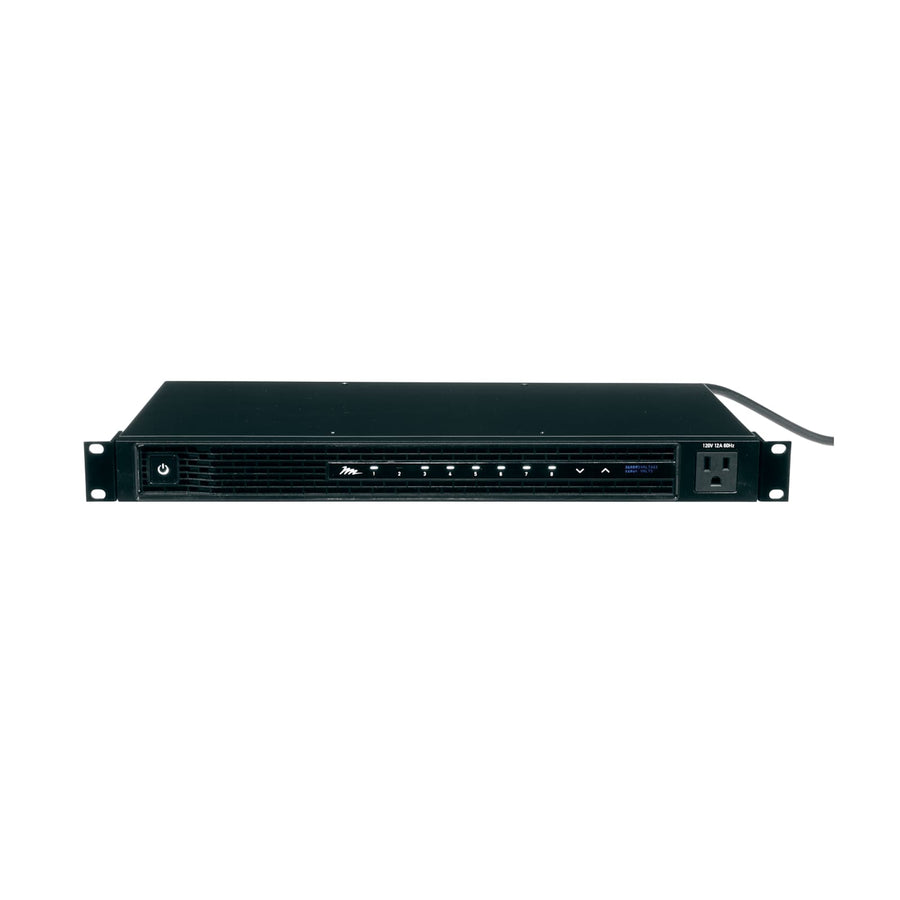

Premium+ PDU With RackLink™, 9 Outlet 20A Series Protection Surge
Intelligent 20A PDU with 9 NEMA 5-20R outlets, RackLink™ remote management, and non-sacrificial series protection.
The RLNK-P920R-SP is a high-performance 20 Amp power distribution unit designed for advanced remote system management in demanding AV applications. This Premium+ Series PDU features 9 NEMA 5-20R outlets, including 8 outlets located on the back and 1 convenience outlet on the front for easy access. It utilizes patented non-sacrificial Series Protection surge technology to safeguard equipment. Through RackLink™ technology, installers can perform remote monitoring and control via 3rd party AV control systems, cloud platforms, or SNMP. The unit offers precise metering for total power draw at the individual outlet level, tracking current, voltage, power, power factor, and energy usage. For added system security, the RLNK-P920R-SP supports environmental monitoring when connected to compatible temperature and humidity sensors.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| AC Voltage Input | 80-140 V |
| Amps | 20 Amp |
| Shipping Weight | 13 lbs (5.9 kg) |
| Available Internationally | No |
| Outlet Count | 9 |
| Output Ports | LAN |
| Receptacle Type | NEMA 5-20R |
| Surge Protection Type | Series Protection |
All other specifications 5
| TAA Compliant | No |
| UPC | 656747321627 |
| Certifications | FCCUL Listed |
| Patent Number | 844947US 8 |
| Patents | www.legrandav.com/patents |
Resources
Questions about this part
What is the outlet configuration for the RLNK-P920R-SP?
This 20A PDU provides 9 total NEMA 5-20R outlets, consisting of 8 outlets on the rear and 1 convenience outlet on the front.
How can I manage this PDU remotely?
You can manage the unit via RackLink™ Cloud, 3rd party AV control systems, or through SNMP v3/MIB using the LAN output port.
Can I monitor the environmental conditions in my rack?
Yes, you can connect multiple environmental sensors to monitor temperature and humidity to alert you to potential threats.
What is the difference between this and a standard surge protector?
This unit uses patented non-sacrificial Series Protection technology and provides advanced metering for power factor and energy usage per outlet.
Which documents are available for submittals?
Technical documentation includes the A&E Specification Sheet, the RackLink User Manual, and the Network Security Whitepaper.
