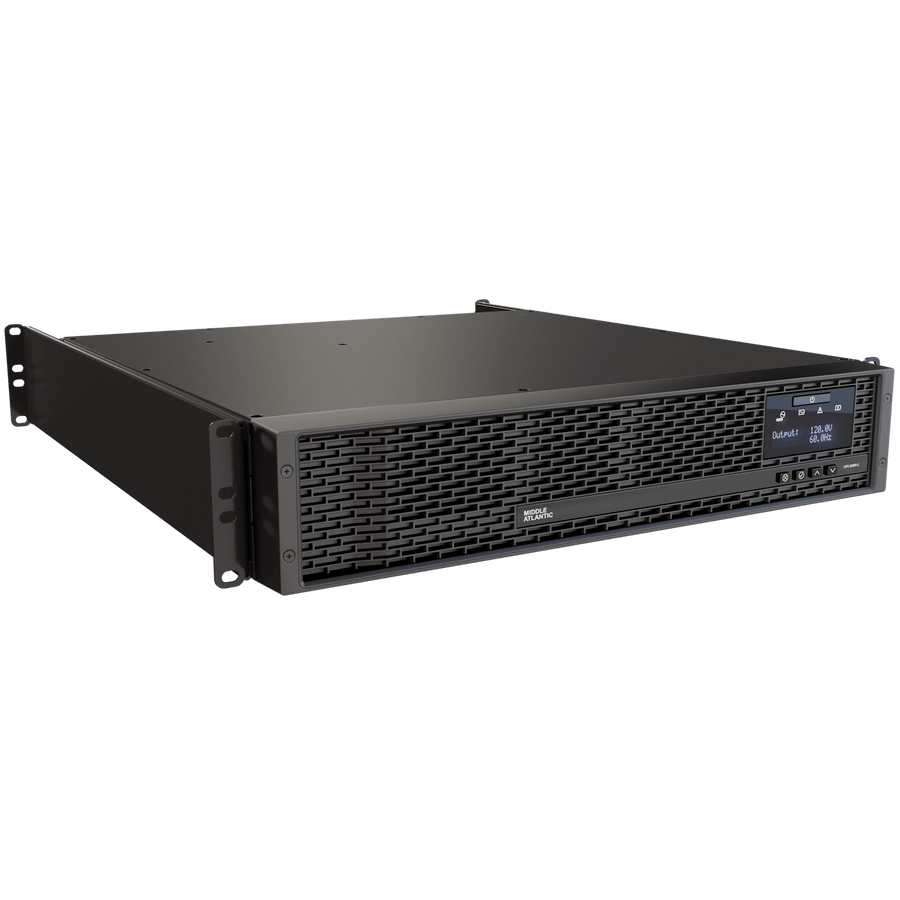

NEXSYS™ 1000VA, 15 Amp UPS Backup Power System, Bank Outlet Control
1000VA Line Interactive UPS with 8 NEMA 5-15R outlets, featuring two controlled banks and RackLink compatibility
The Middle Atlantic UPX-1000R-2 is a NEXSYS™ Line Interactive UPS designed specifically for the power requirements of professional AV environments. This 1000VA, 900W backup system provides reliable power with 8 NEMA 5-15R outlets organized into two distinct 4-outlet banks for controlled power distribution. It features a Line Interactive topology to maintain steady voltage for sensitive electronics. For efficient deployment, the unit ships with pre-installed 4-post rack ears and the battery is already connected, allowing for immediate integration into a rack. Serviceability is streamlined via a front-access panel that allows for hot-swappable battery replacement. The integrated LCD screen provides critical telemetry, including the serial number, current firmware version, battery installation date, and the replacement battery part number, UPX-RPLBATT-A. For remote management, this unit is RackLink™ compatible when the UPX-RLNK-CARD is installed.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| AC Voltage Input | 120 VAC |
| AC Voltage Output | 110-127 VAC |
| Amps | 15 Amp |
| Cord Length | 6 ft (1.8 m) |
| Depth | 16 in (40.6 cm) |
| Height | 3.46 in (8.8 cm) |
| Mounting Depth Max | 36 in (91.4 cm) |
| Mounting Depth Min | 22 in |
All other specifications 27
| Operating Temperature | 32° to 104°F (0° to 40°C) |
| Product Weight | 44.1 lbs (20 kg) |
| Rack Units | 2 RU |
| Shipping Weight | 50.26 lbs (22.8 kg) |
| VA Rating | 1000VA |
| Volts AC | 120 VAC |
| Volts DC | 36 VDC |
| Watts | 900 W |
| Width | 19 in (48.3 cm) |
| Color | Black |
| Federal Ops Country of Origin | China |
| Isolated Ground | No |
| Mounting Points | 4 |
| Network Card Included | No |
| Network Enabled | Yes |
| Outlet Control Type | Bank |
| Outlet Count | 8 |
| Plug Type | NEMA 5-15P |
| Receptacle Type | NEMA 5-15R |
| Special Features | NEXSYS UPS |
| Surge Protection Type | MOV |
| TAA Compliant | No |
| Topology | Line Interactive |
| UPC | 656747395574 |
| Certifications | CSAFCCREACHRoHSTUV |
| Patents | www.legrandav.com/patents |
| Warranty | 2 Years Battery3 years |
Resources
You'll need these with it
Questions about this part
How do I manage this UPS remotely?
While the UPX-1000R-2 is network enabled, it requires the UPX-RLNK-CARD RackLink™ Network Card (sold separately) to enable RackLink™ remote management and discovery.
What is the process for replacing the batteries?
The UPX-1000R-2 features a front-access panel for hot-swappable battery replacement. When the time comes, use the replacement battery part number UPX-RPLBATT-A as identified on the front LCD screen.
Does this unit include all the necessary rack mounting hardware?
Yes, this unit arrives with pre-installed rack ears and 4-post mounting brackets, making it ready for immediate installation in a 19-inch rack.
Can I increase the runtime for my AV equipment?
Yes, you can expand the runtime by connecting a NEXSYS™ UPS Expandable Run Time Unit, specifically the UPX-EXPANRUN-10-15, to this 1000VA model.
How can I monitor the environmental conditions near the UPS?
You can monitor the environment using the NEXSYS™ UPS Temperature and Humidity Sensor, part number UPX-TEMP-CONT.
