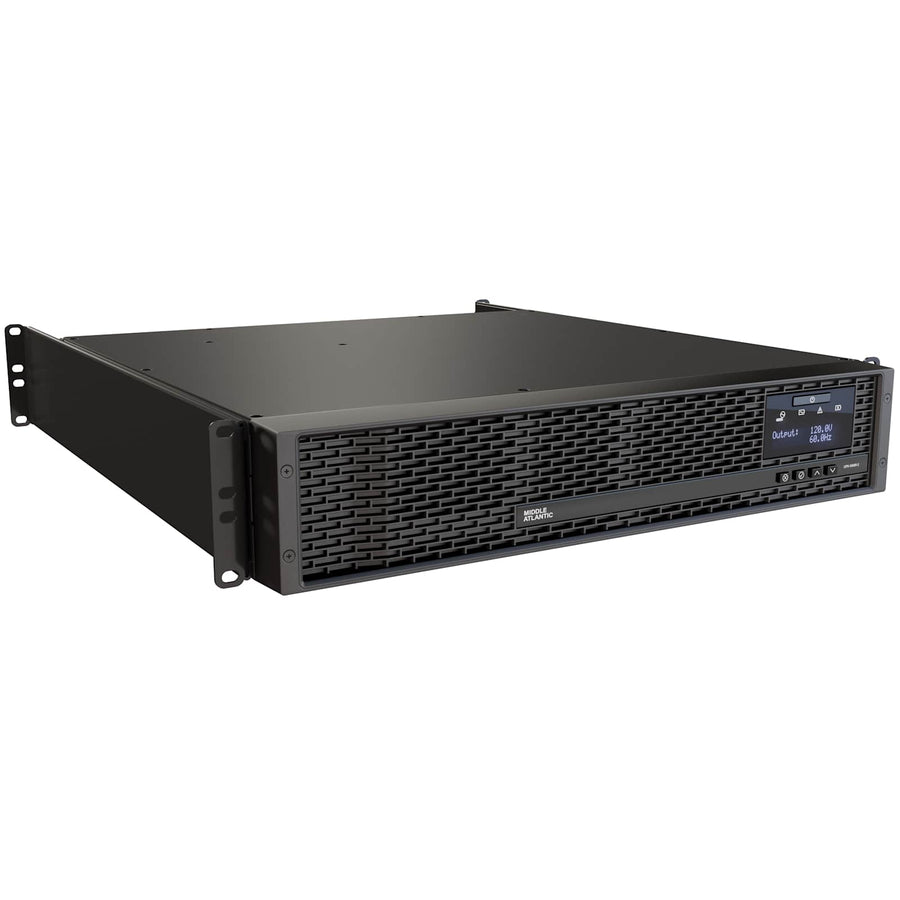

NEXSYS™ 1500VA, 15 Amp UPS Backup Power System, Bank Outlet Control
Line interactive 1500VA UPS with 8 NEMA 5-15R outlets featuring bank outlet control and hot-swappable battery access
The Middle Atlantic UPX-1500R-2 is a NEXSYS Line Interactive UPS Backup Power System designed specifically to protect AV equipment from power instability. This 2 RU unit provides 1500VA / 1350 W of backup power and features 8 NEMA 5-15R outlets organized into two banks of 4 outlets each for bank outlet control. To simplify installation, the unit ships with pre-installed 4-post rack ears and a pre-connected battery, allowing for immediate integration into a rack. The UPS utilizes Line Interactive topology with MOV surge protection to maintain clean power. For long-term maintenance, the battery is hot-swappable and accessible via a front panel, allowing for service without disrupting the system. Monitoring is streamlined through a front LCD screen that displays the serial number, battery replacement date, battery installation date, firmware version, and replacement part number. For advanced integration, this unit is RackLink compatible when used with the UPX-RLNK-CARD (sold separately) and includes an RS232 port for control.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| AC Voltage Input | 120 VAC |
| AC Voltage Output | 110-127 VAC |
| Amps | 15 Amp |
| Cord Length | 6 ft (1.8 m) |
| Depth | 16 in (40.6 cm) |
| Height | 3.46 in (8.8 cm) |
| Mounting Depth Max | 36 in (91.4 cm) |
| Mounting Depth Min | 22 in |
All other specifications 27
| Operating Temperature | 32° to 104°F (0° to 40°C) |
| Product Weight | 44.1 lbs (20 kg) |
| Rack Units | 2 RU |
| Shipping Weight | 51.5 lbs (23.4 kg) |
| VA Rating | 1500VA |
| Volts AC | 120 VAC |
| Volts DC | 36 VDC |
| Watts | 1350 W |
| Width | 19 in (48.3 cm) |
| Color | Black |
| Federal Ops Country of Origin | China |
| Isolated Ground | No |
| Mounting Points | 4 |
| Network Card Included | No |
| Network Enabled | Yes |
| Outlet Control Type | Bank |
| Outlet Count | 8 |
| Plug Type | NEMA 5-15P |
| Receptacle Type | NEMA 5-15R |
| Special Features | NEXSYS UPS |
| Surge Protection Type | MOV |
| TAA Compliant | No |
| Topology | Line Interactive |
| UPC | 656747395581 |
| Certifications | CSAFCCREACHRoHSTUV |
| Patents | www.legrandav.com/patents |
| Warranty | 2 Years Battery3 years |
Resources
You'll need these with it
NEXSYS™ UPS RackLink™ Network Card
UPX-RLNK-CARD$720.00
NEXSYS™ 9 Outlet, 15 Amp Rackmount Power with Series Surge Protection
PDX-915R-SP$907.20
NEXSYS™ 2 Outlet, 15 Amp Compact Power with Multi-Stage Surge Protection
PDX-215C$262.80
Compact Premium+ PDU With RackLink™, 4 Outlet 15A & 2-Stage Surge
RLNK-P415$1,360.80
1 RU Select Series UPS Backup Power, 1000VA
UPS-S1000R$1,377.00
NEXSYS™ 2000VA, 20 Amp UPS Backup Power System with RackLink™, Individual Outlet Control
UPX-RLNK-2000R-8$3,850.20
Rackmount Power, 9 Outlet, 15A, Basic Surge Protection - 9 ft Cord
PD-915R$223.20
NEXSYS™ 2000VA, 20 Amp UPS Backup Power System with RackLink™, Bank Outlet Control
UPX-RLNK-2000R-2$3,519.90
NEXSYS™ UPS Temperature and Humidity Sensor
UPX-TEMP-CONT$522.00
Select Series PDU with RackLink™, 9 Outlet
RLNK-915R$715.50
NEXSYS™ 2000VA, 20 Amp Online UPS Backup Power System with RackLink™, Bank Outlet Control
UPX-RLNK-OL2000R-2$5,169.60
NEXSYS UPS Replacement Battery - UPX-RPLBATT-B
UPX-RPLBATT-BNot stocked
Questions about this part
What do I need to buy to enable network management on the UPX-1500R-2?
To enable network management, you must purchase the NEXSYS™ UPS RackLink™ Network Card (SKU: UPX-RLNK-CARD) separately.
How do I service or replace the battery in this UPS?
The battery is hot-swappable via the front access panel, which allows you to perform maintenance without disrupting your system's power.
What is the difference between this model and the UPX-RLNK-2000R-2?
This UPX-1500R-2 is a 1500VA, 15 Amp system, whereas the UPX-RLNK-2000R-2 is a 2000VA, 20 Amp system with RackLink integration.
What information can I view on the front of the unit?
The front LCD screen displays the serial number, replacement battery part number (UPX-RPLBATT-B), battery installation date, and firmware version.
Does this UPS support expanded runtime?
Yes, you can increase runtime using the NEXSYS™ UPS Expandable Run Time Unit (SKU: UPX-EXPANRUN-10-15).
