Large Projector Security Cage - PG3A
Security cage for large projectors, compatible with RPA and RPM series mounts, providing full enclosure protection

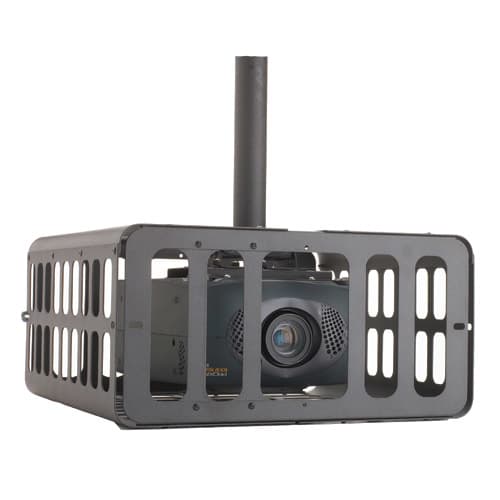

The Chief PG3A is a heavy-duty security solution designed to fully enclose a projector mount within a locked steel cage. This enclosure protects high-value equipment from theft and accidental or intentional recreational damage in public spaces. This specific PG3A model is engineered exclusively for use with the RPA and RPM series mounts; it is not compatible with the VCM or VCT series, which require the PG4 model. The cage accommodates large equipment with maximum dimensions of 11.36" x 25" x 24.9" (288 x 635 x 633 mm). Its overall footprint measures 14.3" x 25.2" x 25.4" (363 x 639 x 645 mm), providing a comprehensive barrier for the installed projector.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Depth | 25.4 in (64.5 cm) |
| Height | 14.3 in (36.3 cm) |
| Max Equipment Size | 11.36" x 25" x 24.9" (288 x 635 x 633 mm) |
| Overall Dimensions | 14.3" x 25.2" x 25.4" (363 x 639 x 645 mm) |
| Shipping Weight | 49.67 lbs (22.5 kg) |
| Width | 25.2 in (64 cm) |
| Accessory Type | Cages and Cases |
| Color | Black |
| Projector Size | Large |
| TAA Compliant | Yes |
| UPC | 841872145341 |
| Certifications | TAA |
Resources
You'll need these with it
Universal RPA Ceiling Projector Mount - RPAU
RPAU$252.00
RPA Elite Universal Projector Mount with Keyed Locking (B version) - RPMBUW
RPMBUW$303.20
RPA Elite Universal Projector Mount with Keyed Locking (C version) - RPMCUS
RPMCUS$303.20
RPA Elite (Mount Only)
RPMA000W$237.60
RPA Elite Universal Projector Mount with Keyed Locking (C version) - RPMCUW
RPMCUW$303.20
Universal RPA Ceiling Projector Mount - RPAUW
RPAUW$252.00
RPA Elite Universal Projector Mount with Keyed Locking (B version) - RPMBUS
RPMBUS$303.20
RPM Elite (Mount Only) - RPMA000S
RPMA000S$237.60
RPA Top Only (Black)
RPA000$189.60
RPM Elite (Mount Only) - RPMA000
RPMA000$237.60
RPA Top Only (White)
RPA000W$189.60
RPA Elite Universal Projector Mount with Keyed Locking (B version) - RPMBU
RPMBU$303.20
Questions about this part
Will the PG3A work with my projector mount?
The PG3A is compatible only with RPA and RPM Series mounts. If you are using a VCM or VCT series mount, you must use the PG4 series instead.
How large of a projector can I fit in the PG3A?
The cage accommodates large projectors with a maximum equipment size of 11.36" x 25" x 24.9" (288 x 635 x 633 mm).
Is the PG3A TAA compliant?
Yes, the PG3A is TAA Compliant, making it suitable for projects requiring adherence to the Trade Agreements Act.
What is the difference between the PG3A and the PG4?
The PG3A is designed for RPA and RPM series mounts, while the PG4 is the correct version for VCM and VCT series mounts.
Which documents are available for submittals?
The PG3A Technical Drawing, CAD Drawing, and Installation Manual are all available for use in project submittals.
