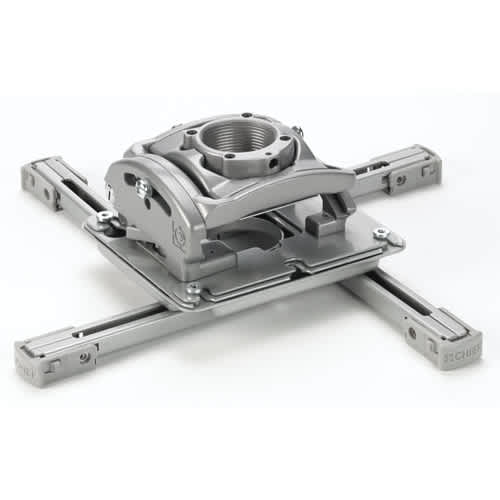

RPA Elite Universal Projector Mount with Keyed Locking (B version) - RPMBUS
Universal ceiling projector mount with independent roll-pitch-yaw, Centris technology, and Q-Lock keyed security
The Chief RPMBUS is an RPA Elite Universal Projector Mount with Keyed Locking (B version) designed for efficient ceiling installations where precision and security are paramount. This silver-finish mount features Centris Technology, allowing for effortless fingertip positioning and self-adjustment to various projector weights. For rapid setup, Microzone Adjustments enable fast and precise projector registration, which is especially helpful during flush mount installations. This mount provides independent roll, pitch, and yaw through micro-adjustable movements. Integrated cable management is included, and the Q-Lock Quick Release Lever allows for rapid disconnect/connect of the projector for servicing or enhanced security using an integrated key and lock system. The included universal interface handles various projector types, while the design maintains registration when disconnected so that preset adjustments are not lost. This UL Listed mounting solution is compatible with 7,322 verified display models from 114 manufacturers, including the Panasonic PT-AE1000E and Epson BrightLink 1485Fi.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Shipping Dimensions | 10.25" x 10.25" x 5"(260.4 x 260.4 x 127 mm) |
| Shipping Weight | 7 lbs (3.2 kg) |
| Weight Capacity | 50 lbs (22.7 kg) |
| Adjustability | Independent Roll-Pitch-YawMicro-Adjustable |
| Application | Ceiling |
| Color | Silver |
| Interface Included | Yes |
| Interface Type | Universal |
All other specifications 5
| Locking Type | B |
| Solution Type | Universal |
| TAA Compliant | No |
| UPC | 841872078090 |
| Certifications | UL Listed |
Resources
You'll need these with it
Single Electric Outlet Coupler
CMA502$80.80
C-Clamp
CMA362$135.20
I-Beam Clamp
CMA360$318.40
1.5 Inch to 1 Inch NPT Adapter
CMA151$29.60
Heavy Duty Swivel Adapter
CMA351$164.00
Internal Joist Ceiling Kit
CMA165$146.40
Truss Clamp
CMS380$138.40
Dual Electric Outlet Coupler
CMA504$106.40
2' x 2' Above Suspended Ceiling Storage Box and column drop with 2-Gang Filter & Surge
CMS492CP2$945.60
Extension Column and Ceiling Mount Kit
CMS443$164.80
2' x 2' Above Suspended Ceiling Storage Box with 2-Gang Filter & Surge
CMS492P2$827.20
SpeedConnect Above-Tile Suspended Ceiling Kit with 2-Gang Filter & Surge
CMS440P2$400.80
Verified fitment
Questions about this part
Will this mount fit my projector?
The RPMBUS is verified against 7,322 display models from 114 manufacturers, including Epson BrightLink 1485Fi, Optoma 4K500, Panasonic PT-AE1000E, and NEC HT 1100.
How does the security locking mechanism work?
This B version utilizes a Q-Lock Quick Release Lever which features an integrated key and lock system to provide enhanced security and quick access for servicing.
What is the weight limit for this mount?
The RPMBUS has a weight capacity of 50 lbs (22.7 kg).
Can I adjust the projector once it is mounted?
Yes, the mount features Centris Technology for fingertip positioning and independent roll, pitch, and yaw adjustments for precise registration.
Is there a technical drawing available for submittals?
Yes, you can access the RPMX Technical Drawing (PDF) or the RPM CAD Drawing (dwg) for submittal documentation.
