RPA Elite (Mount Only)
Ceiling projector mount assembly in white, featuring 50 lbs capacity and independent micro-adjustable roll, pitch, and yaw.

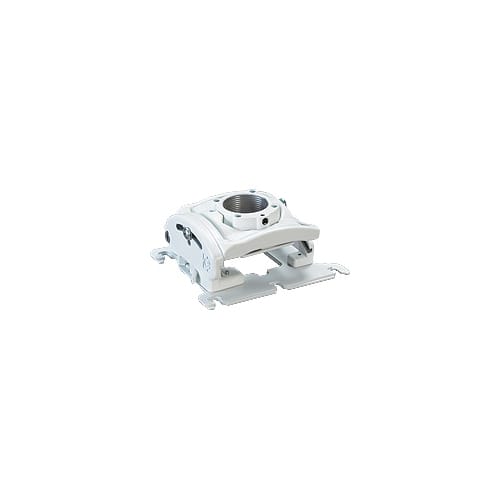

The Chief RPMA000W is the top assembly only for the RPA Elite series. This white ceiling mount assembly is engineered for rapid installation and precise projector registration through Microzone Adjustments, which is particularly beneficial for flush mount installations. Utilizing Centris Technology, the mount enables effortless positioning and self-adjusts to support varying projector weights. For servicing, the Q-Lock Quick Release Lever allows for quick connection and disconnection of the projector while maintaining preset adjustments. The integrated cable management system is built into the mount without the need for extra accessories. This assembly provides independent roll, pitch, and yaw for comprehensive positioning. Because this is the mount assembly only, you must also purchase the appropriate interface bracket to connect to your specific projector model, such as the SLMUW universal bracket.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Shipping Dimensions | 9.25" x 9.25" x 4.2" (235 x 235 x 106.7 mm) |
| Shipping Weight | 6 lbs (2.7 kg) |
| Weight Capacity | 50 lbs (22.7 kg) |
| Adjustability | Independent Roll-Pitch-YawMicro-Adjustable |
| Application | Ceiling |
| Color | White |
| Interface Included | No |
| Locking Type | A |
| Solution Type | Universal and Custom |
| TAA Compliant | No |
| UPC | 841872078007 |
| Certifications | UL Listed |
Resources
You'll need these with it
Single Electric Outlet Coupler
CMA502$80.80
C-Clamp
CMA362$135.20
I-Beam Clamp
CMA360$318.40
1.5 Inch to 1 Inch NPT Adapter
CMA151$29.60
Heavy Duty Swivel Adapter
CMA351$164.00
Internal Joist Ceiling Kit
CMA165$146.40
Truss Clamp
CMS380$138.40
Dual Electric Outlet Coupler
CMA504$106.40
2' x 2' Above Suspended Ceiling Storage Box and column drop with 2-Gang Filter & Surge
CMS492CP2$945.60
Extension Column and Ceiling Mount Kit
CMS443$164.80
2' x 2' Above Suspended Ceiling Storage Box with 2-Gang Filter & Surge
CMS492P2$827.20
SpeedConnect Above-Tile Suspended Ceiling Kit with 2-Gang Filter & Surge
CMS440P2$400.80
Questions about this part
Does this mount include the projector interface bracket?
No, the RPMA000W is the mount assembly only. You will need to purchase a separate interface bracket, such as the SLMUW universal bracket, to connect to your projector.
How do I adjust the projector position after installation?
The mount features Microzone Adjustments and Centris Technology, providing independent micro-adjustable roll, pitch, and yaw for fast, precise positioning.
What is the maximum weight this mount can support?
This mount assembly has a weight capacity of 50 lbs (22.7 kg).
How does the Q-Lock system assist with projector maintenance?
The Q-Lock Quick Release Lever allows for quick connection and disconnection of the projector for service or enhanced security without losing your preset adjustments.
Is the RPMA000W UL listed?
Yes, this product is UL Listed.
