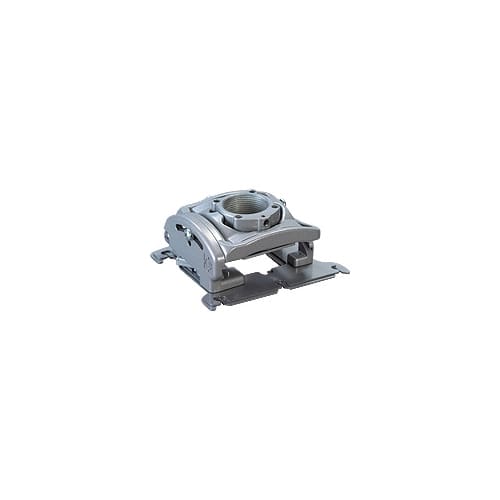

RPM Elite (Mount Only) - RPMA000S
Ceiling-mounted projector assembly with independent micro-adjustability, Centris technology, and keyed locking security
The Chief RPMA000S is the top assembly only for the RPM Elite series of ceiling projector mounts. This mount is engineered to maximize installation speed and projector security through advanced mechanical features. It utilizes Centris Technology to allow for effortless fingertip positioning and self-adjusts to accommodate various projector weights. For precise registration, especially in flush mount installations, Microzone Adjustments provide micro-adjustable roll, pitch, and yaw. This unit features integrated cable management and a Q-Lock Quick Release Lever, allowing for rapid connection and disconnection of the projector for maintenance or enhanced security. The assembly includes an integrated key and lock system (Locking Type A) for added protection. Note that this SKU is the mount assembly only and does not include an interface bracket; installers must pair this with a compatible universal interface like the SLMUS or a custom model identified via Chief's MountFinder™.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Shipping Dimensions | 13.25" x 13.25" x 3"(336.6 x 336.6 x 76.2 mm) |
| Shipping Weight | 6 lbs (2.7 kg) |
| Weight Capacity | 50 lbs (22.7 kg) |
| Adjustability | Independent Roll-Pitch-YawMicro-Adjustable |
| Application | Ceiling |
| Color | Silver |
| Interface Included | No |
| Locking Type | A |
| Solution Type | Universal and Custom |
| TAA Compliant | No |
| UPC | 841872077994 |
| Certifications | UL Listed |
Resources
You'll need these with it
Single Electric Outlet Coupler
CMA502$80.80
C-Clamp
CMA362$135.20
I-Beam Clamp
CMA360$318.40
1.5 Inch to 1 Inch NPT Adapter
CMA151$29.60
Heavy Duty Swivel Adapter
CMA351$164.00
Internal Joist Ceiling Kit
CMA165$146.40
Truss Clamp
CMS380$138.40
Dual Electric Outlet Coupler
CMA504$106.40
2' x 2' Above Suspended Ceiling Storage Box and column drop with 2-Gang Filter & Surge
CMS492CP2$945.60
Extension Column and Ceiling Mount Kit
CMS443$164.80
2' x 2' Above Suspended Ceiling Storage Box with 2-Gang Filter & Surge
CMS492P2$827.20
SpeedConnect Above-Tile Suspended Ceiling Kit with 2-Gang Filter & Surge
CMS440P2$400.80
Questions about this part
What do I need to buy to complete this installation?
This SKU is the mount assembly only. You must also purchase a compatible interface bracket, such as the SLMUS universal interface, or a specific custom model.
How do I adjust the projector once it is mounted?
The RPMA000S features Centris Technology for fingertip positioning and Microzone Adjustments for precise, micro-adjustable roll, pitch, and yaw.
Is this mount secure for high-traffic areas?
Yes, it features the Q-Lock Quick Release Lever with an integrated key and lock system for enhanced security and easier servicing.
Can I access the projector lamp or filter without removing the unit?
The design allows for quick connect/disconnect for convenient lamp and filter access on most projectors without removing the assembly.
Does the RPMA000S include the interface for the projector?
No, this is the mount assembly only and the interface bracket is not included.
