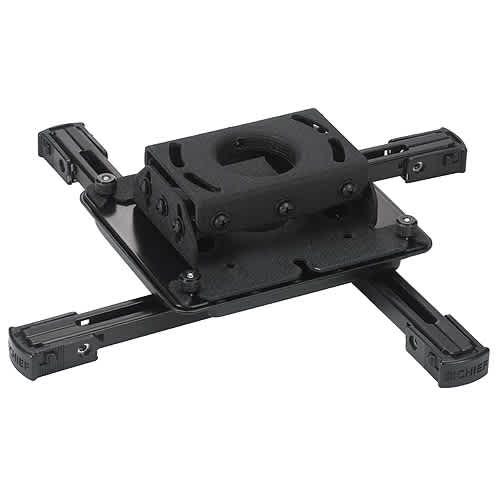

Universal RPA Ceiling Projector Mount - RPAU
Universal ceiling projector mount featuring independent roll, pitch, and yaw adjustments and All-Points Security hardware
The Chief RPAU is a high-performance universal ceiling projector mount used extensively in offices, schools, and residential environments. This mount is designed for rapid and precise projector registration through independent roll, pitch, and yaw adjustments. Once the projector is positioned, the quick connect/disconnect feature allows for convenient access to lamps and filters on most projectors without losing preset adjustments. For installation, this model offers significant flexibility: it can be flush-mounted to a ceiling, installed using 0.25" threaded rods, or used with a 1.5" NPT threaded extension column. To protect against theft, the RPAU incorporates All-Points Security exclusive steel-into-steel locking hardware at all key connection points. This unit includes integrated cable management to maintain a clean installation without the need for additional accessories. The mount is UL Listed and supports a weight capacity of 50 lbs (22.7 kg).
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Shipping Dimensions | 10.25" x 10.25" x 4"(260.4 x 260.4 x 101.6 mm) |
| Shipping Weight | 5.62 lbs (2.6 kg) |
| Weight Capacity | 50 lbs (22.7 kg) |
| Adjustability | Independent Roll-Pitch-Yaw |
| Application | Ceiling |
| Color | Black |
| Interface Type | Universal |
| Solution Type | Universal |
| TAA Compliant | No |
| Certifications | UL Listed |
Resources
You'll need these with it
CMS0305, 3-5' Adjustable Extension Column, Pole
CMS0305$185.60
Structural Ceiling Plate
CMA345$208.00
8 Inch (203 mm) Ceiling Plate
CMA110$75.20
CMS0406, 4-6' Adjustable Extension Column, Pole
CMS0406$193.60
8 Inch (203 mm) Ceiling Plate with Adjustable 1.5 Inch NPT Column in Black
CMA100$208.00
CMS003, 3 Inch Fixed Extension Column, Pole
CMS003$22.40
Truss Clamp
CMS380$138.40
6 Inch (152 mm) Speed-Connect Ceiling Plate
CMS115$63.20
Angled Ceiling Plate
CMA395$66.40
Single Electric Outlet Coupler
CMA502$80.80
C-Clamp
CMA362$135.20
Verified fitment
Questions about this part
Will the RPAU mount work with my projector?
The RPAU is verified against 7,319 display models from 114 manufacturers, including Epson BrightLink 1485Fi, Optoma 4K400x, Panasonic PT-AE100U, NEC HT 1100, and BenQ 7765PA.
How do I adjust the projector once it is mounted?
You can perform quick and precise registration using the independent roll, pitch, and yaw adjustments built into the mount.
Can I use this with an extension column?
Yes, you can mount this using 1.5" NPT threaded extension columns or 0.25" threaded rods. Compatible columns include the CMS0305 and CMS0406.
Does this mount maintain alignment when I need to change a lamp?
Yes, the quick connect/disconnect feature maintains your registration and does not affect preset adjustments when accessing lamps or filters.
What is the maximum weight this mount can support?
The RPAU has a weight capacity of 50 lbs (22.7 kg) for ceiling applications.
