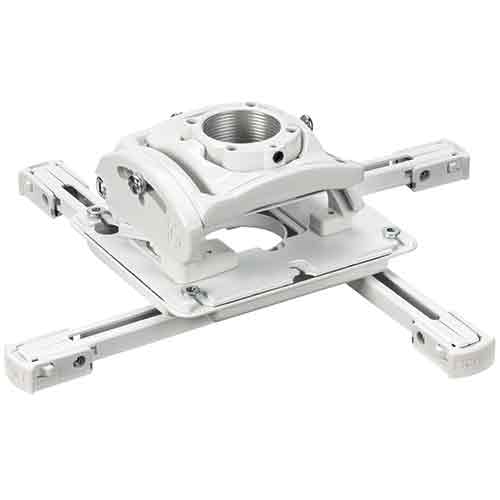

RPA Elite Universal Projector Mount with Keyed Locking (C version) - RPMCUW
White universal ceiling projector mount with keyed Q-Lock security, micro-adjustable Centris Technology, and 50 lbs capacity
The Chief RPMCUW is a white, universal ceiling projector mount designed for high-security environments requiring rapid installation and precise positioning. This Elite series mount utilizes Centris Technology, which allows for effortless fingertip positioning and self-adjusts to support various projector weights. It features Q-Lock Quick Release Lever technology, enabling installers to quickly connect or disconnect projectors for maintenance or lamp and filter access without losing registration or preset adjustments. This specific SKU features a Type C locking system with an integrated key and lock to enhance equipment security. The mount provides independent roll, pitch, and yaw, alongside micro-adjustable movements to facilitate fast registration, even in flush mount scenarios. Designed for ceiling applications, the RPMCUW has a 50 lbs (22.7 kg) weight capacity and includes an integrated universal interface. It is UL Listed and accommodates integrated cable management to maintain a clean installation without the need for additional accessories.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Shipping Dimensions | 10.25" x 10.25" x 5"(260.4 x 260.4 x 127 mm) |
| Shipping Weight | 7 lbs (3.2 kg) |
| Weight Capacity | 50 lbs (22.7 kg) |
| Adjustability | Independent Roll-Pitch-YawMicro-Adjustable |
| Application | Ceiling |
| Color | White |
| Interface Included | Yes |
| Interface Type | Universal |
All other specifications 5
| Locking Type | C |
| Solution Type | Universal |
| TAA Compliant | No |
| UPC | 841872078168 |
| Certifications | UL Listed |
Resources
You'll need these with it
8 Inch (203 mm) Offset Ceiling Plate
CMA330$66.40
8 Inch (203 mm) Ceiling Plate
CMA110$75.20
CMS0203, 2-3' Adjustable Extension Column, Pole
CMS0203$166.40
CMS003W, 3 Inch Fixed Extension Column, Pole
CMS003W$22.40
Offset Unistrut Adapter - CMA372
CMA372$66.40
Single Electric Outlet Coupler
CMA502$80.80
C-Clamp
CMA362$135.20
I-Beam Clamp
CMA360$318.40
1.5 Inch to 1 Inch NPT Adapter
CMA151$29.60
Heavy Duty Swivel Adapter
CMA351$164.00
Internal Joist Ceiling Kit
CMA165$146.40
Verified fitment
Questions about this part
Will the RPMCUW fit my projector?
This universal mount is verified against 7,322 display models from 114 manufacturers, including the Panasonic PT-AE100U, Epson BrightLink 436Wi, and Optoma 4K500.
How does the Q-Lock system work for servicing?
The Q-Lock Quick Release Lever allows for quick connect/disconnect of the projector for servicing while maintaining registration and preset adjustments.
Can I adjust the projector's position once it is mounted?
Yes, the mount features independent roll, pitch, and yaw alongside Microzone Adjustments for fast, precise projector registration.
What is required to complete this ceiling installation?
Depending on the ceiling type, you may need accessories such as the CMA110 8 Inch Ceiling Plate or a CMS445 Speed-Connect Suspended Ceiling Tile Replacement Kit.
What is the difference between the RPMCUW and other RPM series mounts?
The RPMCUW is the white version of the RPA Elite series utilizing the Type C locking option, whereas other models in the series offer RPMA and RPMB locking alternatives.
