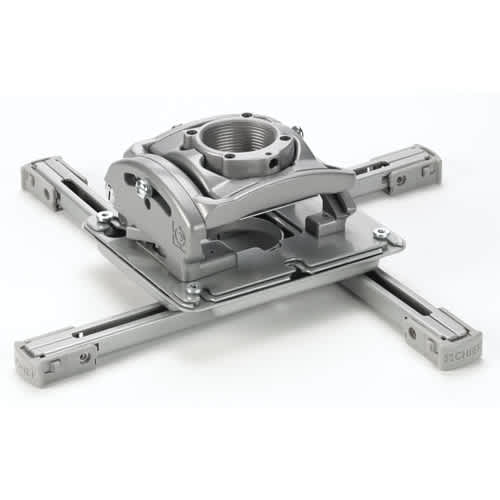

RPA Elite Universal Projector Mount with Keyed Locking (C version) - RPMCUS
Universal ceiling projector mount with integrated keyed locking and micro-adjustable positioning for high-security installations
The Chief RPMCUS is a professional-grade universal ceiling projector mount from the RPA Elite series, specifically engineered for high-security environments requiring controlled access. This C version features an integrated Q-Lock Quick Release Lever system with a built-in key and lock, providing enhanced security and efficient serviceability. It is designed to support a weight capacity of 50 lbs (22.7 kg) and includes a universal interface for broad compatibility. Using Centris Technology, installers can achieve effortless fingertip positioning that self-adjusts to accommodate different projector weights. The mount provides independent roll, pitch, and yaw adjustments, complemented by Microzone Micro-Adjustability to ensure precise projector registration even in flush mount installations. This model integrates cable management directly into the design to maintain a clean aesthetic. For those requiring specialized ceiling mounting, a wide range of accessories is available, such as the CMS445 Speed-Connect Suspended Ceiling Tile Replacement Kit or the CMA385 Internal Joist Mount.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Shipping Dimensions | 10.25" x 10.25" x 5"(260.4 x 260.4 x 127 mm) |
| Shipping Weight | 7 lbs (3.2 kg) |
| Weight Capacity | 50 lbs (22.7 kg) |
| Adjustability | Independent Roll-Pitch-YawMicro-Adjustable |
| Application | Ceiling |
| Color | Silver |
| Interface Included | Yes |
| Interface Type | Universal |
All other specifications 5
| Locking Type | C |
| Solution Type | Universal |
| TAA Compliant | No |
| UPC | 841872078151 |
| Certifications | UL Listed |
Resources
You'll need these with it
Single Electric Outlet Coupler
CMA502$80.80
C-Clamp
CMA362$135.20
I-Beam Clamp
CMA360$318.40
1.5 Inch to 1 Inch NPT Adapter
CMA151$29.60
Heavy Duty Swivel Adapter
CMA351$164.00
Internal Joist Ceiling Kit
CMA165$146.40
Truss Clamp
CMS380$138.40
Dual Electric Outlet Coupler
CMA504$106.40
2' x 2' Above Suspended Ceiling Storage Box and column drop with 2-Gang Filter & Surge
CMS492CP2$945.60
Extension Column and Ceiling Mount Kit
CMS443$164.80
2' x 2' Above Suspended Ceiling Storage Box with 2-Gang Filter & Surge
CMS492P2$827.20
SpeedConnect Above-Tile Suspended Ceiling Kit with 2-Gang Filter & Surge
CMS440P2$400.80
Verified fitment
Questions about this part
Will the RPMCUS fit my specific projector model?
This universal mount is verified against 7,322 display models from 114 manufacturers, including Panasonic PT-AE100E, Epson BrightLink 1480Fi, and Optoma 4K500.
How does the Q-Lock system work for servicing?
The Q-Lock Quick Release Lever allows for quick connection and disconnection of the projector for lamp or filter access, while the integrated key and lock system ensures the unit remains secure.
What is the maximum weight this mount can support?
The RPMCUS has a maximum weight capacity of 50 lbs (22.7 kg).
Can I adjust the projector's position after it is mounted?
Yes, it features Centris Technology for fingertip positioning and independent roll, pitch, and yaw adjustments, including Microzone adjustments for precise registration.
What additional accessories are needed for specialized ceiling installs?
Depending on the ceiling type, you may need accessories like the CMA165 Internal Joist Ceiling Kit or the CMS445 Speed-Connect Suspended Ceiling Tile Replacement Kit.
