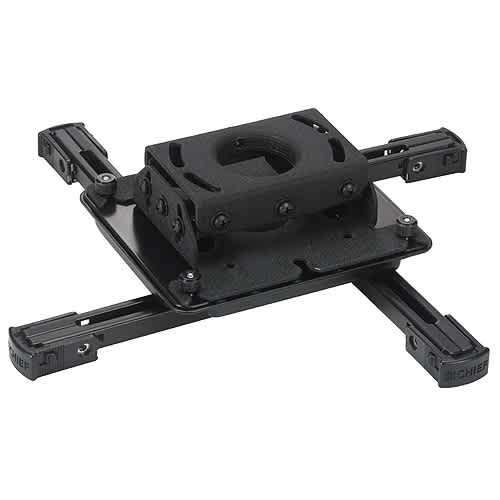

RPA Top Only (Black)
Ceiling projector mount top assembly in black with 50 lbs capacity and independent roll, pitch, and yaw adjustments
The Chief RPA000 is the top assembly only. To complete your installation, you will need an interface bracket that attaches directly to your projector. Use the Chief SLBU universal interface bracket or consult Chief's MountFinder™ to identify the specific model number required for your projector model. This black ceiling mount provides independent roll, pitch, and yaw adjustments to achieve precise projector registration. Once adjusted, the mount's All-Points Security steel-into-steel locking hardware at all key connection points helps protect the installation against theft. This TAA compliant assembly supports a weight capacity of 50 lbs (22.7 kg) and features integrated cable management to maintain a clean installation without needing additional accessories. Installation options include flush mounting to the ceiling, using 0.25" threaded rods, or utilizing a 1.5" NPT threaded extension column.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Shipping Dimensions | 9.5" x 9.25" x 3.5" (241.3 x 235 x 88.9 mm) |
| Shipping Weight | 2 lbs (0.9 kg) |
| Weight Capacity | 50 lbs (22.7 kg) |
| Adjustability | Independent Roll-Pitch-Yaw |
| Application | Ceiling |
| Color | Black |
| Solution Type | Universal and Custom |
| TAA Compliant | Yes |
| UPC | 841872050461 |
| Certifications | TAAUL Listed |
Resources
You'll need these with it
Single Electric Outlet Coupler
CMA502$80.80
C-Clamp
CMA362$135.20
I-Beam Clamp
CMA360$318.40
1.5 Inch to 1 Inch NPT Adapter
CMA151$29.60
Heavy Duty Swivel Adapter
CMA351$164.00
Internal Joist Ceiling Kit
CMA165$146.40
Truss Clamp
CMS380$138.40
Dual Electric Outlet Coupler
CMA504$106.40
2' x 2' Above Suspended Ceiling Storage Box and column drop with 2-Gang Filter & Surge
CMS492CP2$945.60
Extension Column and Ceiling Mount Kit
CMS443$164.80
2' x 2' Above Suspended Ceiling Storage Box with 2-Gang Filter & Surge
CMS492P2$827.20
SpeedConnect Above-Tile Suspended Ceiling Kit with 2-Gang Filter & Surge
CMS440P2$400.80
Questions about this part
What else do I need to buy to complete the projector mount installation?
This SKU is the top assembly only and does not include the projector interface bracket. You will need an SLBU universal interface bracket or a model-specific bracket identified via Chief's MountFinder™.
Can I change the projector lamp or filter without losing my alignment?
Yes. The quick connect/disconnect feature allows for easy access to lamps and filters while maintaining registration and preset adjustments.
How can this mount be attached to the ceiling?
The RPA000 offers multiple installation methods: it can be flush mounted to the ceiling, installed with 0.25" threaded rods, or paired with a 1.5" NPT threaded extension column.
Is the RPA000 theft-resistant?
The mount uses All-Points Security exclusive steel-into-steel locking hardware at all key connection points to help protect the unit against theft.
Does this mount require extra parts for cable management?
No, this assembly includes built-in cable management to handle wiring without the need for additional accessories.
