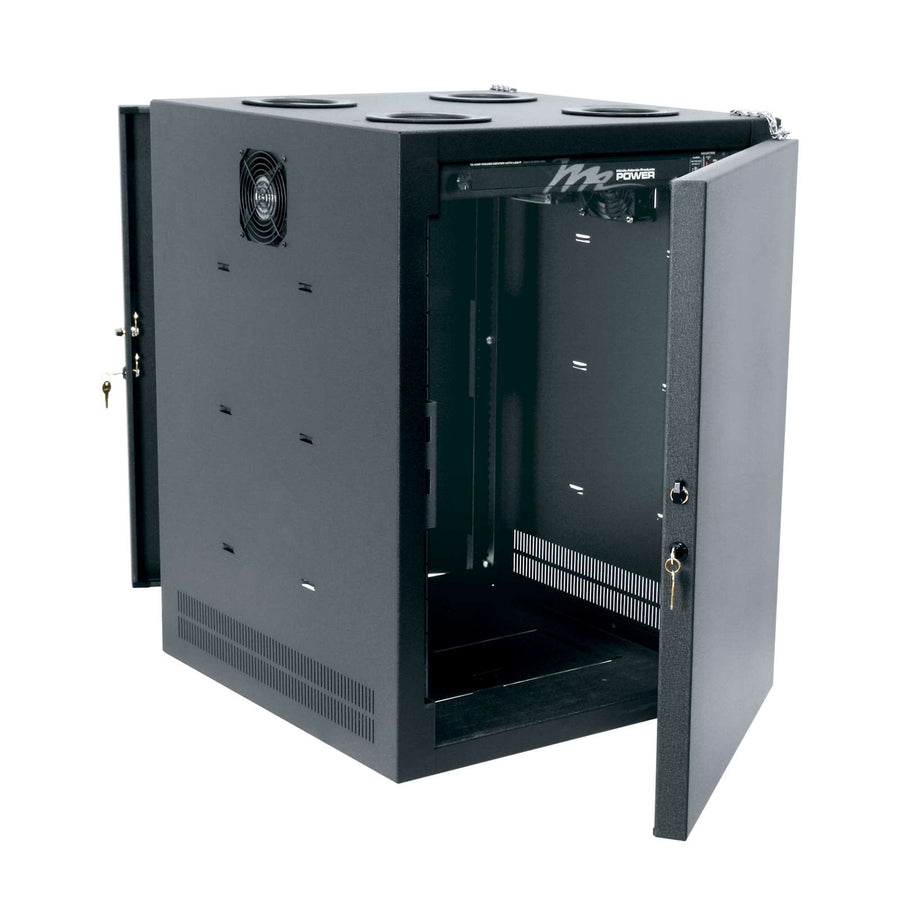

IDF Series Rack - IDF-TM-1624BK
16 RU overhead hanging rack for distributed systems, featuring dual exhaust fans and a PD-915R PDU
The IDF-TM-1624BK is a 16 RU intermediate distribution rack designed for mounting hubs, routers, and networking equipment in overhead locations like warehouses or retail outlets. This active component enclosure features a textured black powder coat finish and is TAA compliant and UL listed. For distributed system deployments, this rack can be mounted to building trusses or Unistrut® beams using 1/2” threaded rods (not included) or can be mounted directly to Unistrut® beams. The unit includes a PD-915R rackmount power distribution unit and two dual exhaust fans to extend equipment life. Access is managed through standard front and rear locking doors with safety chains. For cable management, the top of the enclosure features four integral glanded 4” cable pass-throughs, while the bottom features an aluminum plate with multiple UHF/VHF antenna knockouts for wireless antennae or dome cameras. The interior contains adjustable 10-32 threaded rackrails with numbered spaces for easy component placement.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| CFM | 110 |
| Depth | 28.73 in (73 cm) |
| Height | 31.13 in (79.1 cm) |
| Rack Units | 16 RU |
| Shipping Weight | 120 lbs (54.4 kg) |
| Usable Depth | 21 in (53.3 cm) |
| Usable Height | 28 in (71.1 cm) |
| Weight Capacity | 150 lbs (68 kg) |
All other specifications 8
| Width | 23.52 in (59.7 cm) |
| Component Type | Active |
| Federal Ops Country of Origin | USA |
| Finish | Textured Black Powder Coat |
| Rack Rail Type | 10-32 |
| TAA Compliant | Yes |
| UPC | 656747094415 |
| Certifications | TAAUL Listed |
Resources
You'll need these with it
2 RU Select Series UPS Backup Power, 1500VA
UPS-S1500R$1,598.40
Select Series PDU with RackLink™, 2 Outlet
RLNK-215$429.30
1 RU Select Series UPS Backup Power, 1000VA
UPS-S1000R$1,377.00
USC Universal Sequencing Controller 1 Space Sequencing Controller
USC-6R$1,044.90
Select Series UPS Backup Power Systems - UPS-SRBP-500
UPS-SRBP-500$351.00
MPR Module 15A, Controlled Stand-Alone
RLM-15-1CA$288.00
MPR Power Module 30A, L5-30R Twistlock
RLM30-L530-1$763.20
MPR Power Module 20A, L5-20R Twistlock
RLM30-L520-1$716.40
MPR Module 20A, Controlled Stand-Alone
RLM-20-1CA$306.00
Rackmount Power, 6 Outlet Control, 9 Outlet, 15A, & 2-Stage Surge Protection
PDC-915R-6$462.60
Rackmount Power, 2 Outlet Control, 9 Outlet, 15A, & 2-Stage Surge Protection
PDC-915R-2$462.60
3 RU Rack Vent Panel, Slotted with 20% Open Area
VTP-3$69.30
Questions about this part
What do I need to install the IDF-TM-1624BK?
You will need 1/2” threaded rods to mount the rack to a building truss or Unistrut® beam, as these rods are not included with the unit.
What is included with the IDF-TM-1624BK in the box?
This rack ships with an included PD-915R rackmount power distribution unit and a safety lanyard to assist with secure installation.
How can I mount wireless equipment to this rack?
The bottom aluminum plate features multiple UHF/VHF antenna knockouts, making it suitable for mounting wireless antennae or dome cameras.
Does this rack support cable entry through the top?
Yes, the rack top includes four integral glanded 4” cable pass-throughs for organized cable management.
What is the weight capacity for this 16 RU enclosure?
The IDF-TM-1624BK has a total weight capacity of 150 lbs (68 kg).
