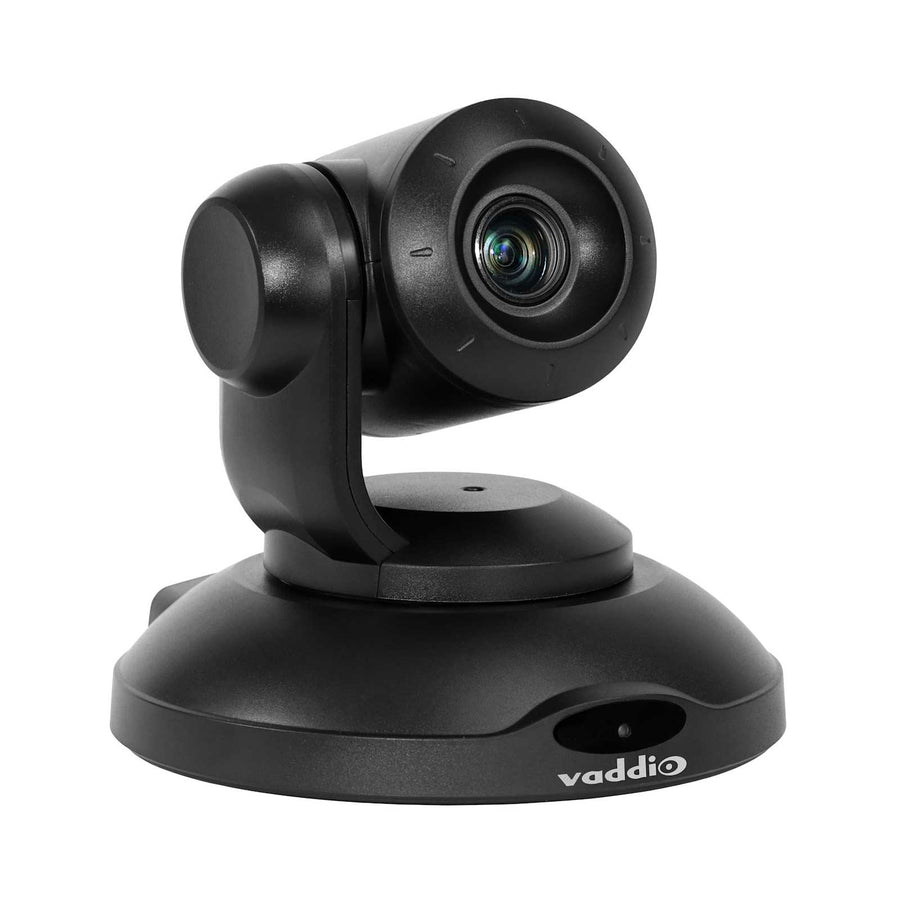

EasyIP 10 Camera
HD PTZ camera with 10x optical zoom, 67-degree wide field of view, and PoE+ connectivity
The Vaddio EasyIP 10 Camera is an integral part of the EasyIP Ecosystem, providing a streamlined AV-over-IP solution for videoconferencing in small and medium rooms. This PTZ camera delivers high-definition 1080p/60 resolution feeds to UC soft clients through a single 1 Gb PoE+ connection, which eliminates the need for expensive USB extensions. As part of a larger system, camera signals can be sent to an EasyIP Decoder, EasyIP Mixer, or EasyIP Dock for web-based conferencing, or to an EasyIP Tx/Rx for HDMI output. The unit features a 1x2_8 Exmor CMOS sensor, providing exceptional color reproduction and fine detail. With a 67° wide end-to-7.6° tele end field of view and 10x optical zoom, it is suitable for corporate, healthcare, government, and education environments. Control is managed through an intuitive, browser-based user interface via an EasyIP Decoder, and the stepper motors provide precise pan and tilt movement. For users requiring higher zoom capabilities or HDMI signals directly into an EasyIP Mixer PIP, the EasyIP 20 Camera is the recommended alternative.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 5.5 in (14 cm) |
| Height | 6.3 in (16 cm) |
| Operating Temperature | 32° to 104°F (0° to 40°C) |
| Product Weight | 3 lbs (1.4 kg) |
| Shipping Dimensions | 14" x 14" x 18" (355.6 x 355.6 x 457.2 mm) |
| Shipping Weight | 12 lbs (5.4 kg) |
| Width | 6.1 in (15.5 cm) |
| Camera Type | PTZ |
All other specifications 29
| Color | Black |
| Estimated Room Size | Medium RoomSmall Room |
| Field of View | 67° Wide End to 7.6° Tele End |
| Field of View Wide | Greater than 70 |
| Focus System | AutoManual |
| Gain | AutoManual |
| Image Sensor Type | 1-2_8 Exmor CMOS |
| Invertible | Yes |
| Manufacturer | Vaddio |
| Max Resolution | 1080p 60 |
| Minimum Illumination | 0.4 Lux (F1.6) |
| OneLINK Compatibility | No |
| Pan and Tilt Range | Tilt: +90· to -30°Pan: ±165° |
| Pan and Tilt Speed | 0.35°/sec - 90°/sec |
| Pixels | 2.14 Megapixel |
| Power Supply | PoE+ |
| Power Type | PoE+ |
| Preset Positions | 16 Custom Home Position |
| PTZ Motors | Stepper Motors |
| Quick-Connect Compatibility | No |
| Signal Type | EasyIP |
| Solution Type | Camera Only |
| TAA Compliant | Yes |
| Tri-Sync Motion | No |
| UPC | 840077505745 |
| White Balance | AutoManualOne Push |
| Zoom | 10x |
| Certifications | CEFCCTAAUL Listed |
| Warranty | 3 years |
Resources
You'll need these with it
Suspended Ceiling Mount for Vaddio Cameras
535-2000-206$141.30
Thin Profile Wall Mount for RoboSHOT PTZ Cameras
535-2000-240$177.30
Thin Profile Wall Mount Long
535-2000-245$177.30
Offset Drop-Down Mount for RoboSHOT and HD-Series PTZ Cameras
535-2000-296$443.70
1ft (0.3m) Core Series High Speed HDMI® Cable with Ethernet
CG56781$9.99
EasyIP 10 Base Kit with Professional IP PTZ Camera
999-30201-000$4,140.00
EasyIP Switch
999-11208-000$771.30
EasyIP CeilingMIC D Microphone
999-85820-000$847.80
QuickCAT Universal Suspended Ceiling Camera Mount
999-82000-000$675.90
Vaddio Device Controller
999-42300-000$855.00
IN-Wall Enclosure for RoboSHOT PTZ Cameras
999-2225-118$351.90
Vaddio Ceiling Speakers
999-85600-000$450.90
Questions about this part
What do I need to power and connect the Vaddio EasyIP 10 Camera?
The camera is powered via PoE+ and requires a 1 Gb PoE+ switch for network connectivity. It is designed to work within the EasyIP Ecosystem for AV-over-IP deployment.
What is the field of view for this PTZ camera?
The EasyIP 10 Camera features a 67° wide field of view that narrows to a 7.6° tele end through its 10x optical zoom.
Is the Vaddio EasyIP 10 Camera TAA compliant?
Yes, this camera is TAA compliant and is also UL Listed and FCC certified.
How do I control the pan and tilt of the camera?
The camera uses stepper motors for movement and can be controlled through an intuitive browser-based interface when connected to an EasyIP Decoder.
What are the mounting options for the EasyIP 10?
This SKU includes a thin profile wall mount. Compatible accessories include the QuickCAT Universal Suspended Ceiling Camera Mount and several RoboSHOT/HD-Series wall and drop-down mounts.
