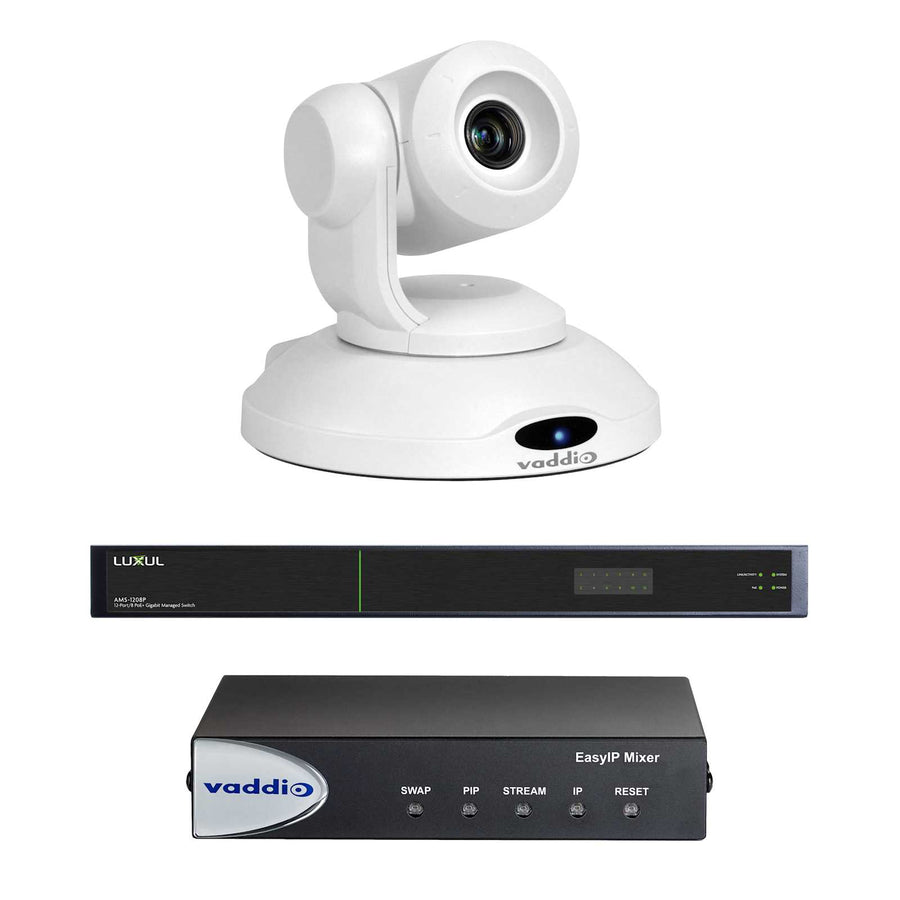

EasyIP 10 Mixer Base Kit 999-60321-000W
AV-over-IP classroom system containing an EasyIP 10 Camera, EasyIP Mixer, and EasyIP Switch for small to medium room environments
The Vaddio EasyIP 10 Mixer Base Kit 999-60321-000W is a complete AV-over-IP solution designed to simplify multi-camera installations in small to medium rooms. This bundle includes an EasyIP 10 PTZ Camera, an EasyIP Mixer, and a preconfigured PoE+ managed switch, providing all the necessary components to begin a professional system design immediately. The EasyIP Mixer serves as a compact A/V switcher that handles up to four EasyIP Camera video feeds alongside a dedicated HDMI source for content sharing. It features a 4x4 Dante Audio matrix with a 10x10 cross-point audio matrix, allowing for scalable, networked audio integration. The included PTZ camera provides a 10x zoom and a field of view ranging from 67° wide to 7.6° tele. For versatile distribution, the system delivers concurrent 1080p/60 resolution via both USB 3.0 Type B and HDMI outputs. Control is managed through a flexible range of methods, including the intuitive web-based UI, RS232, Telnet, USB, and trigger inputs. This TAA-compliant system is an ideal replacement for complex HDMI cable runs, utilizing category cabling to simplify routing and installation in modern conference or classroom spaces.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Operating Temperature | 32° to 104°F (0° to 40°C) |
| Shipping Dimensions | 23" x 23" x 15" (584.2 x 584.2 x 381 mm) |
| Shipping Weight | 24 lbs (10.9 kg) |
| 3rd Party Control | RS232TelnetTrigger |
| Bridged Signal | Audio and Video |
| Camera Type | PTZ |
| Color | White |
| Control Method | RS232TelnetTriggerUSBWeb UI |
All other specifications 26
| Estimated Room Size | Medium RoomSmall Room |
| Field of View | 67° Wide End to 7.6° Tele End |
| Field of View Wide | Greater than 70 |
| Gain | AutoManual |
| Image Sensor Type | 1/2.8 Exmor CMOS |
| Input Ports | AudioHDMIMic Level AudioNetworkRS232 |
| Invertible | Yes |
| Manufacturer | Vaddio |
| Max Resolution | 1080p 60 |
| Minimum Illumination | 0.4 Lux (F1.6) |
| OneLINK Compatibility | No |
| Output Ports | AudioHDMINetworkUSB 3.0 Type B |
| Pan and Tilt Range | Tilt: +90· to -30°Pan: ±165° |
| Power Cord | US Cord |
| Power Supply | PoE+ Midspan Power Injector |
| Power Type | PoE+ |
| Quick-Connect Compatibility | QCCUQDVI |
| Signal Type | AudioDante AudioEasyIPHDMIRS 232USB 3.0 |
| Solution Type | Conference Room System |
| Special Features | Audio IOPIP |
| TAA Compliant | Yes |
| Tri-Sync Motion | No |
| UPC | 840077506551 |
| Zoom | 10x |
| Certifications | CEFCCTAA |
| Warranty | 3 years |
Resources
You'll need these with it
EasyIP Tx/Rx HDMI Encoder or Decoder
999-60600-000$788.40
Undermount Brackets for Vaddio 1/2 Rack Unit Devices
998-6000-005$44.10
EasyIP 10 Camera
999-30200-000$3,042.00
Dual 1/2 Rack Mounting Kit
998-6000-006$114.30
EasyIP CeilingMIC D Microphone
999-85820-000$847.80
Suspended Ceiling Mount for Vaddio Cameras
535-2000-206$141.30
QuickCAT Universal Suspended Ceiling Camera Mount
999-82000-000$675.90
Thin Profile Wall Mount for RoboSHOT PTZ Cameras
535-2000-240$177.30
Vaddio Device Controller
999-42300-000$855.00
IN-Wall Enclosure for RoboSHOT PTZ Cameras
999-2225-118$351.90
Vaddio Ceiling Speakers
999-85600-000$450.90
EasyIP TableMIC D Microphone
999-85300-000$847.80
Questions about this part
What cameras and microphones work with this system?
This kit includes one EasyIP 10 Camera, one EasyIP Mixer, and one EasyIP Switch. For audio, it is compatible with EasyIP CeilingMIC D Dante microphones like part 999-85820-000.
Will this kit work for a large lecture hall or a small classroom?
This base kit is specifically sized for small to medium rooms. For applications requiring more zoom or higher capacity, consider the EasyIP 20 Mixer Base Kit.
How do I control the camera and mixer settings?
You can manage the system using the intuitive web-based UI or via RS232, Telnet, and USB. It also supports trigger inputs for automation via devices like the StepVIEW Mat.
Can I output video to a PC and a projector at the same time?
Yes. The EasyIP Mixer provides concurrent 1080p/60 USB 3.0 and HDMI outputs for multipurpose video distribution and simultaneous recording to a local PC.
Is the EasyIP 10 Mixer Base Kit TAA compliant?
Yes, this kit is TAA compliant and carries CE and FCC certifications.
