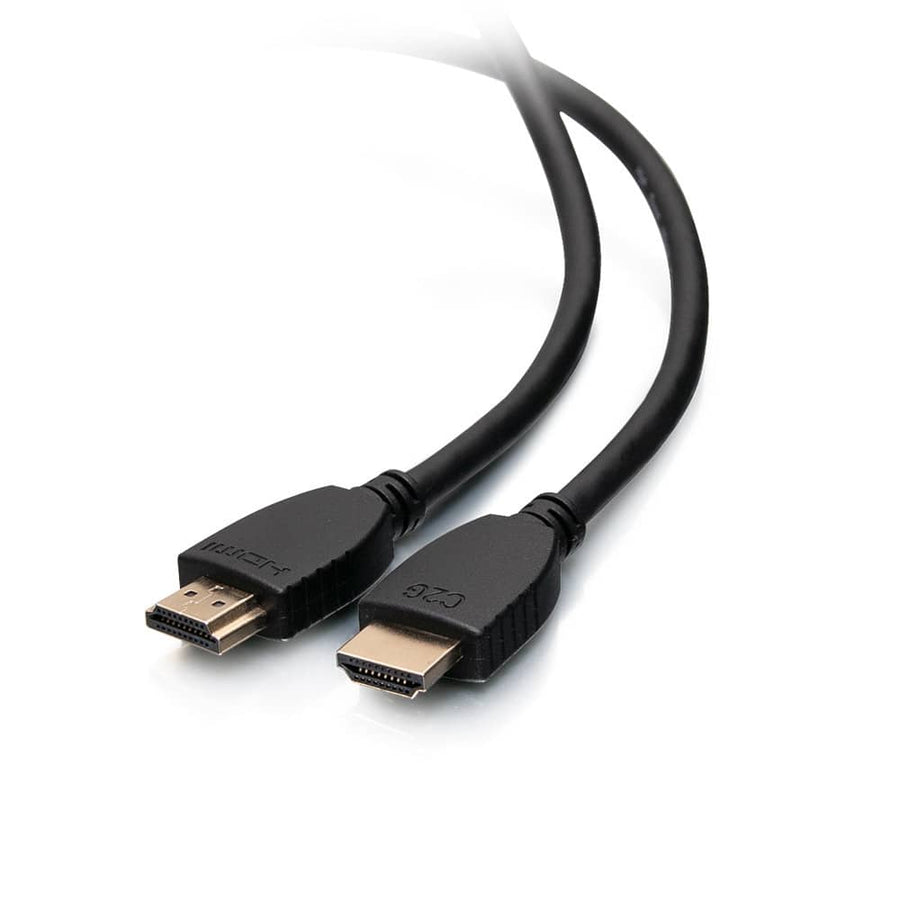

1ft (0.3m) Core Series High Speed HDMI® Cable with Ethernet
1ft (0.3m) high speed HDMI cable supporting 4K @ 60Hz and 18 Gbps data transfer rate
The C2G CG56781 is a 1ft (0.3m) Core Series high speed HDMI cable designed to facilitate high-performance video and audio connections in tight spaces. This cable supports video resolutions up to 4K @ 60Hz (4096 x 2160) and provides a data transfer rate of 18 Gbps. It is engineered to support 3D video and 32 audio channels to provide an immersive viewing experience. For advanced device integration, this cable includes Ethernet capabilities, allowing Ethernet-enabled HDMI devices to access interactive online content or undergo firmware updates. It also supports Consumer Electronic Control (CEC) extensions, which permit the control of multiple consumer electronics through a single control point. Built with solid copper conductors and gold plated connectors for enhanced durability and electrical conductivity, this cable also features a VW-1 rated jacket. This specific SKU is part of the Core Series, which is available in multiple length options to suit different installation requirements.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Bend Radius | 1.65 in (42 mm) |
| Cable Diameter | 0.24 in (6 mm) |
| Cable Length | 1 ft (0.3 m) |
| Package Count | 1 |
| Shipping Weight | 0.08 lbs (0 kg) |
| Cable Type | HDMI |
| Color | Black |
| Conductor Material | Copper |
All other specifications 11
| Conductor Stranding | Solid |
| Connector 1 | (1) HDMI Male |
| Connector 2 | (1) HDMI Male |
| Jacket Rating | VW-1 Rated |
| Signal Type | HDMI |
| TAA Compliant | No |
| UPC | 757120567813 |
| Video Resolution | 4K @ 60Hz |
| Certifications | NDAA 889Prop 65REACHRoHSTSCA |
| Data Transfer Rate | 18 GBPS |
| Warranty | Lifetime |
Resources
You'll need these with it
1ft (0.3m) Plus Series Slim Flexible High Speed HDMI® Cable with Ethernet
CG41361$13.99
1ft (0.3m) Performance Series Ultra Flexible High Speed HDMI® Cable with Ethernet
C2G10373$16.99
HDMI® HDBaseT + RS232 and IR over Cat Extender Single Gang Wall Plate Transmitter to Ultra-Slim Box Receiver - 4K 60Hz
C2G30025$470.99
HDMI over Cat Extender Box Transmitter to Box Receiver - 4K 60Hz
C2G60220$266.99
HDMI Over Cat5/6 Extender up to 164ft (50m)
CG60180$198.99
2-Port HDMI® Distribution Amplifier Splitter - 4K 60Hz
C2G41600$190.99
HDMI® Male to VGA Female Adapter Converter Dongle
CG41350$58.99
2-Port HDMI® Distribution Amplifier Splitter - 4K 30Hz
CG41057$88.99
HDMI® HDBaseT + USB-C® Data and Video Over Cat Extender Wall Plate Transmitter to Box Receiver – 4k
C2G31029$725.99
Questions about this part
Will this HDMI cable support 4K video at 60Hz?
Yes, the CG56781 supports video resolutions up to 4K @ 60Hz (4096 x 2160) with an 18 Gbps data transfer rate.
What is the difference between this and the Plus Series HDMI cables?
This is a Core Series cable. For more flexibility in tight installation spaces, you may consider the CG41361 Plus Series Slim Flexible high speed HDMI cable.
Does this cable support CEC and audio features?
Yes, this cable supports CEC extensions for device control, 32 audio channels for immersive sound, and 3D video support.
What do I need to install this HDMI cable?
This is a plug-and-play cable requiring no special tools for installation, though a screwdriver may be needed if mounting related hardware nearby.
Is this cable TAA compliant?
No, this specific SKU is not TAA compliant.
