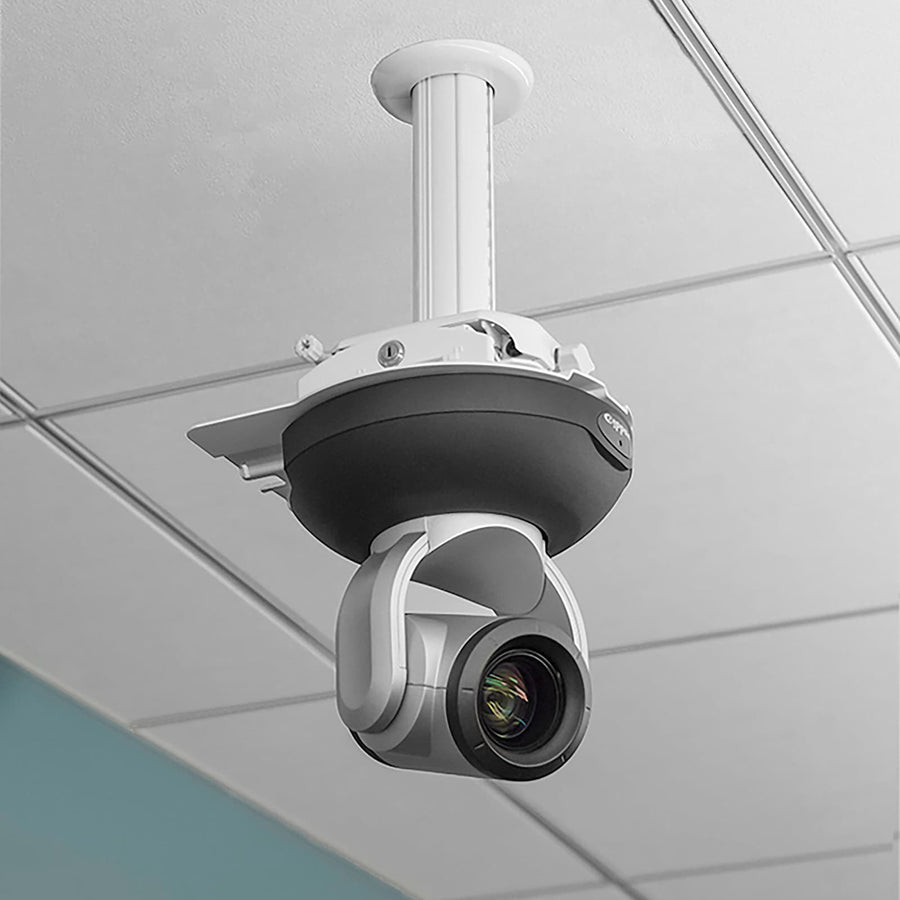

QuickCAT Universal Suspended Ceiling Camera Mount
Universal ceiling mount for most invertible PTZ and fixed cameras, featuring a quick-release lever and integrated security lock
The Vaddio 999-82000-000 is a universal ceiling mount designed for the secure installation of professional AV equipment in suspended ceiling environments. This mounting solution is built to integrate with 2x2', 2x4', 60x60 cm, and 62.5x62.5 cm ceiling grids, and is also suitable for use with irregular grid layouts. It provides an adjustable height range of 0 to 12" (0 to 305 mm), allowing for precise camera positioning and flexible deployment. For rapid installation and maintenance, the Q-Lock Quick Release Lever enables quick connect and disconnect of the camera, while an integrated key and lock system provides enhanced security for the hardware. This mount is TAA compliant and is compatible with a wide array of invertible pro AV cameras, including various Vaddio models such as the RoboSHOT 20 and 40 UHD, and several Sony, Panasonic, and Cisco models. It is also verified for use with many fixed and PTZ cameras from manufacturers including Marshall and Aver.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 24.9 in (63.3 cm) |
| Height | 19.8 in (50.3 cm) |
| Operating Temperature | 32° to 104°F (0° to 40°C) |
| Product Weight | 14 lbs (6.4 kg) |
| Shipping Dimensions | 30" x 9" x 11.25" (762 x 228.6 x 285.8 mm) |
| Shipping Weight | 19.5 lbs (8.9 kg) |
| Width | 7.25 in (18.4 cm) |
| Application | Ceiling |
All other specifications 8
| Color | White |
| Compatible With | CiscoOtherPanasonicPolycomSonyVaddio |
| OneLINK Compatibility | No |
| Quick-Connect Compatibility | No |
| TAA Compliant | Yes |
| UPC | 840077501556 |
| Certifications | CEFCCTAA |
| Warranty | 3 years |
Resources
Verified fitment
Questions about this part
Will this mount work with my Vaddio RoboSHOT camera?
Yes, it is compatible with several Vaddio models including the RoboSHOT 20 and 40 UHD, as well as the RoboSHOT 12/12E and 30/30E.
What kind of ceiling grid does this mount fit?
The QuickCAT is designed for suspended ceilings and fits 2x2', 2x4', 60x60 cm, and 62.5x62.5 cm grids, including irregular grid types.
How do I attach and remove the camera quickly?
The mount features a Q-Lock Quick Release Lever that allows you to connect and disconnect the camera for easier servicing and installation.
Can I extend the cable run for this camera mount?
While this specific SKU is the mount alone, Vaddio offers QuickCAT packages with a OneLINK extension system to extend power, video, and control up to 100 m (328 ft) via a single Cat-5e/6 cable.
Is this mount TAA compliant for government projects?
Yes, the 999-82000-000 is TAA compliant and carries CE and FCC certifications.
