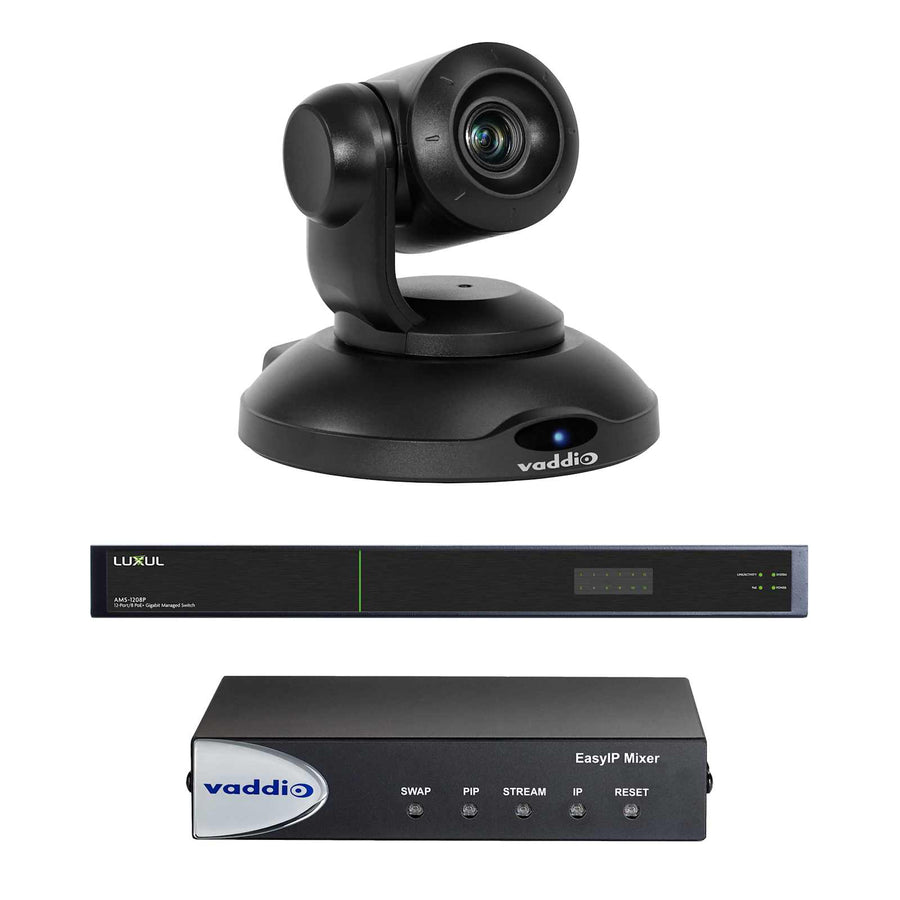

EasyIP 10 Mixer Base Kit 999-60321-000
Turnkey AV-over-IP base kit featuring an EasyIP 10 Camera, Mixer, and PoE+ Switch for medium and small rooms
The Vaddio 999-60321-000 EasyIP 10 Mixer Base Kit provides a complete AV-over-IP classroom system in a single, easy-to-order bundle. Designed to simplify complex multi-camera installations in small and medium rooms, this kit includes one EasyIP 10 Camera, one EasyIP Mixer, and one preconfigured EasyIP Switch. The system replaces traditional long HDMI cable runs with flexible category cabling, utilizing an intuitive web-based user interface for video and audio routing. The EasyIP Mixer functions as a compact A/V switcher that supports four EasyIP camera video feeds in addition to an HDMI source for content sharing. It features a 4x4 Dante Audio matrix with a 10x10 cross-point to integrate scalable networked audio, such as EasyIP CeilingMIC D microphones. For versatile distribution, the kit offers concurrent 1080p/60 USB 3.0 and HDMI outputs, allowing simultaneous local recording and presentation to a projector. This TAA-compliant solution streamlines production through advanced automation and flexible control via RS232, Telnet, USB, or web interface.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Operating Temperature | 32° to 104°F (0° to 40°C) |
| Shipping Dimensions | 22" x 12" x 20" (558.8 x 304.8 x 508 mm) |
| Shipping Weight | 24 lbs (10.9 kg) |
| 3rd Party Control | RS232TelnetTrigger |
| Bridged Signal | Audio and Video |
| Camera Type | PTZ |
| Color | Black |
| Control Method | RS232TelnetTriggerUSBWeb UI |
All other specifications 26
| Estimated Room Size | Medium RoomSmall Room |
| Field of View | 67° Wide End to 7.6° Tele End |
| Field of View Wide | Greater than 70 |
| Gain | AutoManual |
| Image Sensor Type | 1/2.8 Exmor CMOS |
| Input Ports | AudioHDMIMic Level AudioNetworkRS232 |
| Invertible | Yes |
| Manufacturer | Vaddio |
| Max Resolution | 1080p 60 |
| Minimum Illumination | 0.4 Lux (F1.6) |
| OneLINK Compatibility | No |
| Output Ports | AudioHDMINetworkUSB 3.0 Type B |
| Pan and Tilt Range | Tilt: +90· to -30°Pan: ±165° |
| Power Cord | US Cord |
| Power Supply | PoE+ Midspan Power Injector |
| Power Type | PoE+ |
| Quick-Connect Compatibility | QCCUQDVI |
| Signal Type | AudioDante AudioEasyIPHDMIRS 232USB 3.0 |
| Solution Type | Conference Room System |
| Special Features | Audio IOInfoCommPIP |
| TAA Compliant | Yes |
| Tri-Sync Motion | No |
| UPC | 840077506582 |
| Zoom | 10x |
| Certifications | CEFCCTAA |
| Warranty | 3 years |
Resources
You'll need these with it
Suspended Ceiling Mount for Vaddio Cameras
535-2000-206$141.30
EasyIP CeilingMIC D Microphone
999-85810-000$847.80
EasyIP TableMIC D Microphone
999-85300-000$847.80
EasyIP Tx/Rx HDMI Encoder or Decoder
999-60600-000$788.40
EasyIP 10 Camera
999-30200-000$3,042.00
Vaddio Ceiling Speakers
999-85600-000$450.90
Thin Profile Wall Mount for RoboSHOT PTZ Cameras
535-2000-240$177.30
Thin Profile Wall Mount Tall
535-2000-246$177.30
Thin Profile Wall Mount Long
535-2000-245$177.30
Offset Drop-Down Mount for RoboSHOT and HD-Series PTZ Cameras
535-2000-296$443.70
IN-Wall Enclosure for RoboSHOT PTZ Cameras
999-2225-118$351.90
DomeVIEW HD Indoor Flush Dome Enclosure for RoboSHOT and HD-Series PTZ Cameras
998-9000-200$1,002.60
Questions about this part
The kit includes one EasyIP 10 Camera, one EasyIP Mixer, and one preconfigured EasyIP Switch.
The kit includes one EasyIP 10 Camera, one EasyIP Mixer, and one preconfigured EasyIP Switch.
Can I use this kit for Dante audio integration?
Yes, the EasyIP Mixer includes a 4x4 Dante Audio matrix with a 10x10 cross-point for scalable networked audio.
What cameras and microphones are compatible with this system?
The system is designed for EasyIP cameras and can pair with up to four EasyIP CeilingMIC D Dante microphones.
How do I control the EasyIP Mixer settings?
Control is available through several methods: RS232, Telnet, Trigger, USB, or the intuitive web-based user interface.
What are the output capabilities for video distribution?
The Mixer provides simultaneous 1080p/60 outputs via both USB 3.0 and HDMI for multipurpose distribution.
