ConferenceSHOT AV HD Conference Room System
Complete HD conferencing system for small to medium rooms featuring a 10x zoom PTZ camera, speaker, and TableMIC microphone
The Vaddio 999-99950-300W ConferenceSHOT AV is an all-in-one HD conferencing solution designed for small to medium-sized rooms. This system integrates a 10x zoom PTZ camera with an audio conferencing mixer into a single USB 3.0 device, simplifying deployment for BYOD environments. This specific bundle features white components, including the ConferenceSHOT AV camera, the ConferenceSHOT AV speaker, and one TableMIC microphone. It is designed for easy plug-and-play functionality with major UCC soft clients like Microsoft Teams, Zoom, and Google Meet, making it a significant upgrade over standard webcam technology. The system is UVC compliant, eliminating the need for external drivers on a PC. For enterprise deployments, the camera supports remote monitoring and management via a built-in browser-based user interface, allowing for IP-live preview and setup from PCs, Macs, or mobile devices including Android and iOS. The PTZ camera provides a 74° wide-angle to 7.6° tele field of view, powered via PoE+.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | Camera: 5.5" (145 mm) Speaker: 6.75" (171 mm) |
| Height | Camera: 6.3" (163 mm) Speaker: 3.63" (92 mm) |
| Operating Temperature | 32° to 104°F (0° to 40°C) |
| Product Weight | 5.07 lbs (2.3 kg) |
| Shipping Dimensions | 28" x 13" x 18" (711.2 x 330.2 x 457.2 mm) |
| Shipping Weight | 14 lbs (6.4 kg) |
| Width | Camera: 6.1" (155 mm) Speaker: 7.25" (184 mm) |
| 3rd Party Control | Telnet |
All other specifications 39
| Audio Type | MicrophoneMixers and IO DevicesSpeaker |
| Browser-based User Interface for Remote Control | Built-in |
| Camera Type | PTZ |
| Color | White |
| Compatible With | Vaddio |
| Control Method | IR RemoteJoystickTelnetTouch ScreenWeb UI |
| Estimated Room Size | Medium RoomSmall Room |
| Field of View | 74° Wide End to 7.6° Tele End |
| Field of View Wide | Greater than 70 |
| Focus System | AutoManual |
| Gain | AutoManual |
| Image Sensor Type | 1-2_8 Exmor CMOS |
| Input Ports | EasyMICNetworkUSB 3.0 |
| Invertible | Yes |
| Manufacturer | Vaddio |
| Max Resolution | 1080p 60 |
| Microphones | One Table Microphone |
| Minimum Illumination | 0.4 Lux (F1.6) |
| OneLINK Compatibility | No |
| Output Ports | AudioIP StreamingNetworkUSB 3.0 Type B |
| Pan and Tilt Range | Tilt: +90· to -30°Pan: ±162° |
| Pan and Tilt Speed | 0.35°/sec - 90°/sec |
| Pixels | 2.14 Megapixel |
| Power Cord | US Cord |
| Power Supply | PoE+ |
| Power Type | PoE+ |
| Preset Positions | 16 Custom Home Position |
| PTZ Motors | Stepper Motors |
| Quick-Connect Compatibility | No |
| Signal Type | AudioIP StreamingUSB 2.0USB 3.0 |
| Solution Type | Conference Room System |
| Speaker | ConferenceSHOT AV Speaker |
| TAA Compliant | YesYes |
| Tri-Sync Motion | No |
| UPC | 840077505271 |
| White Balance | AutoManualOne Push |
| Zoom | 10x |
| Certifications | CECertified for Barco ClickShare ConferenceFCCTAAUL Listed |
| Warranty | 3 years |
Resources
You'll need these with it

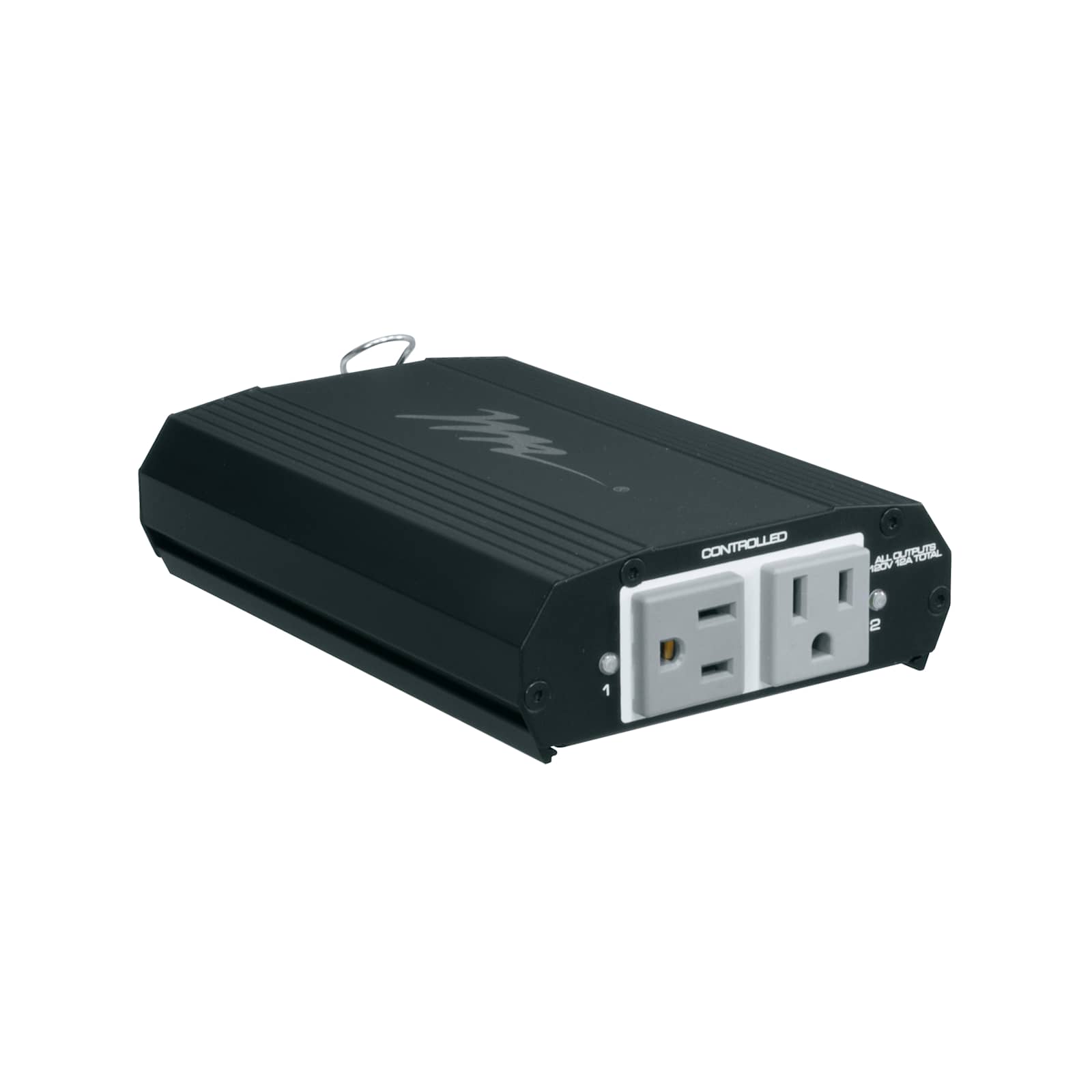

Select Series PDU with RackLink™, 2 Outlet
RLNK-215$429.30

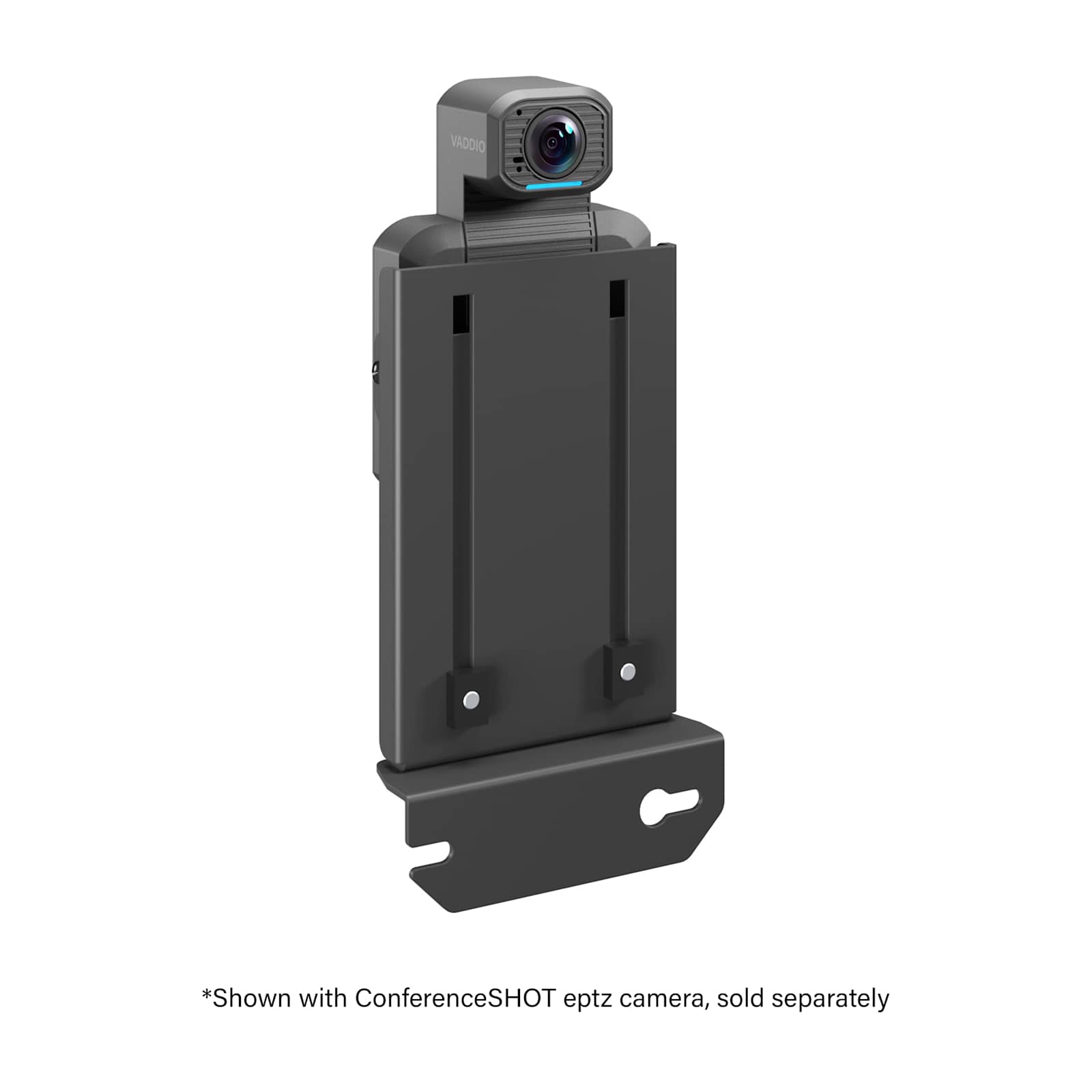

Above/Below ConferenceSHOT ePTZ Camera Mount for Large Displays
PAC800K$116.00
Suspended Ceiling Mount for Vaddio Cameras
535-2000-206$141.30
Vaddio Device Controller
999-42300-000$855.00
CeilingMIC Microphone
999-85100-000$641.70
TableMIC Microphone
999-85000-000$570.60

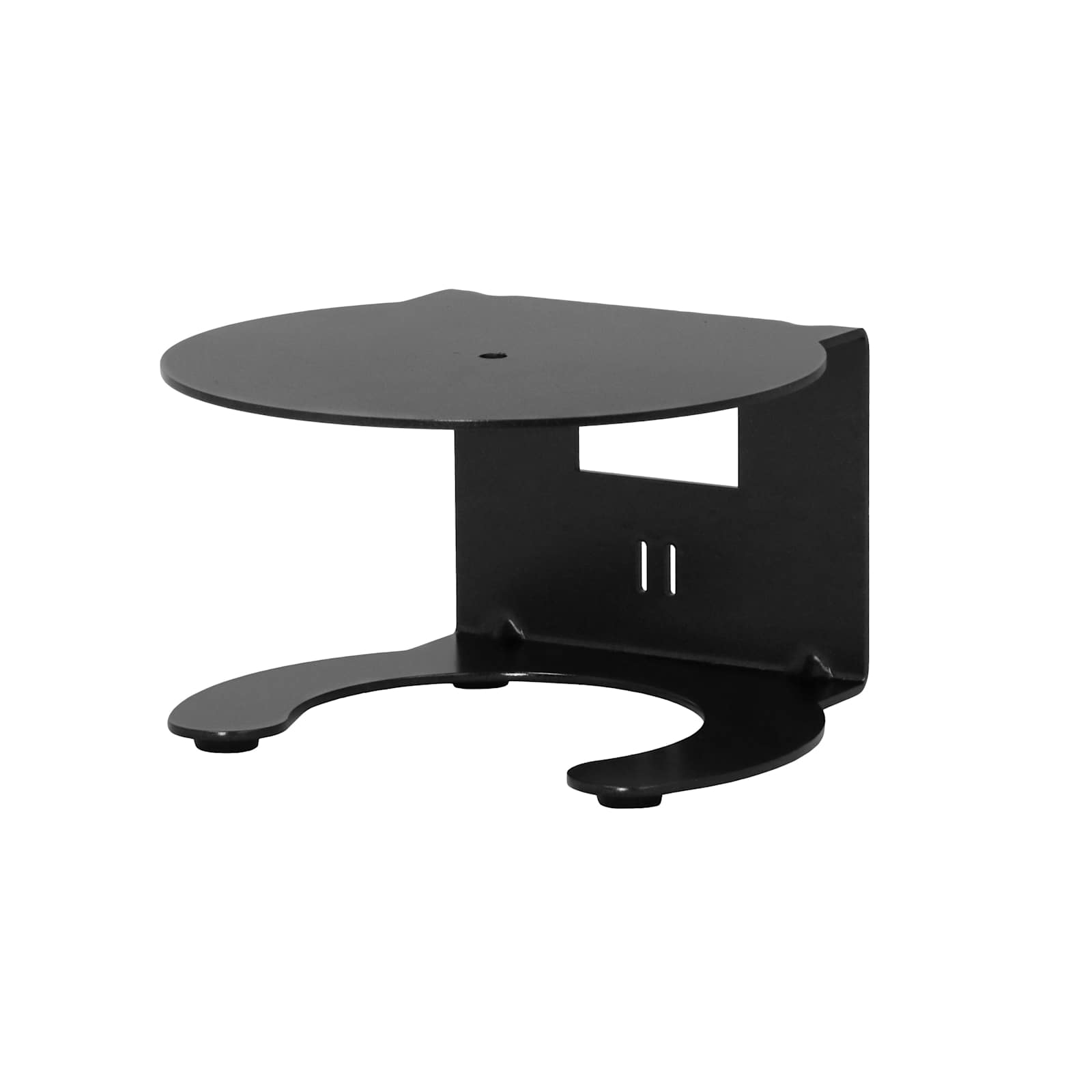

ConferenceSHOT AV Table Mount
999-89995-000$184.50

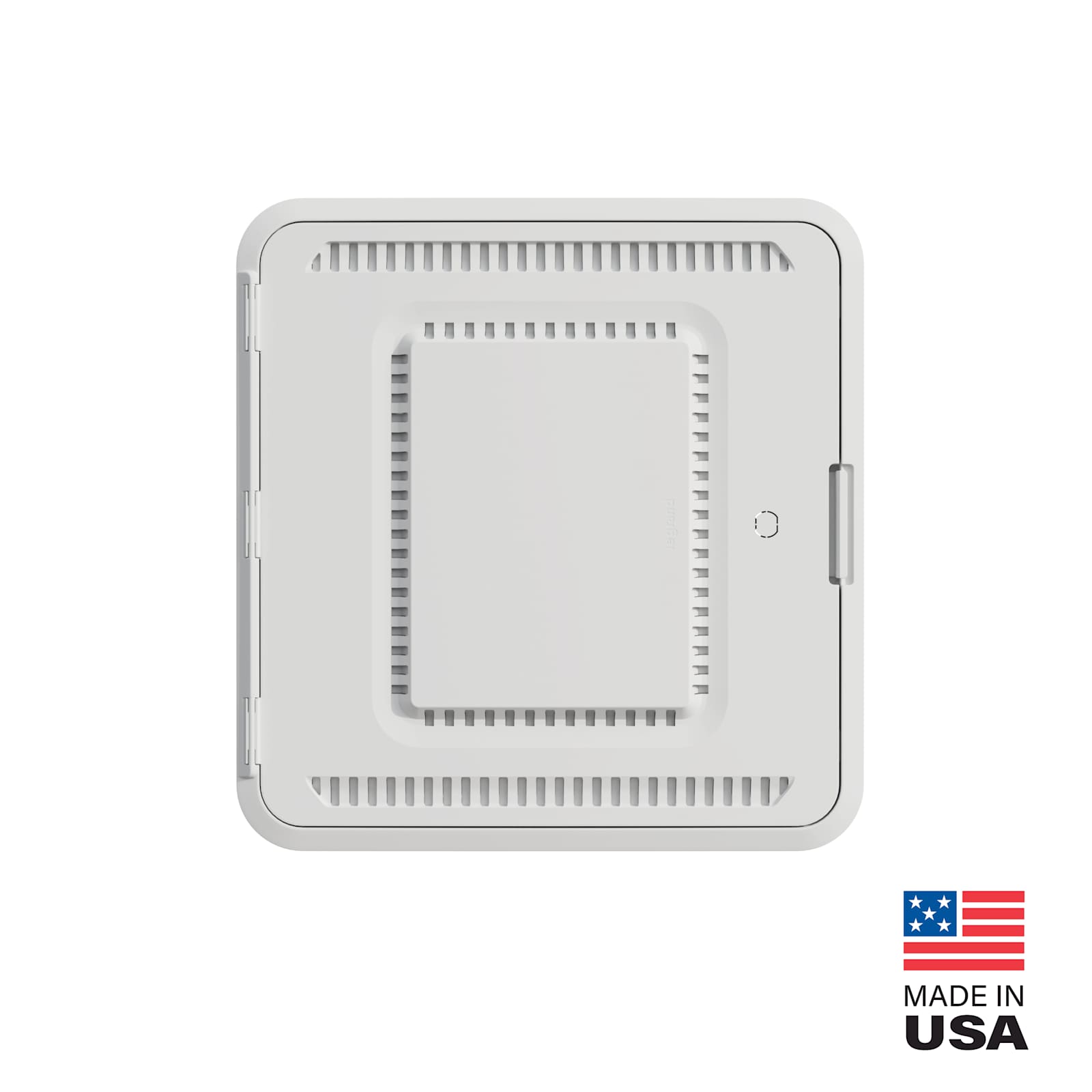

15-Inch Plastic Enclosure with Deep Trim-Ring and Hinged Door
ENP1550DNA$69.99

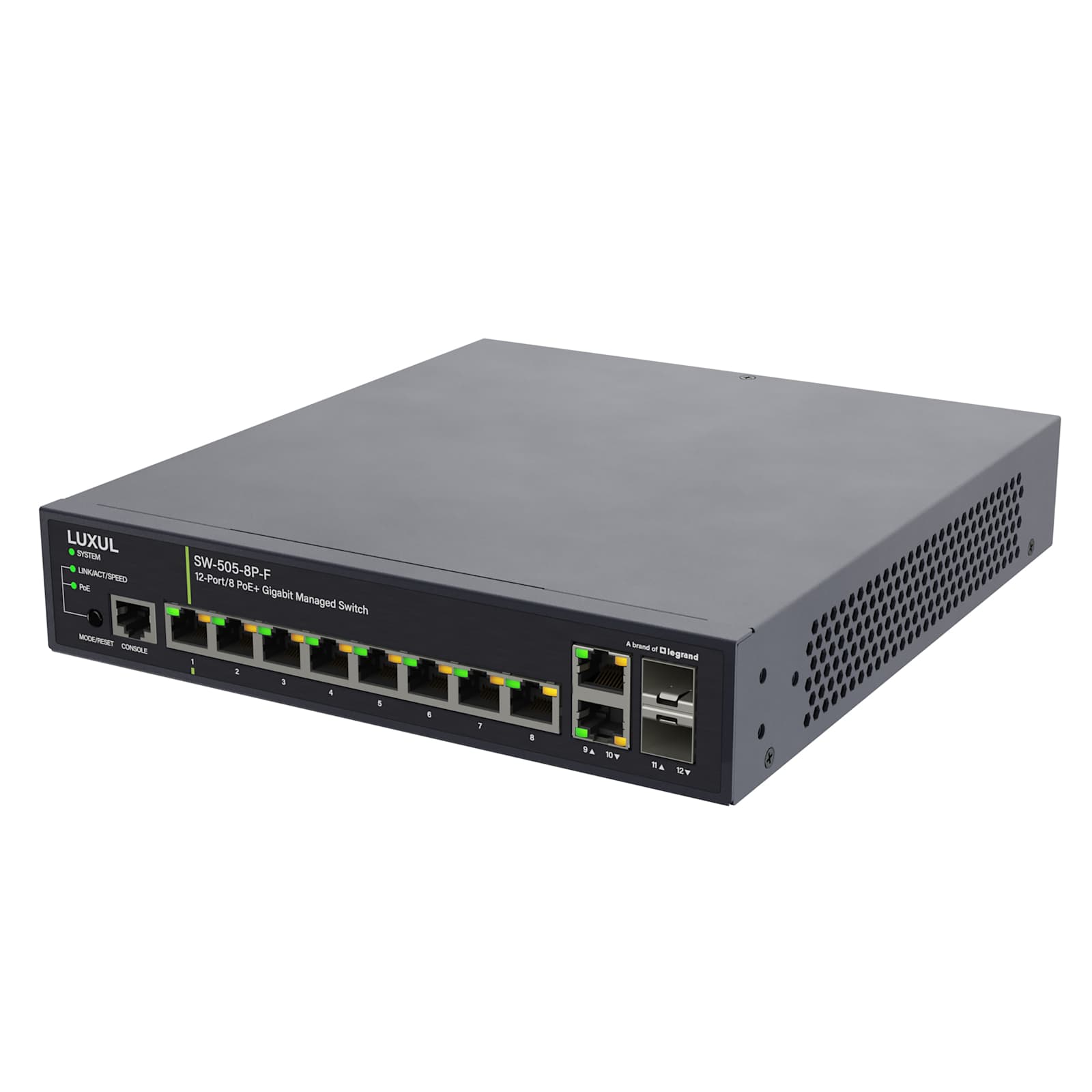

8 PoE+ | 2 RJ45 | 2 SFP Front-Facing Ports - 1Gb L2/L3 Managed Switch, US Power Cord
SW-505-8P-F$657.00

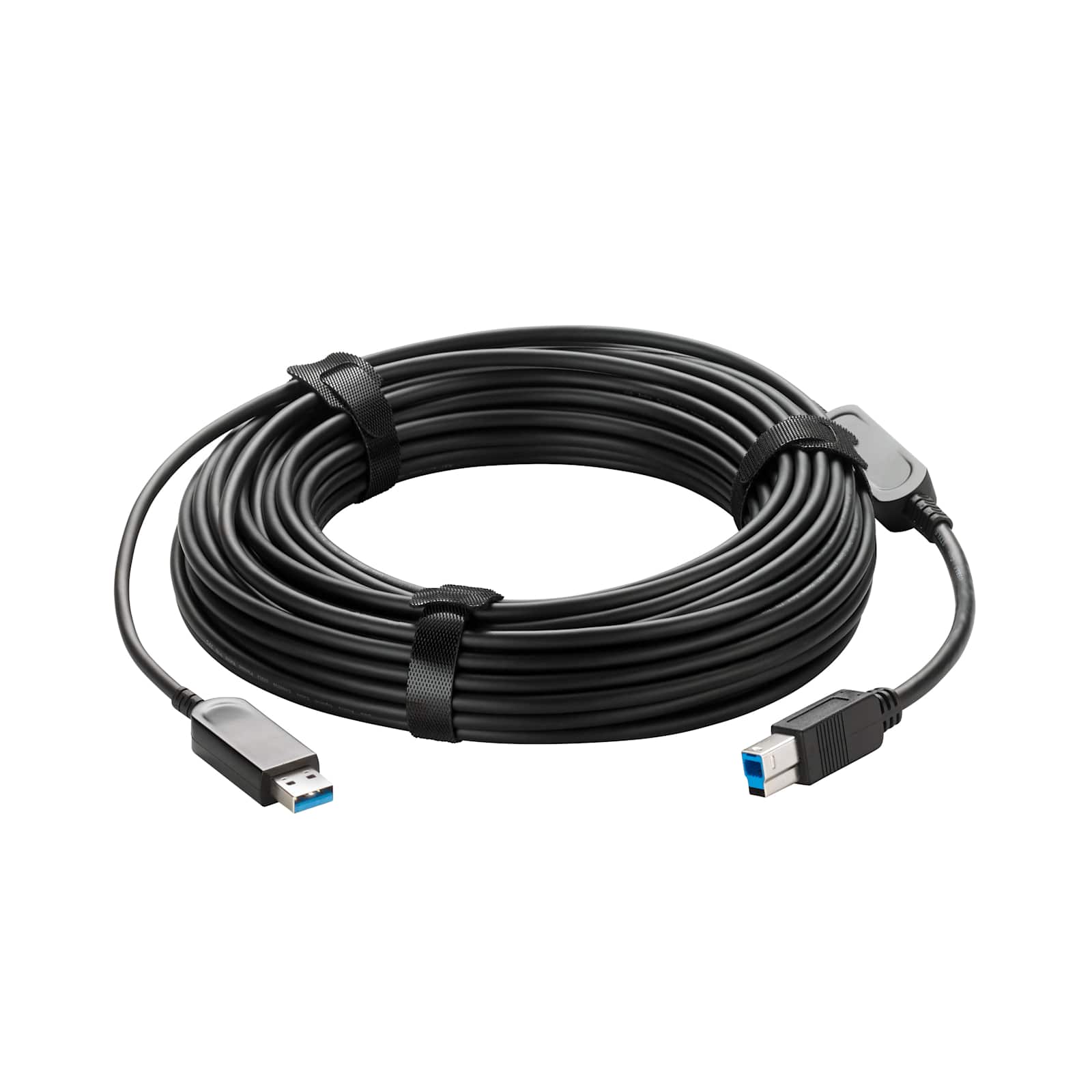

USB 3.2 Gen 2 Type B to Type A Active Optical Cable Plenum from Vaddio
440-1015-015$632.70

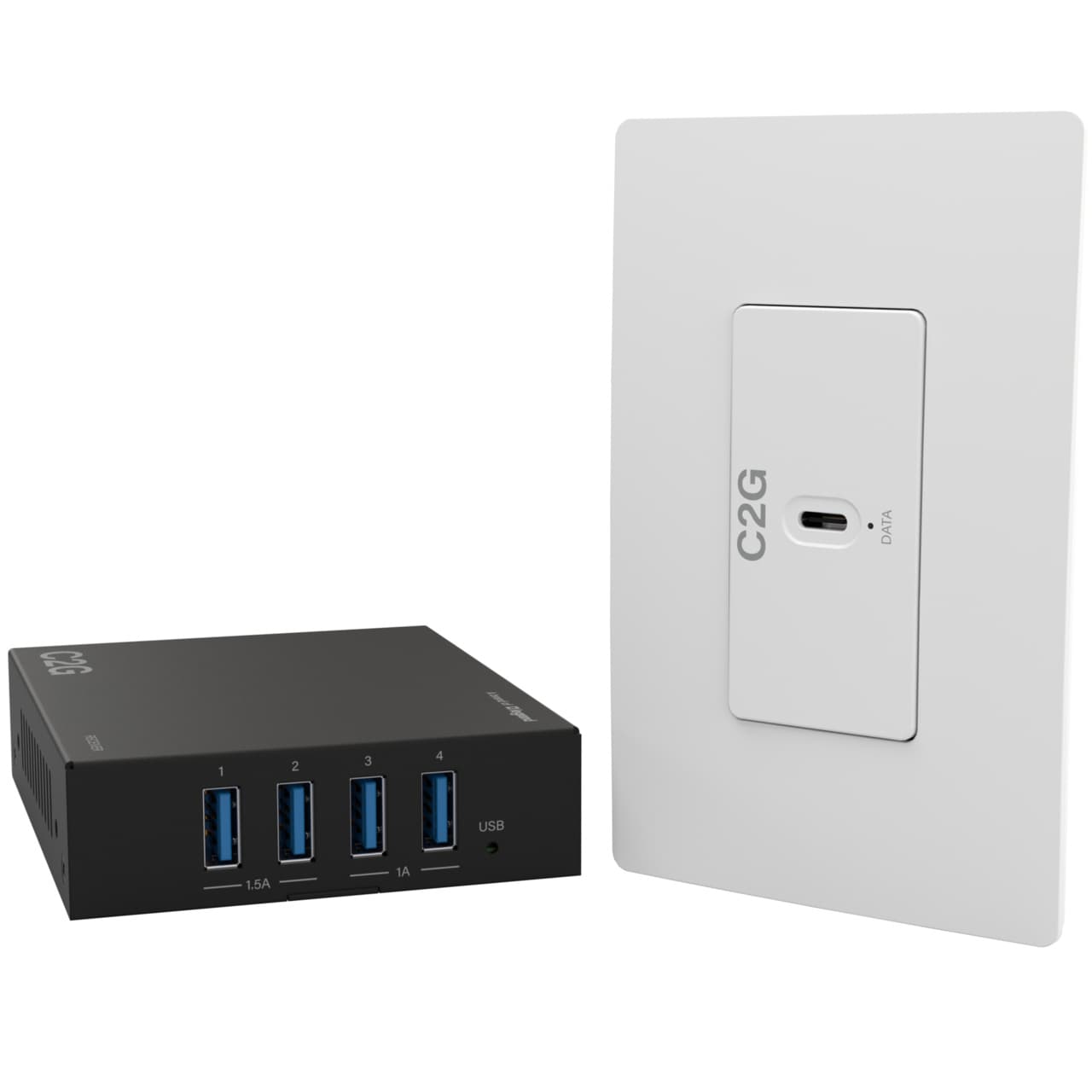

Superbooster® 1-Port USB over Cat6a Wall Plate to 4-Port USB-Box Extender Kit - USB 3.2 Gen1 (5Gbps)
C2G54269$752.99
Vaddio IR Remote Commander with audio controls
998-2102-000Discontinued
Verified fitment
Questions about this part
What is included in the 999-99950-300W bundle?
This package includes the white ConferenceSHOT AV camera, white speaker, one white TableMIC, a PoE+ Midspan Power Injector with US AC cord, a white thin-profile wall mount with hardware, an IR Remote Commander, and necessary cables (USB 3.0, 6.5 inch power/audio, and quick-start cards).
Will this system work with Microsoft Teams or Zoom?
Yes, the system is UVC compliant and offers plug-and-play functionality with all major UCC soft clients, including Microsoft Teams, Google Meet, and Zoom, without requiring external drivers.
How is the camera controlled in a professional installation?
The ConferenceSHOT AV supports multiple control methods, including an IR Remote Commander, a Joystick, Telnet, a Touch Screen, or a built-in Web UI for browser-based remote management.
Can I mount the camera on a wall or ceiling?
This SKU includes a thin-profile white wall mount. For other mounting options, you may consider the Vaddio ConferenceSHOT AV Table Mount (999-89995-000) or a suspended ceiling mount.
What are the power requirements for the ConferenceSHOT AV?
The system is powered via PoE+ (Power over Ethernet), and this bundle includes a PoE+ Midspan Power Injector to provide power through the network connection.
