ConferenceSHOT AV HD Conference Room System
Complete HD PTZ camera and audio conferencing system for small to medium rooms, featuring a 10x zoom camera and integrated audio mixer

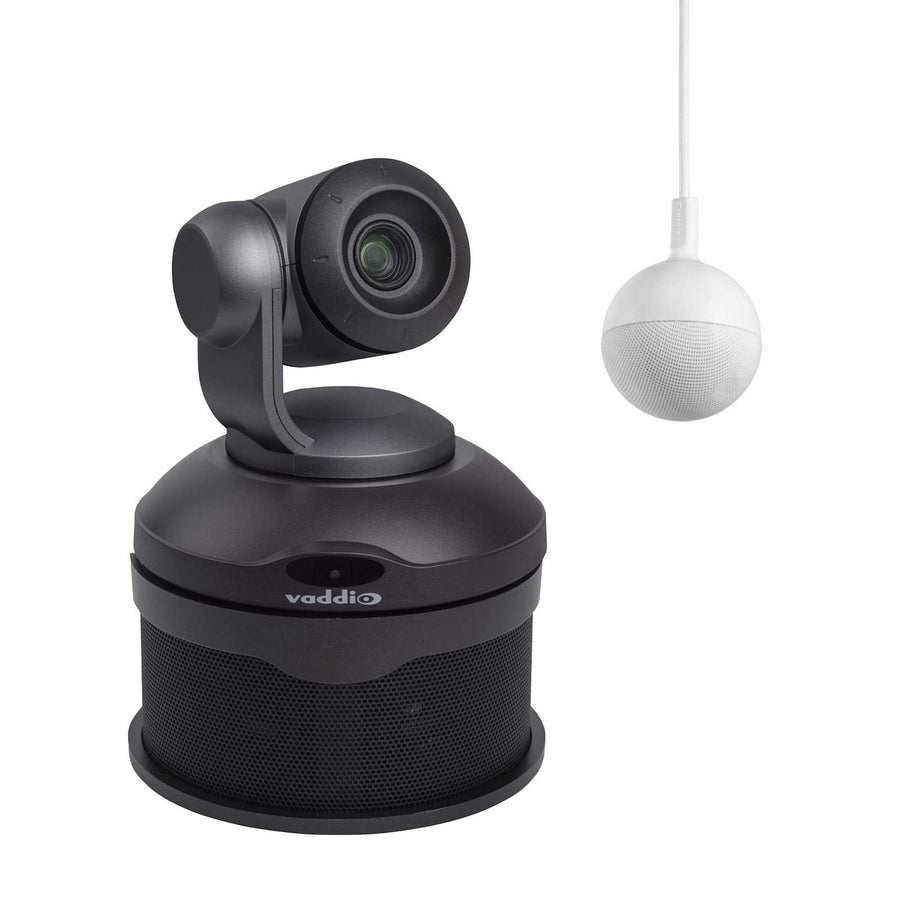

The ConferenceSHOT AV HD Conference Room System 999-99950-100B provides a unified video conferencing solution for small to medium-sized rooms. This bundle integrates a 10x zoom HD PTZ camera with an audio conferencing mixer into a single USB 3.0 device. This simplification allows installers to connect up to two microphones and an external speaker directly to the camera, reducing cable clutter and complexity. It is UVC compliant for plug-and-play functionality with major UCC soft clients including Microsoft Teams, Zoom, Webex, and Google Meet. This specific bundle includes a black ConferenceSHOT AV camera, a black ConferenceSHOT AV speaker, a white CeilingMIC, and a black thin profile wall mount with all necessary installation hardware. Power is provided via PoE+ through a included Midspan Power Injector. The system supports remote monitoring and management through a browser-based user interface, allowing control via a PC, Mac, or mobile device using Web UI, Telnet, or an IR remote. It is a TAA compliant solution designed to elevate BYOD conferencing performance above standard webcam technology.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 5.5 in (14 cm) |
| Height | 6.3 in (16 cm) |
| Operating Temperature | 32° to 104°F (0° to 40°C) |
| Product Weight | 3 lbs (1.4 kg) |
| Shipping Dimensions | 28" x 13" x 27" (711.2 x 330.2 x 685.8 mm) |
| Shipping Weight | 24 lbs (10.9 kg) |
| Width | 6.1 in (15.5 cm) |
| 3rd Party Control | Telnet |
All other specifications 39
| Audio Type | MicrophoneMixers and IO DevicesSpeaker |
| Browser-based User Interface for Remote Control | Built-in |
| Camera Type | PTZ |
| Color | Black |
| Compatible With | Vaddio |
| Control Method | IR RemoteJoystickTelnetTouch ScreenWeb UI |
| Estimated Room Size | Medium RoomSmall Room |
| Field of View | 74° Wide End to 7.6° Tele End |
| Field of View Wide | Greater than 70 |
| Focus System | AutoManual |
| Gain | AutoManual |
| Image Sensor Type | 1-2_8 Exmor CMOS |
| Input Ports | EasyMICNetworkUSB 3.0 |
| Invertible | Yes |
| Manufacturer | Vaddio |
| Max Resolution | 1080p 60 |
| Microphones | One Ceiling Microphone |
| Minimum Illumination | 0.4 Lux (F1.6) |
| OneLINK Compatibility | No |
| Output Ports | AudioIP StreamingNetworkUSB 3.0 Type B |
| Pan and Tilt Range | Tilt: +90· to -30°Pan: ±162° |
| Pan and Tilt Speed | 0.35°/sec - 90°/sec |
| Pixels | 2.14 Megapixel |
| Power Cord | US Cord |
| Power Supply | PoE+ |
| Power Type | PoE+ |
| Preset Positions | 16 Custom Home Position |
| PTZ Motors | Stepper Motors |
| Quick-Connect Compatibility | No |
| Signal Type | AudioIP StreamingUSB 2.0USB 3.0 |
| Solution Type | Conference Room System |
| Speaker | ConferenceSHOT AV Speaker |
| TAA Compliant | Yes |
| Tri-Sync Motion | No |
| UPC | 840077506353 |
| White Balance | AutoManualOne Push |
| Zoom | 10x |
| Certifications | CECertified for Barco ClickShare ConferenceFCCTAAUL Listed |
| Warranty | 3 years |
Resources
You'll need these with it
Select Series PDU with RackLink™, 2 Outlet
RLNK-215$429.30
Above/Below ConferenceSHOT ePTZ Camera Mount for Large Displays
PAC800K$116.00
CeilingMIC Microphone
999-85100-000$641.70
ConferenceSHOT AV Table Mount
999-89995-000$184.50
TableMIC Microphone
999-85000-000$570.60

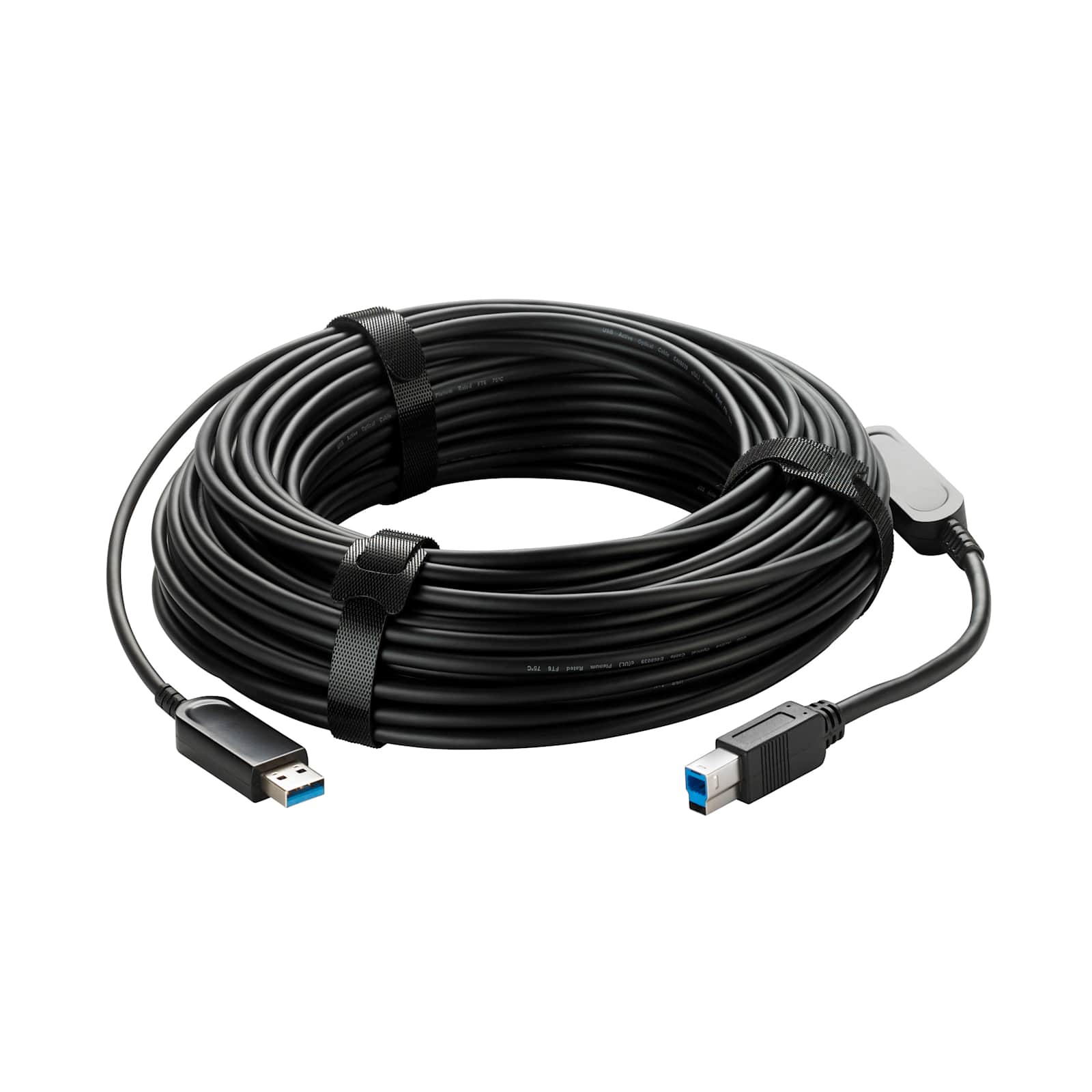

USB 3.2 Gen 2 Type B to Type A Active Optical Cable Plenum from Vaddio
440-1015-030$856.80
Superbooster® 1-Port USB over Cat6a Wall Plate to Box Extender Kit - USB 3.2 Gen1 (5Gbps)
C2G54267$681.99
Superbooster® 1-Port USB over Cat6a Box to Box Extender Kit - USB 3.2 Gen1 (5Gbps)
C2G54266$681.99
Superbooster® 1-Port USB over Cat6a Wall Plate to 4-Port USB-Box Extender Kit - USB 3.2 Gen1 (5Gbps)
C2G54269$752.99
Superbooster® 1-Port USB over Cat6a Wall Plate to Wall Plate Extender Kit - USB 3.2 Gen1 (5Gbps)
C2G54268$681.99
Superbooster® 4-Port USB over Cat6a Extender Kit - USB 3.2 Gen1 (5Gbps)
C2G54265$766.99
Superbooster® 2X4 USB Over Cat6a Extender Switch - USB 3.2 GEN1 (5Gbps)
C2G54262$835.99
Verified fitment
Questions about this part
What is included in the ConferenceSHOT AV 999-99950-100B bundle?
This package includes the black ConferenceSHOT AV camera, a black ConferenceSHOT AV speaker, one white CeilingMIC, a black thin profile wall mount with hardware, and a PoE+ Midspan Power Injector.
Which video conferencing software is compatible with this system?
The system is UVC compliant and provides plug-and-play functionality with major UCC soft clients such as Microsoft Teams, Google Meet, and Zoom.
How is the camera controlled in a distributed network?
The system supports remote monitoring and control via a browser-based user interface (Web UI), Telnet, or an IR remote commander.
What are the power requirements for installation?
The system is powered via PoE+ and the bundle includes a PoE+ Midspan Power Injector with an AC cord set.
Can I mount this camera on a table instead of a wall?
Yes, while this bundle includes a wall mount, the ConferenceSHOT AV is also compatible with the 999-89995-000 Table Mount.
