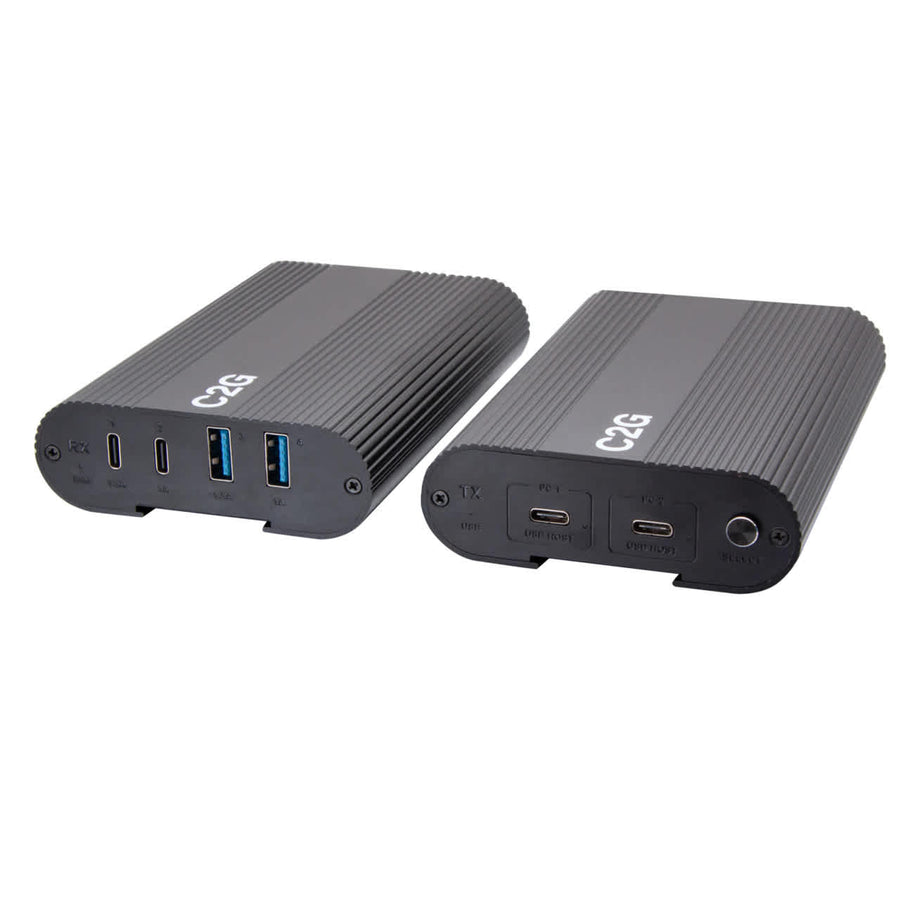

Superbooster® 2X4 USB Over Cat6a Extender Switch - USB 3.2 GEN1 (5Gbps)
USB 3.2 Gen1 2x4 extender switch supporting 5Gbps data rates over Cat6a up to 100m
The C2G54262 Superbooster® 2x4 USB Extender Switch manages high-speed USB 3.2 Gen1 signals, providing bidirectional data transmission at rates up to 5Gbps. Designed for professional AV environments like auditoriums, huddle rooms, and corporate spaces, this extender uses a single Cat6a U/FTP cable to bridge distances of up to 100m (328ft). It supports isochronous, bulk, interrupt, and control data transfer protocols, ensuring reliable performance for demanding peripherals. The system is backwards compatible with USB 2.0 and USB 1.1 devices. For professional camera integration, this switch provides RS-232 and FSYNC GPIO pass-through. The transmitter unit features auto-switching via USB 5V detection and manual switching modes to accommodate different workflow requirements. This plug-and-play solution requires no drivers or software for operation. The aluminum chassis houses a transmitter and receiver that both stand 1.1" (2.8cm) high.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Length | 4.82 in (12.2 cm) |
| Height | Transmitter: 1.1" (2.8cm), Receiver: 1.1" (2.8cm) |
| Max Distance Support | 100m |
| Operating Temperature | 32° to 104°F (0° to 40°C) |
| Operating Temperature Max | 104 Fahrenheit (40 Celsius) |
| Operating Temperature Min | 32 Fahrenheit (0 Celsius) |
| Shipping Weight | 1.08 lbs (0.5 kg) |
| Signal Transmission | Bidirectional |
All other specifications 17
| Storage Temperature Max | 140 Fahrenheit (60 Celsius) |
| Storage Temperature Min | -4 Fahrenheit (-20 Celsius) |
| Color | Black |
| Connector 1 | (1) DC Power Plug(1) RJ-45 Female(1) USB-C Female |
| Connector 2 | (1) DC Power Plug(1) RJ-45 Female(2) USB-A Female(2) USB-C Female |
| Federal Ops Country of Origin | Taiwan |
| Material | Aluminum |
| Number of Ports | 4 |
| Power Supply | AC Adapter |
| Product Type | Extender |
| Special Features | Data Transfer Protocol: Isochronous, Control, Interrupt, and BulkNumber of Tiers Occupied: 2 |
| TAA Compliant | Yes |
| Technology Specifications | USB 3.2 |
| UPC | 757120542629 |
| Certifications | CEFCCProp 65REACHRoHSTAA |
| Data Transfer Rate | 5 GBPS |
| Warranty | 5 years |
Resources
You'll need these with it
6.5ft (2m) USB-C® Male to USB-C Male Cable (20V 3A) - USB 3.2 Gen 1 (5Gbps)
C2G28883$42.99
15ft (4.6m) Cat6a Snagless Unshielded UTP Ethernet Network Patch Cable - Blue
CG00701$25.99
3ft (0.9m) USB-C to C 3.2 Gen 1 (5Gbps) Male to Female Extension Cable
CG28656$28.99
6ft (1.8m) USB 3.0 (USB 3.2 Gen 1 (5Gbps) USB-C to USB-B Cable M/M - Black
CG28866$29.99
10ft (3m) Cat6a Snagless Unshielded UTP Ethernet Network Patch Cable - Blue
CG00698$15.99
3ft (0.9m) Cat6a Snagless Unshielded UTP Ethernet Network Patch Cable - Black
CG00725$11.99
3.3 ft (1m) USB-C 3.2 (Gen 2) Male to Male Cable (20V 5A)
CG28848$40.99
1.5ft (0.46m) USB-C® Male to USB-A Male Cable - USB 3.2 Gen 1 (5Gbps)
C2G28876$16.99
7ft (2.1m) Cat6a Snagless Unshielded UTP Ethernet Network Patch Cable - Black
CG00729$14.99
10ft (3m) Cat6a Snagless Shielded STP Ethernet Network Patch Cable - Black
CG00715$25.99
Questions about this part
Will the C2G54262 work with my PTZ camera or webcam?
Yes, it supports USB 3.2 Gen1 peripherals like PTZ cameras, webcams, and microphones, and includes RS-232 and FSYNC GPIO pass-through for professional camera control.
What type of cabling is required for the 100m extension?
This extender requires a single Cat6a U/FTP cable to reach the maximum 100m (328ft) distance at 5Gbps.
Does this unit require software installation for setup?
No, it is a plug-and-play device that requires no drivers, downloads, or specialized software to operate.
What is the difference between the switching modes on the transmitter?
The transmitter supports two modes: auto-switching based on USB 5V detection and a manual switching mode for user-controlled selection.
Is this extender TAA compliant?
Yes, the C2G54262 is TAA compliant and is manufactured in Taiwan.
