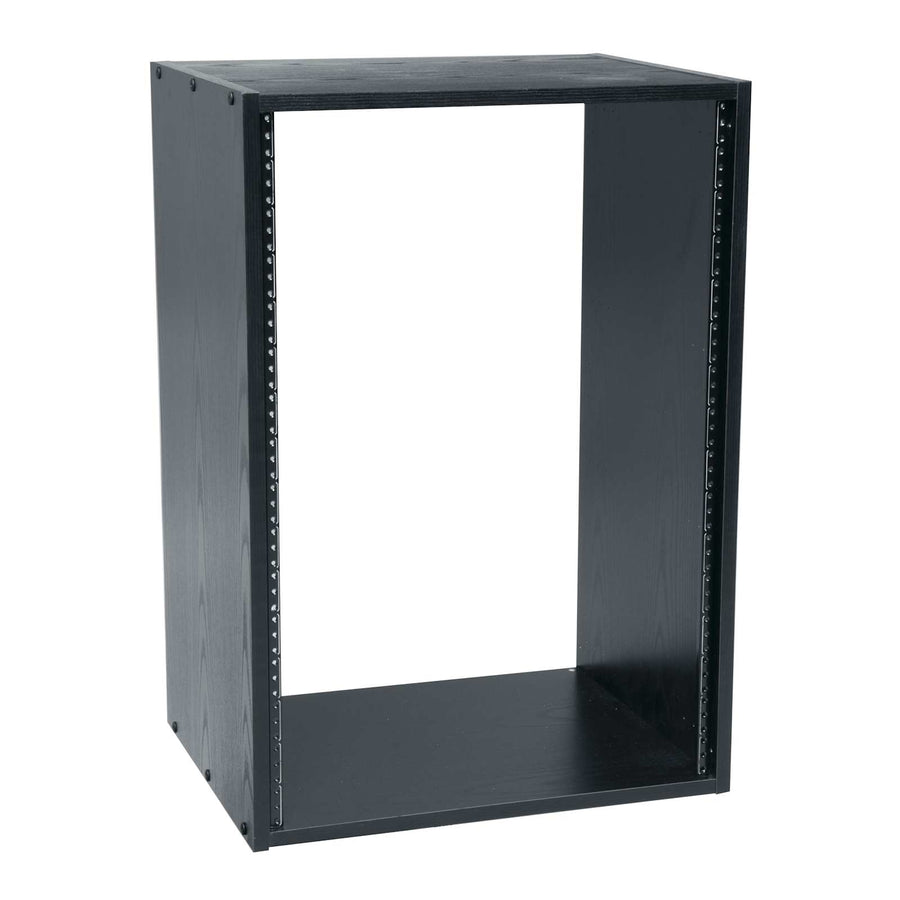

BRK Series Black Laminate Rack - BRK20
20 RU wood grain laminate rack with a 200 lbs weight capacity and knockdown design for flat shipping
The Middle Atlantic BRK20 is a 20 RU wood grain laminate rack designed for versatile AV equipment storage and organization. This knockdown rack features a black wood grain finish and is constructed from wood. It is designed for easy assembly and arrives as a knockdown system to allow for efficient flat shipment via UPS. The unit features 10-32 threaded front rackrails, providing a secure foundation for mounted equipment. This rack offers a usable height of 35 in (88.9 cm) and a usable depth of 17.41 in (44.2 cm) to accommodate a variety of professional components. With a total width of 20.4 in (51.8 cm) and a weight capacity of 200 lbs (90.7 kg), it serves as a stable housing for standard rack-mounted gear.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Depth | 17.91 in (45.5 cm) |
| Height | 36.48 in (92.7 cm) |
| Rack Units | 20 RU |
| Usable Depth | 17.41 in (44.2 cm) |
| Usable Height | 35 in (88.9 cm) |
| Weight Capacity | 200 lbs (90.7 kg) |
| Width | 20.4 in (51.8 cm) |
| Finish | Black Wood Grain |
| Material | Wood |
| Rack Rail Type | 10-32 |
| Rack Type | Knockdown |
| UPC | 656747002748 |
Resources
You'll need these with it
Select Series PDU with RackLink™, 2 Outlet
RLNK-215$429.30
USC Universal Sequencing Controller 1 Space Sequencing Controller
USC-6R$1,044.90
MPR Module 15A, Controlled Stand-Alone
RLM-15-1CA$288.00
MPR Power Module 30A, L5-30R Twistlock
RLM30-L530-1$763.20
MPR Power Module 20A, L5-20R Twistlock
RLM30-L520-1$716.40
MPR Module 20A, Controlled Stand-Alone
RLM-20-1CA$306.00
Rackmount Power, 6 Outlet Control, 9 Outlet, 15A, & 2-Stage Surge Protection
PDC-915R-6$462.60
Rackmount Power, 2 Outlet Control, 9 Outlet, 15A, & 2-Stage Surge Protection
PDC-915R-2$462.60
NEXSYS™ 2 Outlet, 15 Amp Compact Power with Series Surge Protection
PDX-215C-SP$423.90
NEXSYS™ 9 Outlet, 20 Amp Rackmount Power with Multi-Stage Surge Protection
PDX-920R$433.80
3 RU Rack Vent Panel, Slotted with 20% Open Area
VTP-3$69.30
Questions about this part
What is the usable space inside the BRK20?
The BRK20 provides a usable height of 35 in (88.9 cm) and a usable depth of 17.41 in (44.2 cm).
Does the BRK20 require special tools for assembly?
The unit is a knockdown design that is easily assembled with the included hardware.
What equipment can I mount in this rack?
This rack is compatible with various accessories, including Select Series PDUs with RackLink™ (RLNK-215) and Wide Unit Shelf Systems (WUSS17-5).
Is the BRK20 TAA compliant?
Yes, the BRK20 is TAA compliant and listed with PEP certifications.
How much weight can the BRK20 hold?
The rack has a total weight capacity of 200 lbs (90.7 kg).
