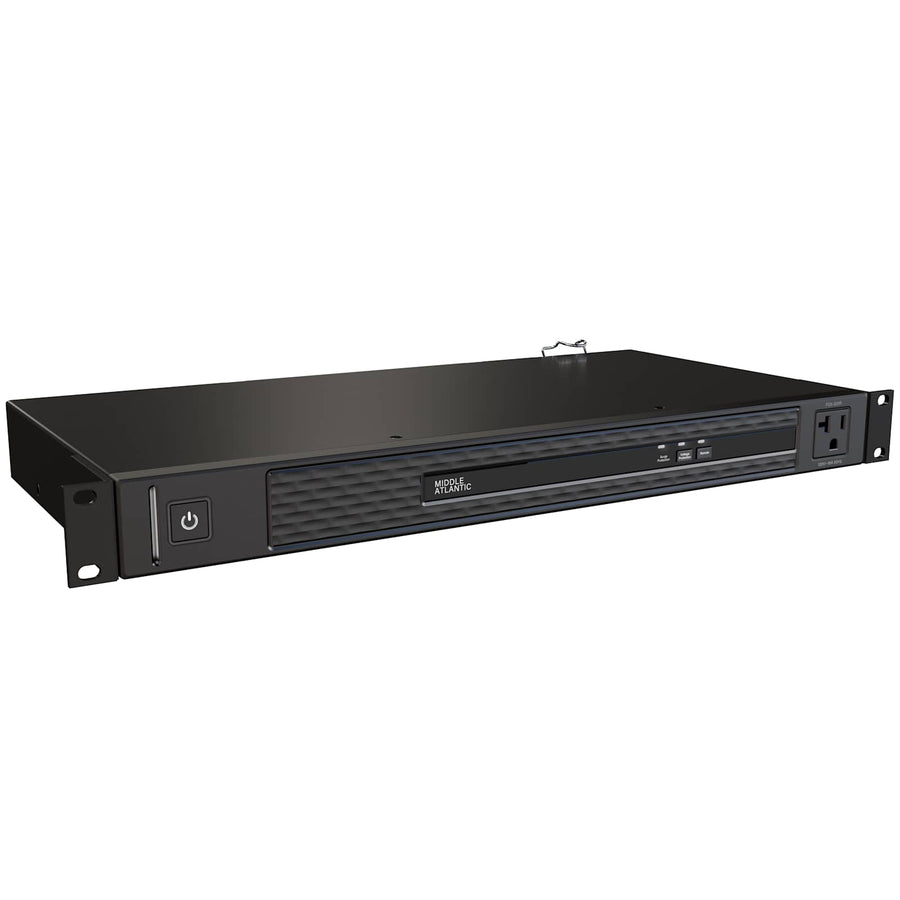

NEXSYS™ 9 Outlet, 20 Amp Rackmount Power with Multi-Stage Surge Protection
20 Amp 1RU rackmount PDU with 9 NEMA 5-20R outlets and multi-stage surge protection
The NEXSYS PDX-920R is a 1RU rackmount power distribution unit engineered specifically for professional AV environments. This 20 Amp PDU features 9 NEMA 5-20R receptacles and is built with multi-stage MOV surge protection to defend sensitive electronics from voltage spikes. The unit includes a standard 9 ft (2.7 m) cord with a NEMA 5-20P plug for reliable connectivity. For installers managing remote infrastructure, the PDX-920R supports remote notification of surge status via contact closure, allowing for proactive monitoring of power health. To assist with field troubleshooting and convenience, the front panel includes a dedicated outlet. The unit is designed to automatically disconnect outlets during over or under voltage events to prevent equipment damage and will automatically restore power once the voltage returns to the acceptable range. Visual indicators on the front panel provide immediate status of the surge protection system.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| AC Voltage Input | 120 VAC |
| AC Voltage Output | 120 VAC |
| Amps | 20 Amp |
| Cord Length | 9 ft (2.7 m) |
| Depth | 8.75 in (22.2 cm) |
| Height | 1.75 in (4.4 cm) |
| Rack Units | 1 RU |
| Shipping Weight | 10.85 lbs (4.9 kg) |
All other specifications 13
| Width | 19 in (48.3 cm) |
| Control Type | Contact Closure |
| Isolated Ground | No |
| Outlet Count | 9 |
| Plug Type | NEMA 5-20P |
| Receptacle Type | NEMA 5-20R |
| Special Features | NEXSYS PDU |
| Surge Protection Type | Multi-Stage MOV |
| TAA Compliant | No |
| UPC | 656747396250 |
| Certifications | UL Listed |
| Patents | www.legrandav.com/patents |
| Warranty | 3 years |
Resources
Questions about this part
Will the PDX-920R protect my equipment from voltage spikes?
Yes, this PDU utilizes 3 stages of multi-stage MOV surge protection to shield your hardware from electrical transients.
How does the PDX-920R handle over or under voltage events?
If a voltage event occurs, the PDU automatically turns the outlets off to protect equipment and will automatically restore power once the voltage returns to the acceptable range.
Can I monitor the surge protection status remotely?
The PDX-920R supports remote notification of surge status through its contact closure control type.
What is the electrical capacity and plug type for this PDU?
This is a 20 Amp unit featuring a NEMA 5-20P plug and 9 NEMA 5-20R receptacles.
What documentation is available for submittals?
You can download the NEXSYS Rackmount PDU A&E Specification Sheet or the CAD Technical Specification Drawings from the resources section.
