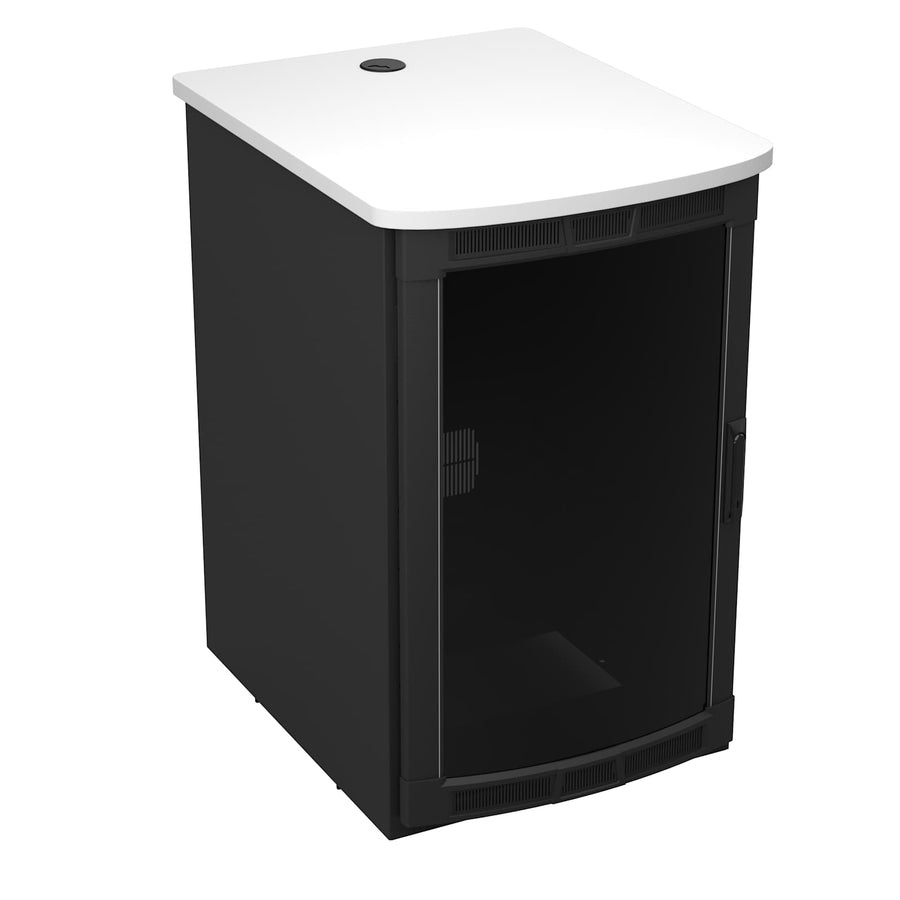

BGR-25SA27MDK-D8 Rolling Presentation Rack with Designer White Top
25 RU mobile AV rack with a Designer White HPL top, featuring Forward Rackrail and a 1100 lbs UL load capacity
The BGR-25SA27MDK-D8 is a 25 RU mobile presentation rack from the Middle Atlantic BGR-MDK Series that blends professional-grade hardware with furniture-style aesthetics. This rolling steel enclosure features a Designer White high-pressure laminate (HPL) wood laminate top, making it suitable for environments where a standard black rack would be visually intrusive. It is built with a 23" width, providing extra lateral space for front-to-back cable management or the installation of small devices using Lever Lock™ mounting. This unit is engineered for adaptability using the Forward Rackrail system. This design allows installers to use Forward blank panels, vent panels, and both horizontal and vertical cable management to optimize internal airflow and organization. The rack includes a skirted wheelbase with leveling feet for stability on uneven surfaces, a curved plexiglass front door, and a rear door with cable entry access. For high-security or high-traffic environments, it features 25mm x 150mm swing handles. This TAA compliant, UL Listed mobile rack is a robust solution for mobile AV deployments requiring a clean, integrated appearance.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 31.35 in (79.6 cm) |
| Height | 50 in (127 cm) |
| Panel Width | 19 in (48.3 cm) |
| Product Weight | 189 lbs (85.7 kg) |
| Rack Units | 25 RU |
| Shipping Weight | 207 lbs (93.9 kg) |
| UL Load Capacity | 1100 lbs (499 kg) |
| Usable Depth | 24.4 in (62 cm) |
All other specifications 16
| Usable Height | 43.75 in (111.1 cm) |
| Width | 24.5 in (62.2 cm) |
| Color | Designer White |
| Federal Ops Country of Origin | USA |
| Finish | Black Wrinkle Powder Coat |
| Forward Compatible | Yes |
| Front Door | Yes |
| Handles | 25mm x 150mm Swing Handle |
| Material | Steel |
| Monitor Mounting | Yes |
| Rack Rail Type | Forward Rackrail |
| Rear Door | Yes |
| TAA Compliant | Yes |
| UPC | 656747402647 |
| Wood Laminate Top | Yes |
| Certifications | TAAUL Listed |
Resources
You'll need these with it
Premium+ PDU With RackLink™, 9 Outlet 20A Series Protection Surge
RLNK-P920R-SP$2,318.40
USC Universal Sequencing Controller 1 Space Sequencing Controller
USC-6R$1,044.90
Select Series UPS Backup Power Systems - UPS-SRBP-500
UPS-SRBP-500$351.00
MPR Module 15A, Controlled Stand-Alone
RLM-15-1CA$288.00
Expansion Battery Pack, 1500VA
UPS-OLEBPR-2
MPR Power Module 30A, L5-30R Twistlock
RLM30-L530-1$763.20
MPR Power Module 20A, L5-20R Twistlock
RLM30-L520-1$716.40
MPR Module 20A, Controlled Stand-Alone
RLM-20-1CA$306.00
Rackmount Power, 6 Outlet Control, 9 Outlet, 15A, & 2-Stage Surge Protection
PDC-915R-6$462.60
Rackmount Power, 2 Outlet Control, 9 Outlet, 15A, & 2-Stage Surge Protection
PDC-915R-2$462.60
3 RU Rack Vent Panel, Slotted with 20% Open Area
VTP-3$69.30
2 RU Rack Vent Panel, Slotted with 20% Open Area
VTP-2$50.40
Questions about this part
Will this rack fit my specific equipment and cabling needs?
With a 23" width and Forward Rackrail system, this rack provides extra space for front-to-back cable management and allows for the installation of Forward vertical cable management products.
Can I mount a monitor on top of the rack?
Yes, the BGR-25SA27MDK-D8 features a Designer White HPL wood laminate top specifically designed to accommodate video monitors.
What is the load capacity for this mobile rack?
The BGR-25SA27MDK-D8 is UL Listed with a load capacity of 1100 lbs (499 kg).
What is the difference between this and other BGR-MDK series racks?
This SKU is a 25 RU version with a Designer White top; other models in the series vary by rack unit height and color finishes like Asian Night or Walnut Heights.
Which documents are available for submittals?
Technical submittals can be supported using the BGR MDK Series Revit Models, CAD Technical Specification Drawings, or the VisioBlocks program files.
