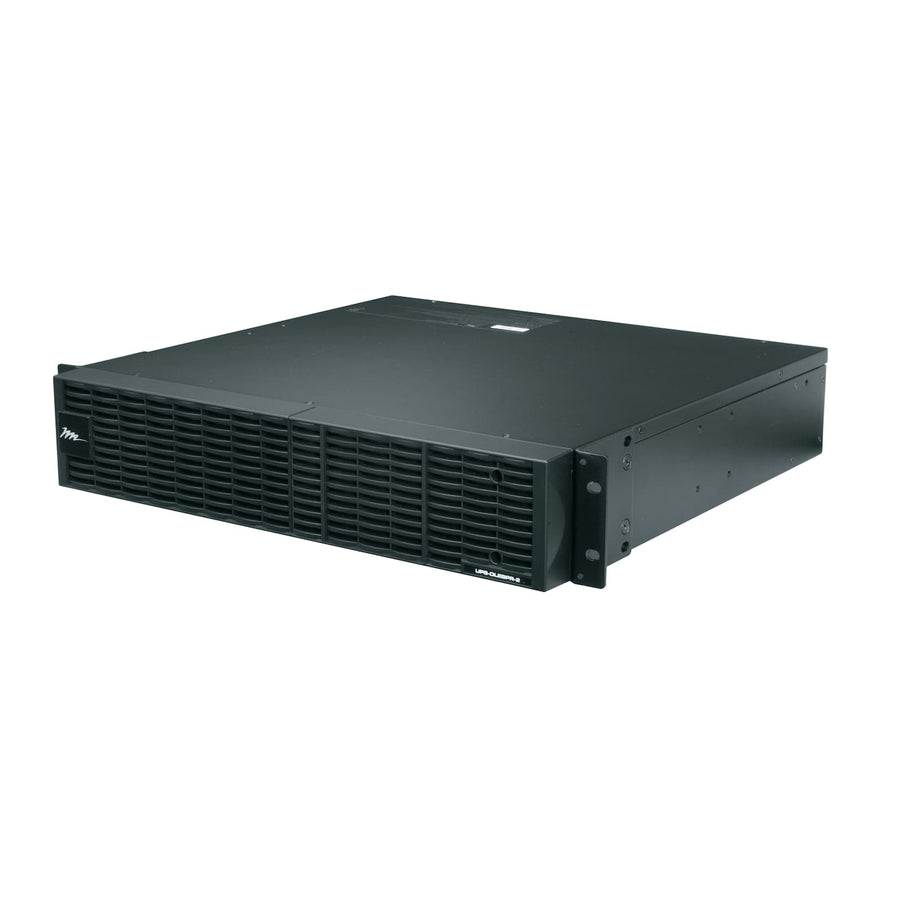

Expansion Battery Pack, 1500VA
1500VA expansion battery pack providing additional runtime for the UPS-OL1500R Premium Online Series UPS
The UPS-OLEBPR-2 is an expansion battery pack designed to increase the runtime of the UPS-OL1500R model within the Premium Online Series UPS Backup Power Systems. This 1500VA unit is intended for mission-critical, high-end systems that require a completely isolated pure sine wave output and double conversion topology to ensure maximum uptime and protection from power noise. For installers looking to extend system endurance, this pack can be daisy-chained with up to 10 other expansion battery packs to achieve the longest possible runtime for this specific form factor. Maintenance is simplified through front-accessible batteries, which are required to keep the system operational. Note that this specific SKU is currently listed as pending obsolescence, and the suggested replacement is the UPX-EXPANRUN-OL15.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Depth | 15.57 in (39.6 cm) |
| Height | 3.46 in (8.8 cm) |
| Shipping Weight | 65.5 lbs (29.7 kg) |
| VA Rating | 1500VA |
| Width | 19 in (48.3 cm) |
| TAA Compliant | No |
| UPC | 656747272608 |
| Certifications | FCCUL Listed |
Resources
Questions about this part
Which UPS model is the UPS-OLEBPR-2 compatible with?
This expansion battery pack is designed to provide additional runtime specifically for the UPS-OL1500R model of Premium Online Series UPS Backup Systems.
How many expansion battery packs can I connect in a series?
You can daisy-chain up to 10 battery expansion packs to achieve the longest runtime available within this form factor.
What replacement batteries do I need for this unit?
This unit requires one (1) UPS-OLRBP-3 and one (1) UPS-OLRBP-4 replacement battery packs.
Is there a replacement for the UPS-OLEBPR-2?
This product is currently pending obsolescence; the manufacturer suggests the UPX-EXPANRUN-OL15 as the replacement.
Can I access the batteries for maintenance easily?
Yes, the Premium Online Series expansion units feature front-accessible batteries to simplify maintenance and service.
