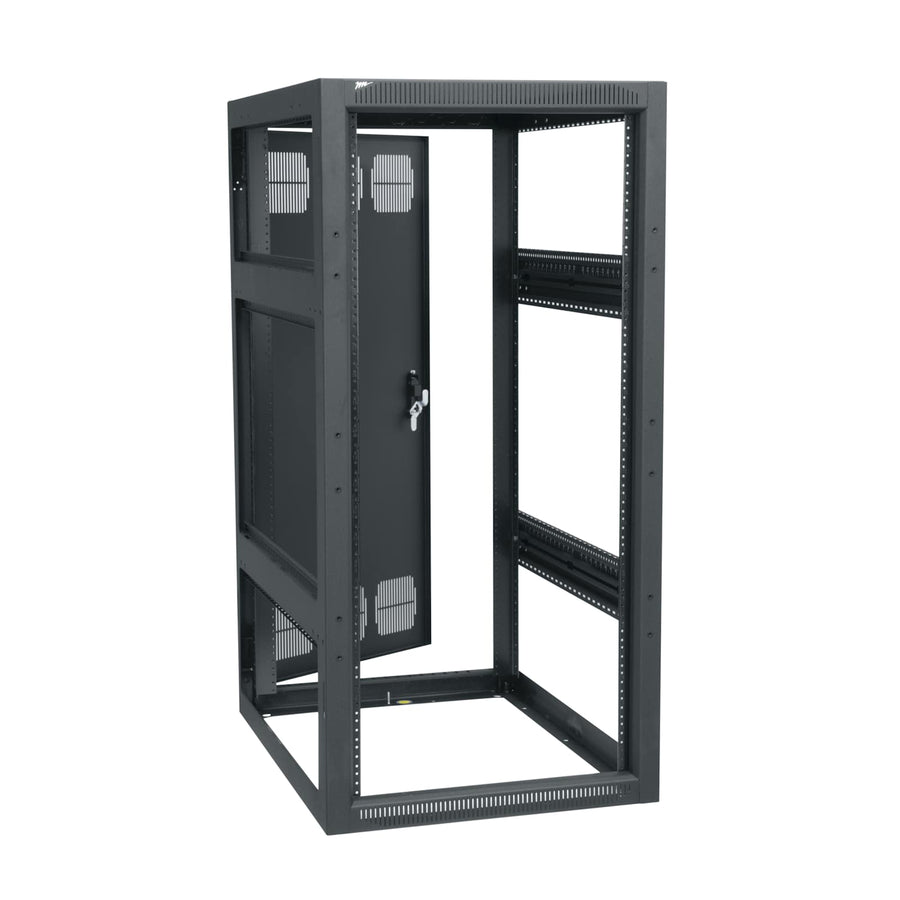

25 RU BGR Series Rack, 27 Inches Deep
25 RU floor-standing rack, 27 in (68.6 cm) depth, seismic rated with 3000 lbs UL load capacity and TAA compliance
The Middle Atlantic BGR-2527 is a high-strength 25 RU floor-standing rack designed for professional AV integration. Featuring a 27 in (68.6 cm) depth and 23 in (58.4 cm) width, this steel frame provides a 24.4 in (62 cm) usable depth and 43.88 in (111.5 cm) usable height. Engineered for rapid deployment, it is the first Forward Compatible rack, supporting the Lever Lock™ system for tool-free cable management accessories. This BGR series model includes a standard vented rear door that can be upgraded with a brush grommet kit for large cable passage. The Forward rackrail design features adjustable front and rear rails with numbered spaces and side lacing to optimize internal cabling. For high-demand environments, this frame is seismic rated with a seismic load capacity of 1175 lbs (533 kg) and carries a UL load capacity of 3000 lbs (1,360.8 kg). It is TAA compliant, HCAI (formerly OSHPD) certified (OPM-0444-13), and ASCE listed.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 27 in (68.6 cm) |
| Height | 47.88 in (121.6 cm) |
| Panel Width | 19 in (48.3 cm) |
| Rack Units | 25 RU |
| Shipping Weight | 112 lbs (50.8 kg) |
| UL Load Capacity | 3000 lbs (1,360.8 kg) |
| Usable Depth | 24.4 in (62 cm) |
| Usable Height | 43.88 in (111.5 cm) |
All other specifications 18
| Width | 23 in (58.4 cm) |
| Color | Black |
| Federal Ops Country of Origin | USA |
| Finish | Black Wrinkle Powder Coat |
| Forward Compatible | Yes |
| Gangable | Yes |
| Handles | 25mm x 150mm Swing Handle |
| Material | Steel |
| Product Configuration | Frame Only |
| Rack Rail Type | Forward Rackrail |
| Rear Door | Yes |
| Seismic Rated | Yes |
| TAA Compliant | Yes |
| UPC | 656747140167 |
| Certifications | ASCEHCAI (formerly OSHPD)TAAUL Listed |
| OSHPD Number | OPM-0444-13 |
| Patents | www.legrandav.com/patents |
| Seismic Load Capacity | 1175 lbs (533 kg) |
Resources
You'll need these with it
Caster Base for BGR Series
CBS-BGR$285.30
1 RU Mounting Rackshelf
UTR1$58.50
PDT Low Profile Vertical Power Strip, 16 Outlet, 20A
PDT-1620C-NS$351.90
Select Series PDU with RackLink™, 2 Outlet
RLNK-215$429.30
100 CFM Fan Panel, Textured
QTFP-2$243.00
Dual LED Work Light with Interconnect Cable
LT-CABUTL-DUAL$333.00
PDT Low Profile Vertical Power Strip, 16 Outlet, 15A
PDT-1615C-NS$308.70
100 CFM Fan Panel, Anodized
QFP-2$252.90
1 RU Fan Tray, 6 Fans, 414 CFM
FTA-6$701.10
115V Fan 4 1/2 Inch, 50 CFM at 30dBA
QFAN$136.80
PDT Low Profile Vertical Power Strip, 10 Outlet, 20A
PDT-1020C-NS$297.90
3 RU Rack Vent Panel, Slotted with 20% Open Area
VTP-3$69.30
Questions about this part
Will this rack fit my equipment depth requirements?
The BGR-2527 has a total depth of 27 in (68.6 cm) with a usable depth of 24.4 in (62 cm) for your active components.
Is this rack suitable for seismic environments?
Yes, this model is seismic rated with a seismic load capacity of 1175 lbs (533 kg) and is UL listed.
What accessories are needed for cable management?
This rack is Forward Compatible and accepts Lever Lock™ tool-free accessories, such as the VTP-3 3 RU Rack Vent Panel or various fan panels.
What is the load capacity for the BGR-2527?
This rack has a UL load capacity of 3000 lbs (1,360.8 kg) for heavy professional AV deployments.
Can I add cooling to this rack?
The standard vented rear door accepts optional fans, such as the QFAN 115V 4 1/2 Inch, 50 CFM fan, or a FTA-6 1 RU Fan Tray.
