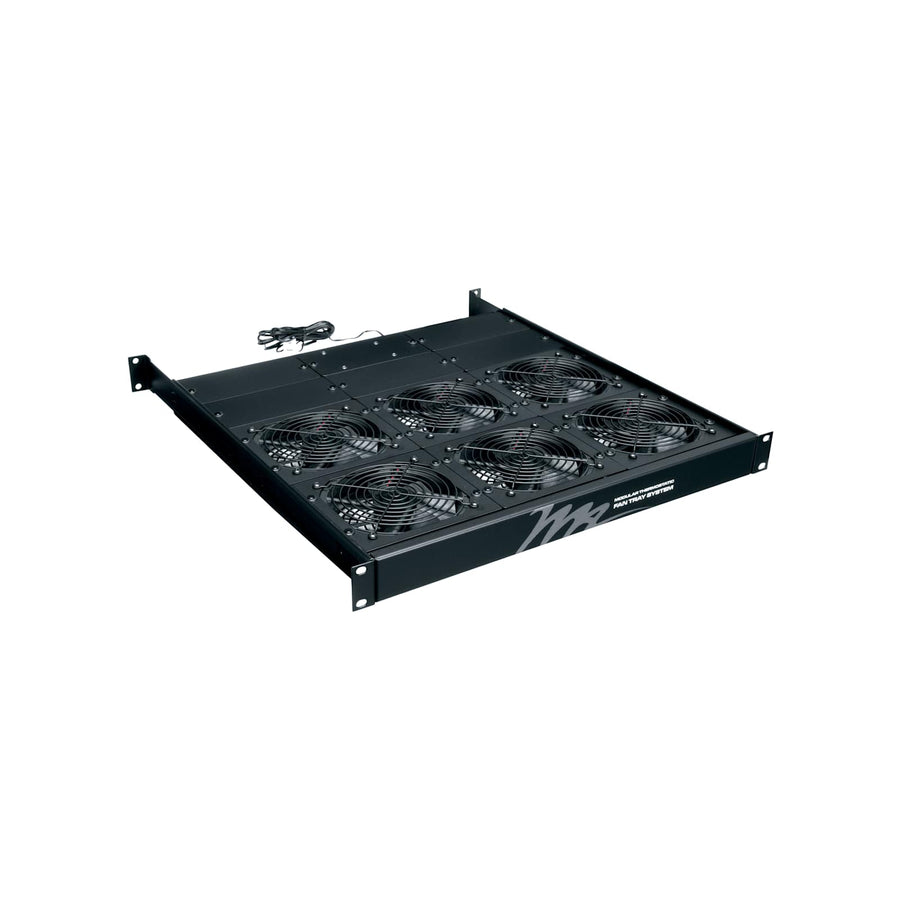

1 RU Fan Tray, 6 Fans, 414 CFM
1 RU active fan tray system providing 414 CFM of airflow and thermostatic control for rack cooling
The Middle Atlantic FTA-6 is a 1 RU active fan tray system designed to improve airflow by positioning fans directly above hot equipment vents. This system is engineered to help move hot air in the correct direction within rack cooling environments. This specific SKU is configured with 6 fans, providing a total airflow of 414 CFM. The system utilizes energy-saving thermostatic control to automatically manage the on/off cycles as needed for thermal management. The tray features a 19 in (48.3 cm) width and can be adjusted on mounting rails to suit the specific installation requirements. It supports a mounting depth range between 18 in and 32 in (762–813 mm). This active component type is powered by a single power cord and includes the necessary power supply and thermostatic controller. To increase airflow capacity, additional FT-FAN 4 Inch DC Fans can be added to the tray, allowing for a total of up to 8 fans.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| AC Voltage Input | 120 |
| CFM | 414 |
| Depth | 18.1 in (46 cm) |
| Height | 1.75 in (4.4 cm) |
| Mounting Depth Max | 32 in (81.3 cm) |
| Mounting Depth Min | 18 in |
| Rack Units | 1 RU |
| Shipping Weight | 14.5 lbs (6.6 kg) |
All other specifications 8
| Volts DC | 12 VDC |
| Width | 19 in (48.3 cm) |
| Available Internationally | No |
| Component Type | Active |
| Manufacturer | Middle Atlantic |
| Mounting Points | 4 |
| Power Type | DC |
| UPC | 656747130069 |
Resources
You'll need these with it
Questions about this part
Can I add more fans to the FTA-6 tray?
Yes, you can add additional FT-FAN 4 Inch DC Fans to the tray, allowing for a maximum of 8 fans in total.
How does the thermostatic control work?
The included thermostatic controller manages power to the fans, providing energy-saving automatic on/off functionality based on temperature needs.
What is the required mounting depth for this fan tray?
The FTA-6 has an adjustable mounting range that accommodates a minimum depth of 18 in and a maximum depth of 32 in.
What is required to power the FTA-6 system?
The system is powered by a single power cord and includes the required power supply and thermostatic controller.
Does the FTA-6 include the fans in the package?
The FTA-6 SKU comes configured with 6 fans, but you can purchase additional FT-FAN fans to reach the maximum capacity of 8.
