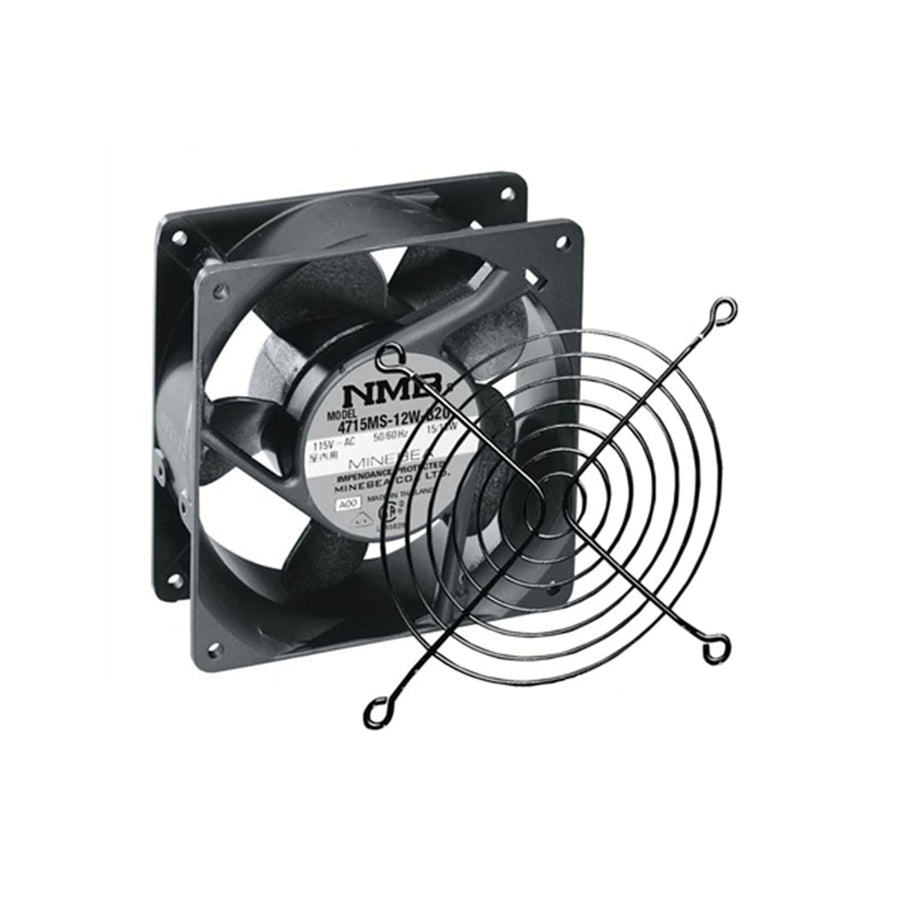

115V Fan 4 1/2 Inch, 50 CFM at 30dBA
4.5 inch active rack fan providing 50 CFM airflow at 30dBA for quiet thermal management
The Middle Atlantic QFAN is a 4.5 inch (11.4 cm) active fan designed for rack-based thermal management. Operating on 120 VAC, this unit delivers 50 CFM of airflow with a noise rating of < 30dBA. The fan features a smooth, ball-bearing design to ensure extra quiet operation during continuous use. This component is 1.5 in (3.8 cm) deep, with a physical footprint of 4.69 in (11.9 cm) in both height and width. For protection, the unit includes a black powder-coated fan guard. This TAA compliant accessory is an active component type that ships with the necessary mounting hardware and power cord required for installation. Because it is an active fan without a built-in controller, installers may choose to add a thermostatic controller like the FC-4-1CA to automate cooling based on temperature changes.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| CFM | 50 |
| Depth | 1.5 in (3.8 cm) |
| Fan Size | 4.5 in (11.4 cm) |
| Height | 4.69 in (11.9 cm) |
| Shipping Weight | 1.4 lbs (0.6 kg) |
| Volts AC | 120 VAC |
| Width | 4.69 in (11.9 cm) |
| Available Internationally | No |
All other specifications 5
| Component Type | Active |
| Fan Controller Included | No |
| Manufacturer | Middle Atlantic |
| Power Type | AC |
| UPC | 656747034251 |
Resources
You'll need these with it
Questions about this part
What can I use to automate this fan with a temperature sensor?
You can pair this fan with a thermostatic fan controller, such as the FC-4-1CA or the FC-2-215-1CA, to manage airflow based on thermal loads.
Does this fan include a controller?
No, the QFAN is an active fan component that does not include an integrated fan controller.
Is this product TAA compliant?
Yes, the QFAN is TAA compliant for government and specialized procurement requirements.
What is included for installation with the QFAN?
Each unit comes with a fan guard, the necessary mounting hardware, and a power cord.
Is this fan suitable for low-noise environments?
Yes, the ball-bearing design is engineered for quiet operation, specifically rated at < 30dBA at 50 CFM.
